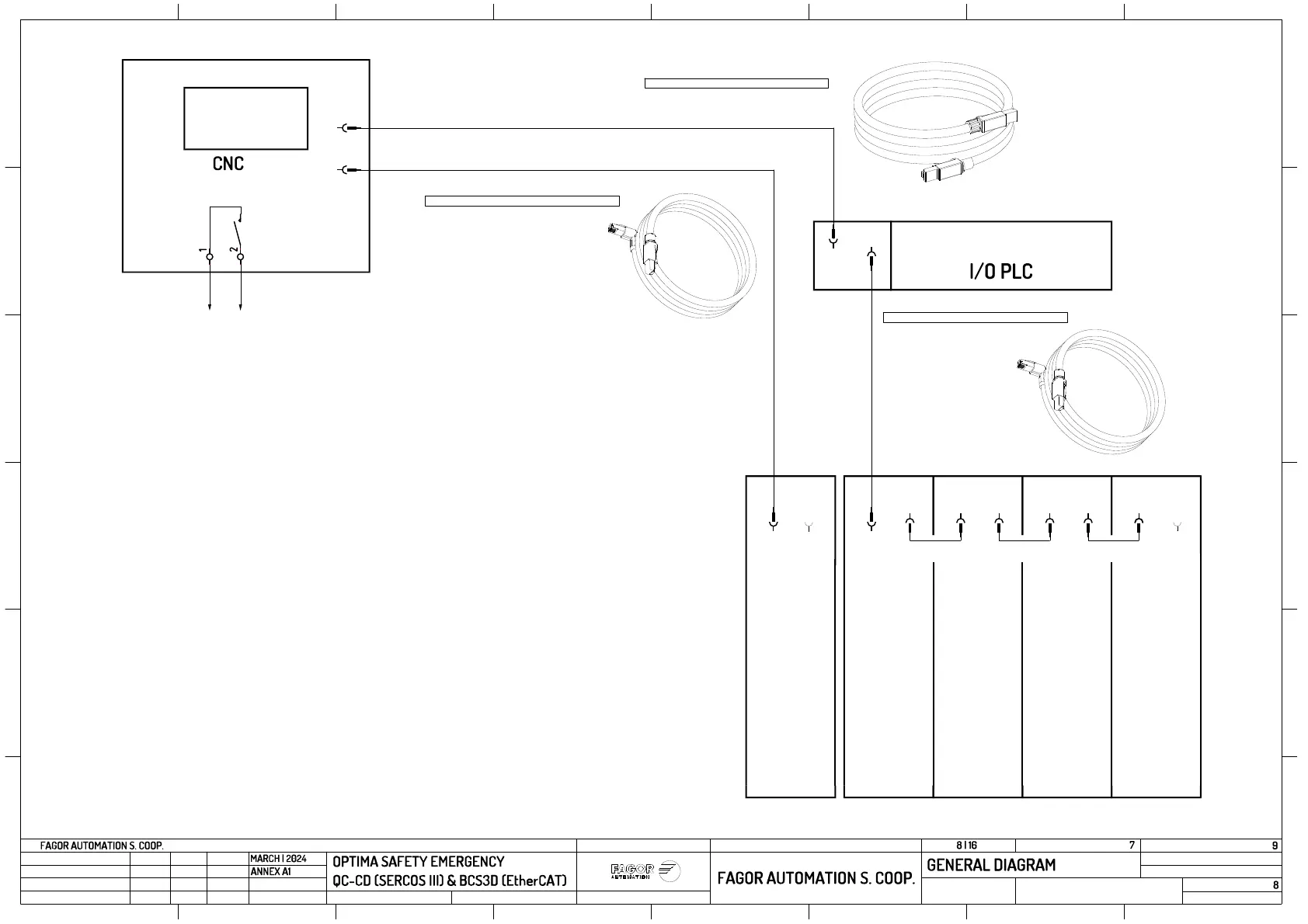

Fagor BCS3D - Page 42

Date Previous:
Next:
Sheet Nr:
L. Mod.
Chapter
Verif.
Standard
F
E
D
C
B
A
12345678
BSC-EC-0.3
6/5D 6/5D
107 109
X27
Y-AXIS
BCS3D-xDEA-FS02
Z-AXIS
BCS3D-xDEA-FS02
UPON REQUEST. EtherCAT CABLE
CN3
CN4
CN3
CN4
CN3
CN4
B64
BSC-EC-X 0.3, 05, 10, 15 m
BLUE
elite
FAGOR CNC
X-AXIS
BCS3D-xDEA-FS02
IEC
B10B B10A
S-SPINDLE
QC-CD-021-FS2
B10
SERCOS III BUS
QC-FBC-X 1 ... 7 m
QC-FBC-FLEX-X 10 ... 100 m
GREEN
UPON REQUEST. SERCOS III CABLE
BSC-EC-0.3
ECAT-CABLE-X 0.3 ... 7 m
ECAT-CABLE-FLEX-X 10 ... 100 m
UPON REQUEST. EtherCAT CABLE
YELLOW
IN
OUT
CNC FAGOR OK
A-AXIS
BCS3D-xDEA-FS02
CN3
CN4
BSC-EC-0.3
RIOR-E-48I32O-FEEDBACK
EtherCAT BUS
EtherCAT BUS
