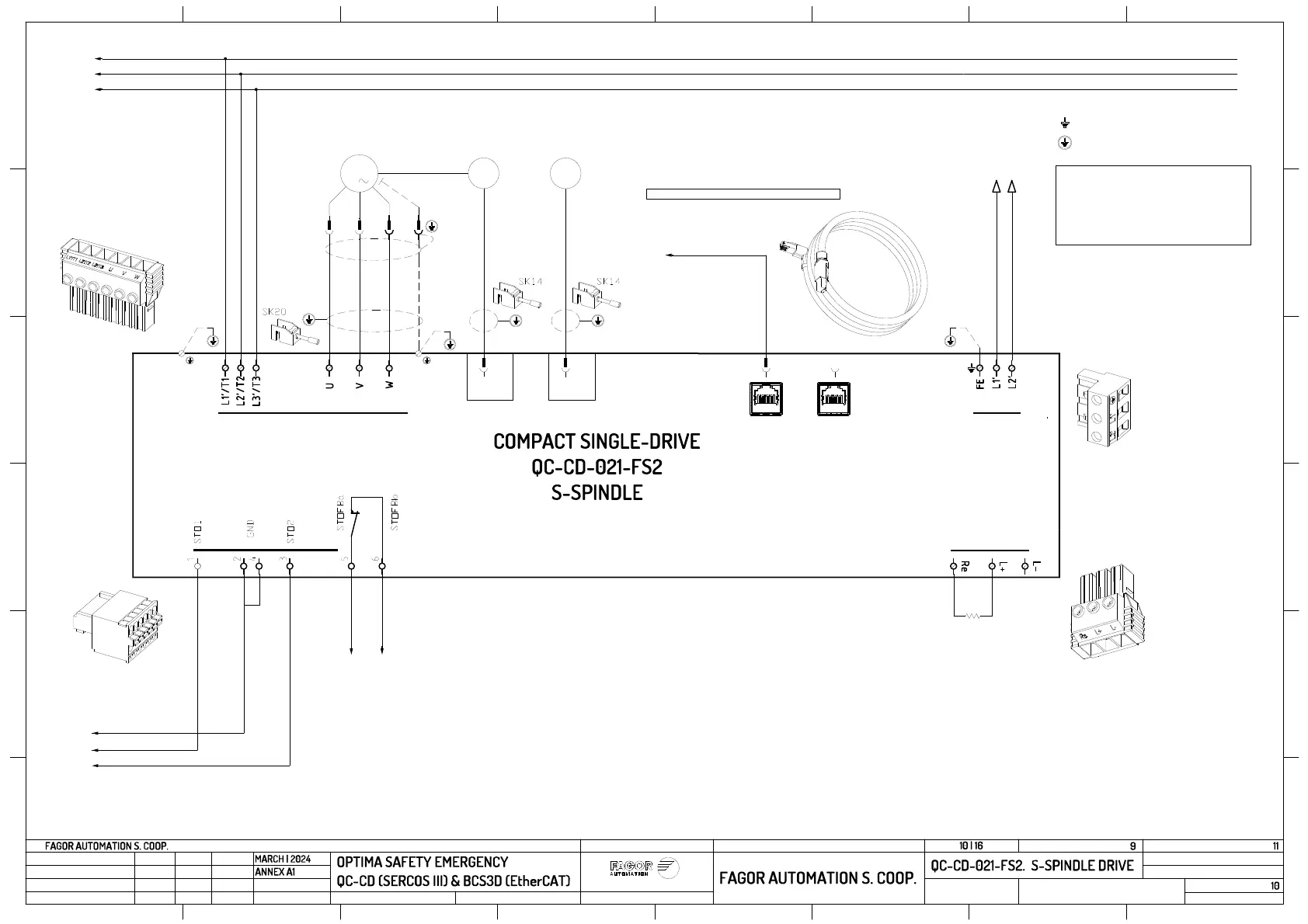

EXTERNAL BRAKING RESISTOR
ER+TH-24/750
X75
X78
POWER INPUT TO THE MAIN POWER SUPPLY
AND POWER OUTPUT TO THE MOTOR
L1'/T1
L2'/T2
L3'/T3
4/2E
CHASSIS
PROTECTIVE EARTH
FUNCTIONAL EARTH
X75
Note. L- DO NOT USE
GP-1: TOP GROUNDING PLATE
GP-2: BOTTOM GROUNDING PLATE
ES
-MS
M
3
US
VS
WS
S-SPINDLE
FM9 MOTOR
PE
M6
E21A
QC-IECD-X CABLE
GP-2
E21B
OPTION
E
GP-2
GP-1
B10B
CNCelite
B10
B10A
CHASSIS
M6
MPC-4xS-xM
1
X13A
X13A
142 143
154 155
7/1C
N8
3/8D
142
143
7/5E
7/6E
0 Vdc
A73
POWER INPUT TO THE
AUXILIARY POWER SUPPLY
A73
X78
PE
FUNCTIONAL
EARTH
4/2E
4/2E
L1'
4/3E
L2'
4/3E
7/1C
QC-FBC-X 1 ... 7 m
QC-FBC-FLEX-X 10 ... 100 m
GREEN
UPON REQUEST. SERCOS III CABLE
8/3B
IEC
PE
INCREMENTAL TTL
REF. S ENCODER
GND-PLATE-QC-CD accessory kit
Upon request. Code. 88268031
