Fagor BCSD-30D - Page 13

Digital Brushless AC Servo Drive system - Ref. 1809 BCSD-13/116

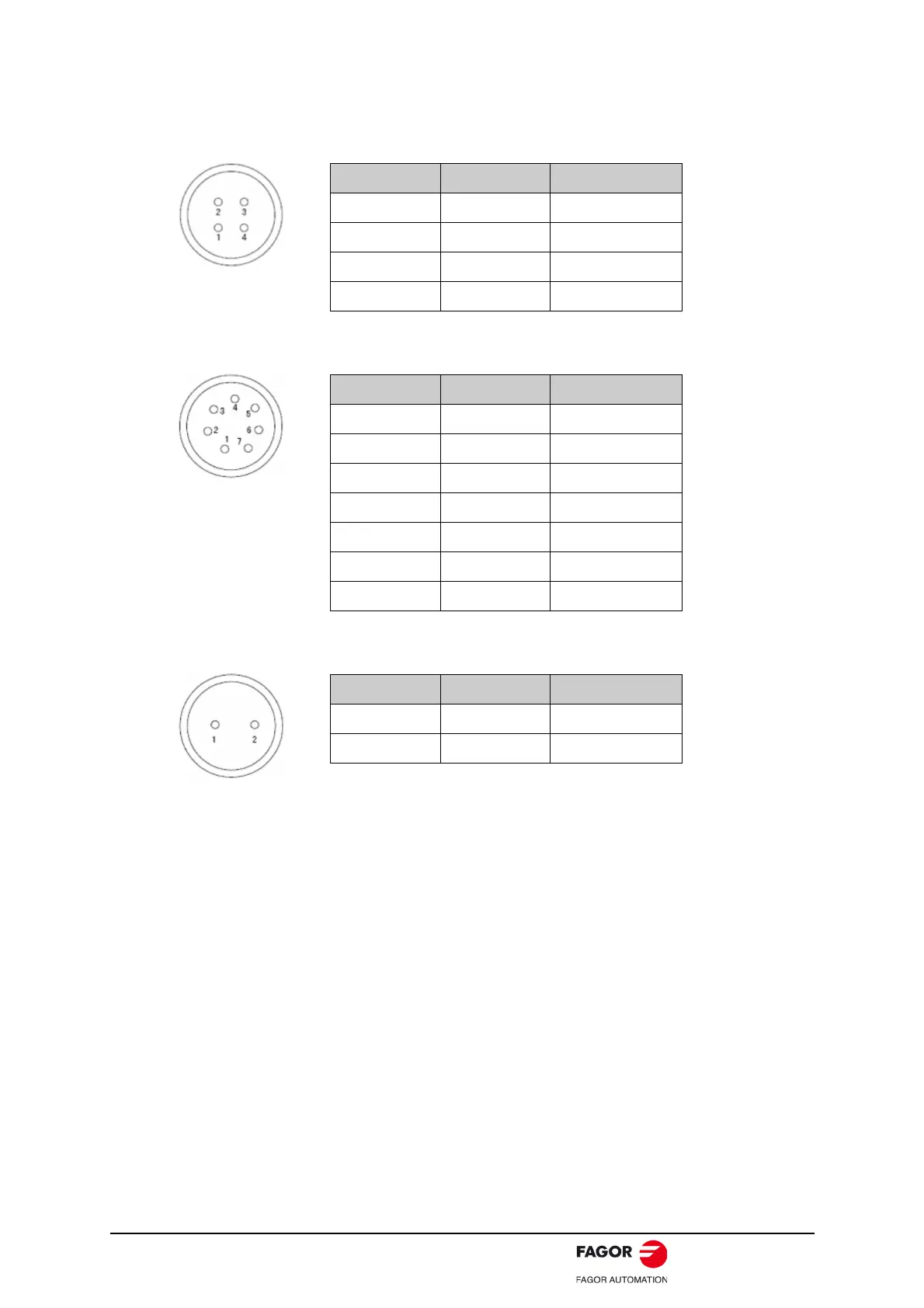

• FBS motor Connector specification.
Motor connector specification:
Pin No. Signal Color
1U Red
2VBlue
3WWhite
4 FG Green/yellow
Encoder connector specification:
Pin No. Signal Color
1S+Blue
2 S- Blue/Black
*3 BAT+ Brown
*4 BAT- Brown/Black
5PG5V Red
6PG0VBlack
7 FG Shield
Brake connector specification:
Pin No. Signal Color
1B1Blue
2B2White
