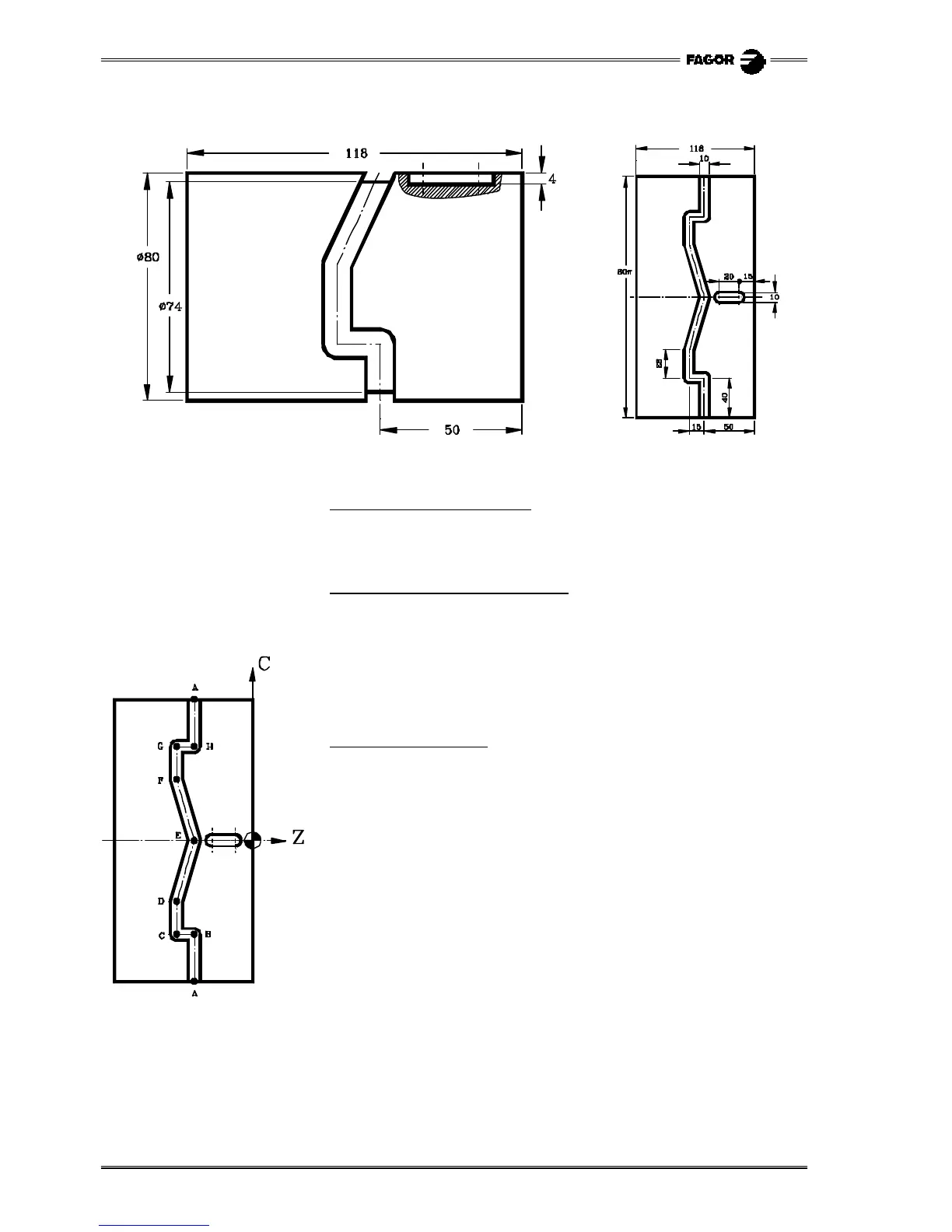

Machining a profile in the ZC plane.
Selecting the radial live tool.
G0 X100 Z150
T15 D15
M45 S-600
Operation 1 (Machining of the slot)
G15 R36 .........................................Select the "C" axis.
G16 ZC ...........................................Select the work plane.
G0 X90
Z-15 C0
G1 G94 X72 F100 M13
Z-35
G1 X90
Operation 2 (Grooving)
G15 R37
G16 ZC
G0 Z-50 C-125.664 .....................Position at point A.
G1 X74 F100
G91 C40 F50 .................................Section A-B.
Z-15 ...............................................Section B-C.
C28 .................................................Section C-D.
Z15 C57.664 .................................Section D-E.
Z-15 C57.664 ...............................Section E-F.
C28 .................................................Section F-G.
Z15 .................................................Section G-H.
C40 .................................................Section H-A.
G90 X90
G0 Z10
M30
