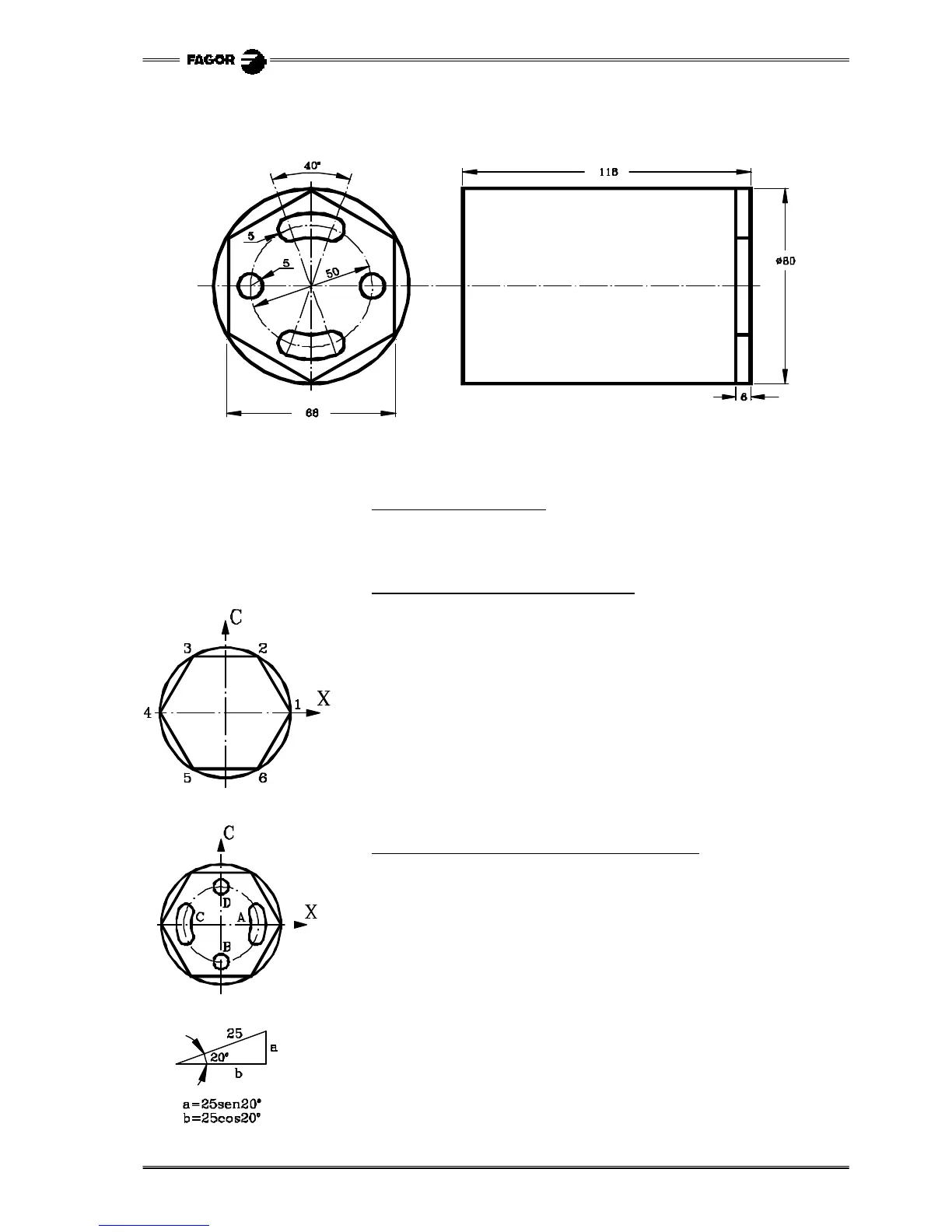

EXAMPLE MANUAL 35
Machining a profile in the XC plane.
Select the axial live tool.
G0 X100 Z150
T16 D16
M45 S600
Operation 1 (Machining of a hexagon)
G15 .................................................Select the "C" axis.
G16 XC ...........................................Select the work plane.
G94 Z10 C0 F100
G1 Z-6
G1 G42 X39.26 C0 .......................Position at point 1.
X19.63 C34 ...................................Section 1-2.
X-19.63 C34 .................................Section 2-3.
X-39.26 C0 ...................................Section 3-4.
X-19.36 C-34 ...............................Section 4-5.
X19.63 C-34 .................................Section 5-6.
X39.26 C0 .....................................Section 6-1.
G0 G40 X50
Z10
Operation 2 (Making the grooves and the holes)
X23.492 C8.55
G1 Z-5 F50
G2 X23.492 C-8.55 R25 .............Grooving A.
G0 Z5
X0 C-25 .........................................Position at point B.
G1 Z-5
G1 Z5
G0 X-23.492 C-8.55
G1 Z-5
G2 X-23.492 C8.55 R25 .............Grooving C.
G0 Z5
X0 C25 ...........................................Position at point D.
G1 Z-5
G0 Z5
M30
