50 EXAMPLE MANUAL

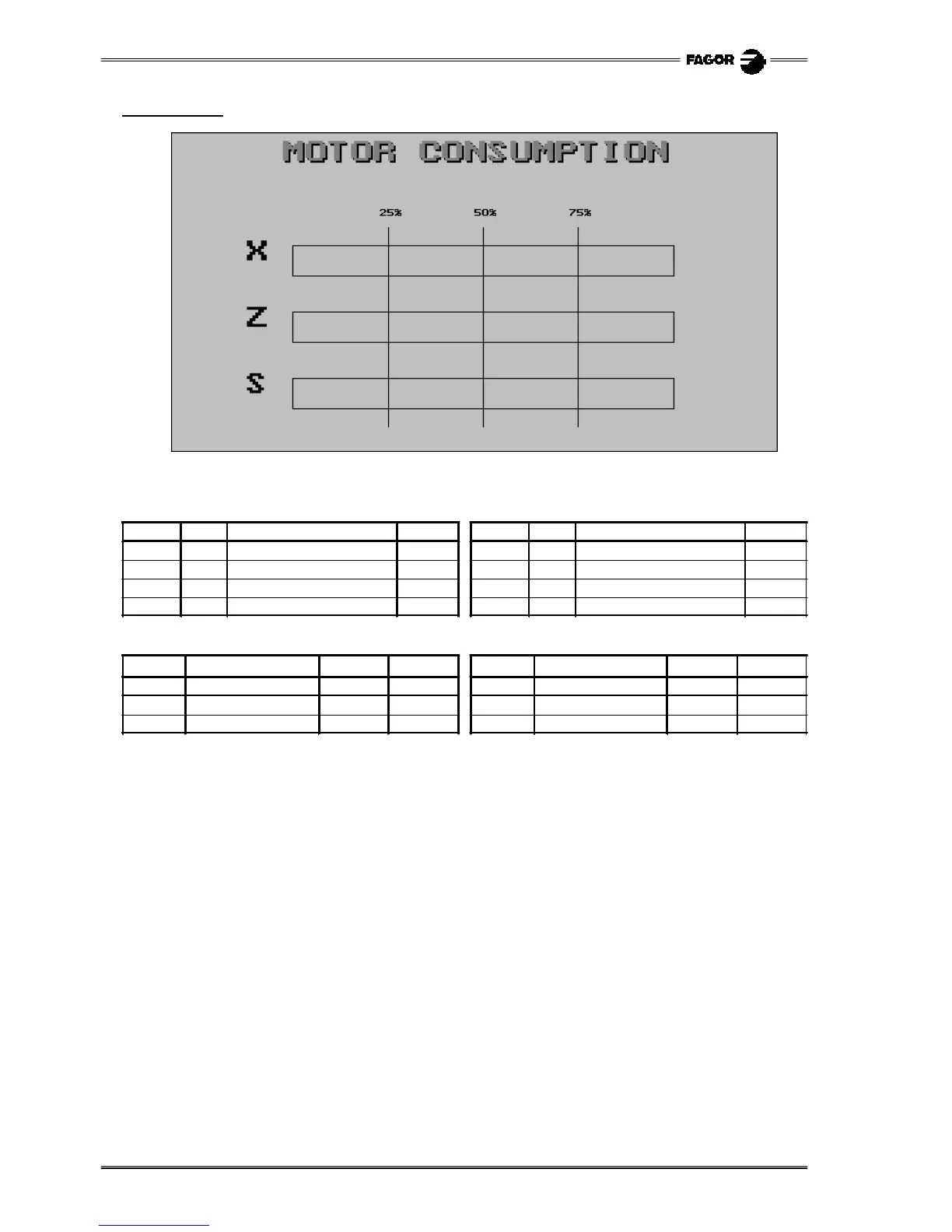

Editing page 4
Access the screen customizing mode and select: [Utilities] [Editor] [Page] 4 [Enter]
Select background color: Navy blue
Edit the following texts:
Edit the following graphics elements with line type: Fine solid.
Main color Size Text Position Main color Size Text Position
White Large MOTOR CONSUMPTION X120 Y10 White Large S X80 Y253
Red Large MOTOR CONSUMPTION X118 Y8 White Small 25% X220 Y80
White Large X X80 Y113 White Small 50% X320 Y80
White Large Z X80 Y183 White Small 75% X420 Y80
Main color Element 1st corner 2nd corner Main color Element 1st end 2nd end
White Unfilled Rectangle X129 Y119 X531 Y151 Green Continuous line X230 Y100 X230 Y310
White Unfilled Rectangle X129 Y189 X531 Y221 Yellow Continuous line X330 Y100 X330 Y310
White Unfilled Rectangle X129 Y259 X531 Y291 Red Continuous line X430 Y100 X430 Y310
