Fagor DDS Series User Manual

Drives
3.
180
Ref.1912
DDS
HARDWARE
· 106 ·

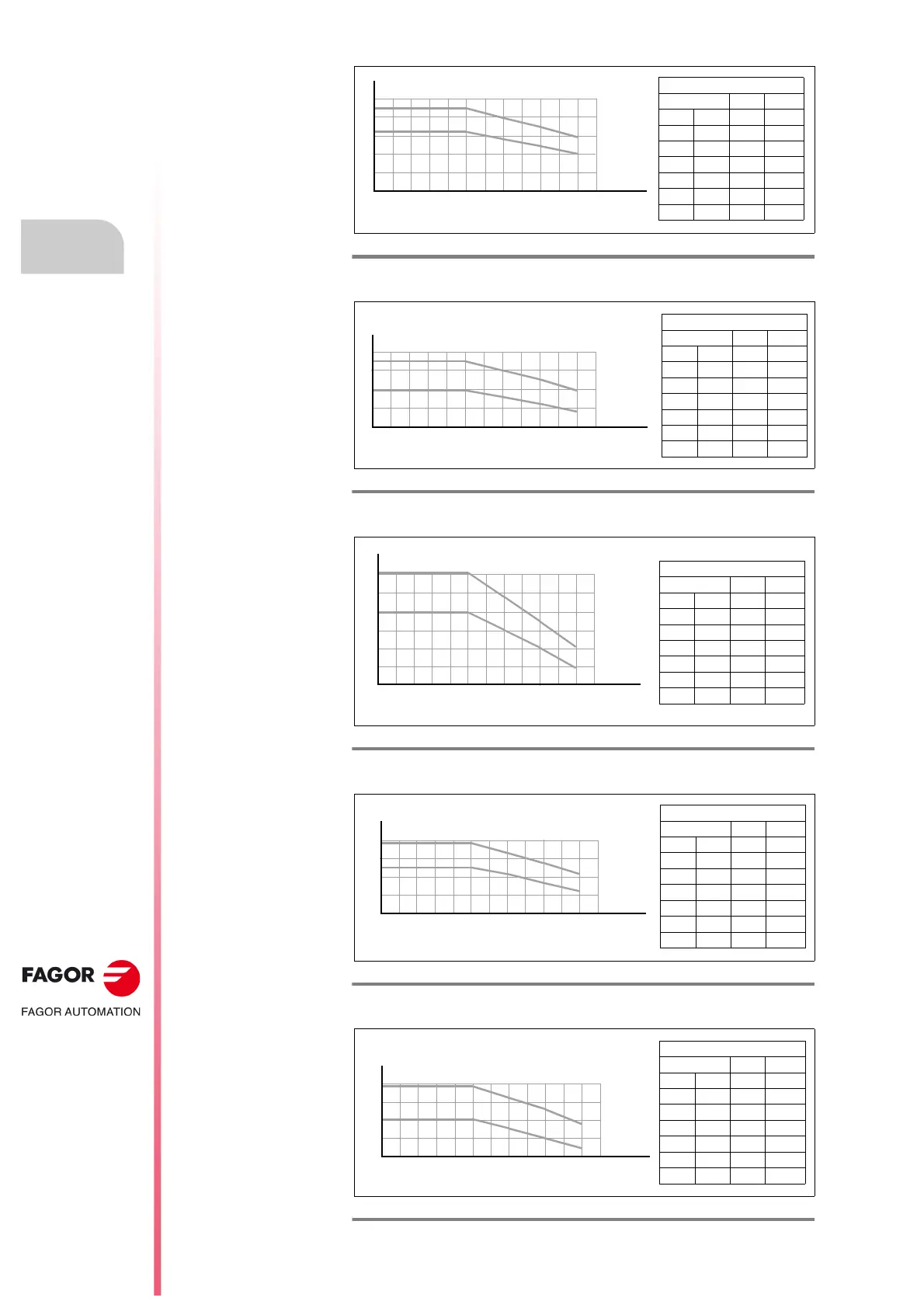

F. H3/29
Current derating on ·SPD 2.75· drives for fc = 4 kHz.
F. H3/30
Current derating on ·SPD 2.85· drives for fc = 4 kHz.
F. H3/31
Current derating on ·SPD 3.100· drives for fc = 4 kHz.
F. H3/32
Current derating on ·SPD 3.150· drives for fc = 4 kHz.
F. H3/33
Current derating on ·SPD 3.200· drives for fc = 4 kHz.
35 40 55 60
30
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
40
In
50
20
60
IS6-40
SPD 2.75
T ambient In IS6-40
° C ° F A A
35 95 42.0 54.6
40 104 42.0 54.6
45 113 42.0 54.6
50 122 38.2 49.7
55 131 34.3 44.6
60 140 30.2 39.2
SPD 2.85
T ambient In IS6-40
° C ° F A A
35 95 50.0 65.0
40 104 50.0 65.0
45 113 50.0 65.0
50 122 46.2 60.0
55 131 42.3 55.0
60 140 38.3 49.8
35 40 55 60
50
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
60
In
70
40
IS6-40
35 40 55 60
60
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
70
In
80
50
90
IS6-40
40
30
SPD 3.100
T ambient In IS6-40
° C ° F A A
35 95 70.0 91.0
40 104 70.0 91.0
45 113 70.0 91.0
50 122 60.4 78.6
55 131 50.2 65.3
60 140 39.1 50.8
35 40 55 60
80
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
100
120
60
IS6-40
40
In
SPD 3.150
T ambient In IS6-40
° C ° F A A
35 95 90.0 117.0
40 104 90.0 117.0
45 113 90.0 117.0
50 122 81.6 106.1
55 131 72.8 94.6
60 140 63.4 82.4
SPD 3.200
T ambient In IS6-40
° C ° F A A
35 95 121.0 157.3
40 104 121.0 157.3
45 113 121.0 157.3
50 122 110.8 144.1
55 131 100.2 130.3
60 140 89.1 115.9
35 40 55 60
120
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
140
In
160
100
IS6-40
80
