Other elements
Besides the various connectors, the front panel of the drive has other
elements that are mentioned next.

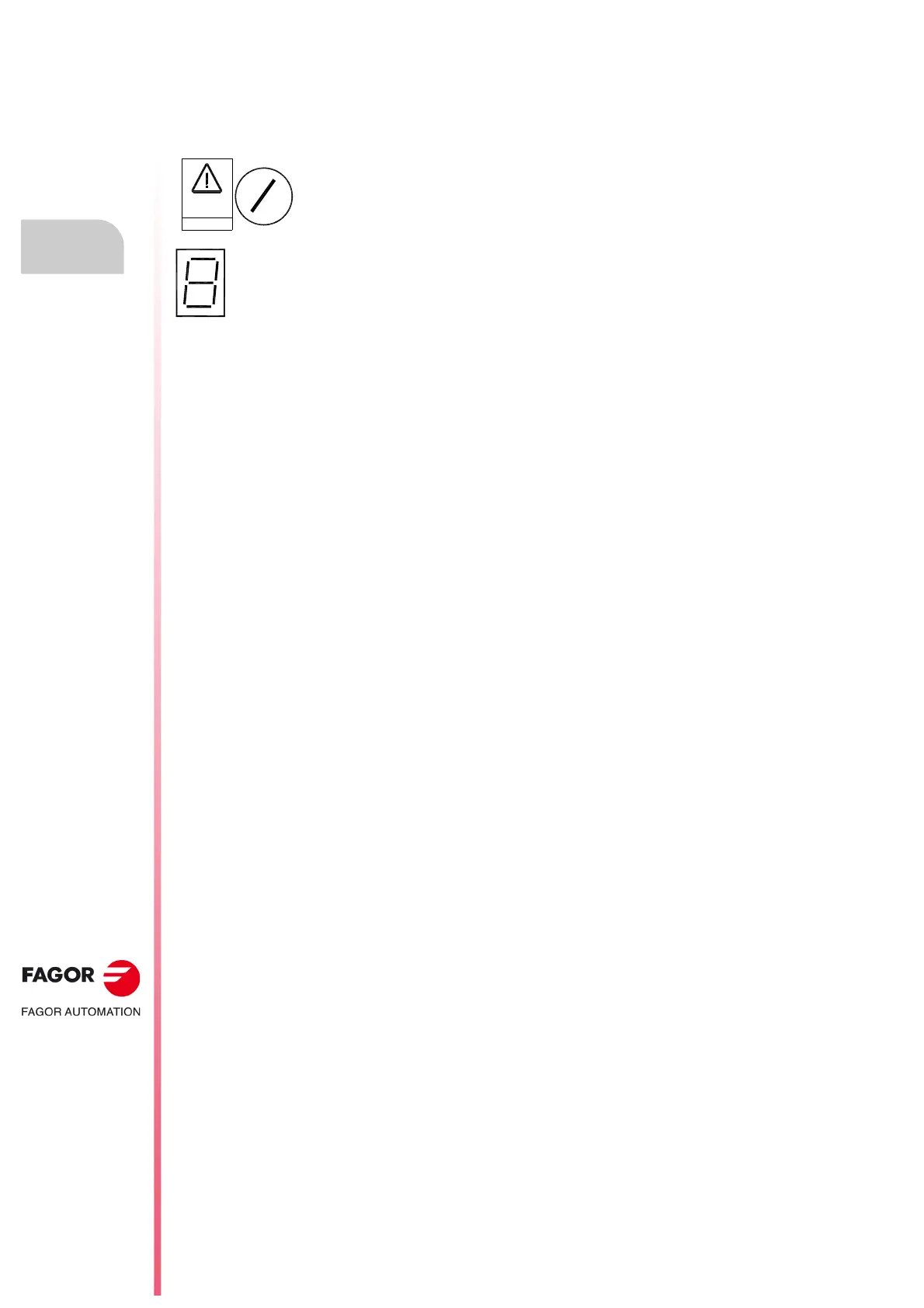

Fuse
The fuse on the front panel of each modular drive is a “2.5 A (F)/250 V (fast)”
fuse and it is used to protect the internal control circuits.
Status display
The seven-segment status display shows the information on the drive status
or the corresponding code when an error or warning occurs. See section
3.3. Turning a drive on at the end of this chapter. It can also display the
transmission speed when setting it both with SERCOS-II or CAN interface.
FUSE
2,5A(F)
(250V)
STATUS
DISPLAY
