Fagor DDS Series User Manual

Drives
3.
Ref.1912
· 133 ·
DDS
HARDWARE
The description of the pinout of this connector is:
X6. RS-232/422 serial line
It is a 9-pin male sub-D connector for connecting an RS-232/422 serial line
with a device acting as master. This device is usually a PC or an ESA video
terminal (VT).
The description of the pins of this connector is:
T. H3/10 Pinout of connector X6 (CAN interface). Description.
1
GNDa N.C. (Not Connected)
2
CANL CAN L bus line
3
SHIELD Overall shield
4
CANH CAN H bus line
5
SHIELD N.C. (Not Connected)
INFORMATION. Note that on modular drives AXD, SPD and MMC, this
connector will always come with connector X5.
i
NOTE. Only MMC modular drives can have this connector.

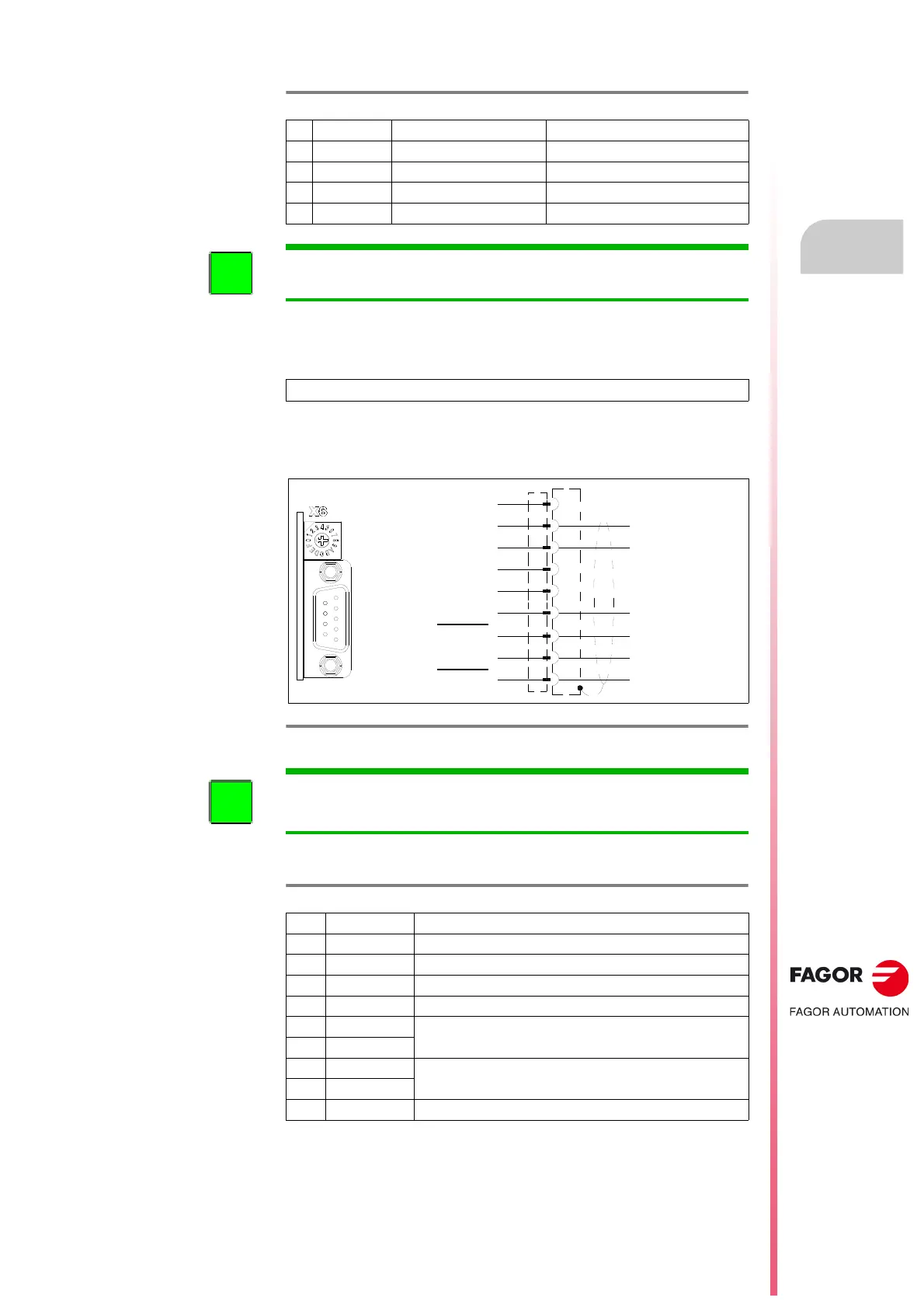

F. H3/73
X6 connector. RS-232/422 serial line.
1
2
3
4
5
6
7
8
9
1
2
3
4
6
5
7
8
9
TxRS232 OUT
RxRS232 OUT
RxD232
TxD232
+5 V DC
TxD422
TxD422
RxD422
RxD422
GND ISO
RxRS422 +IN
RxRS422 -IN
TxRS422 +OUT
TxRS422 -OUT
NOT CONNECTED
INFORMATION. Note that on modular drives, only the MMC models can
have the RS-232/422 connector and only when they do not have the
connector X5.
i
T. H3/11 Pins of the RS-232/422 connector. Description.
1
N. C. Not Connected
2
RxD 232 RS-232 serial line data reception
3
TxD 232 RS-232 serial line data transmission
4
+5 V ISO Supply outputs
5
GND ISO Reference 0 V
6
TxD 422
RS-422 serial line
data transmission
7
#TxD 422
8
RxD 422
RS-422 serial line
data reception
9
#RxD 422
CH
CHASSIS Cable shield
