Fagor DDS Series User Manual

Drives
3.
180
Ref.1912
DDS
HARDWARE
· 140 ·
3.2 Compact drives
When referring to compact drives, we will use ACD/SCD/CMC. They have the power supply integrated
into the module itself and are connected directly to three-phase mains. ACD/SCD/CMC support line
voltages ranging from 400 to 460 V AC and ACD/SCD -...- L line voltages of between 200 and 240 V AC.
In general, their behavior, functions and parameters are identical to those of the modular drive. See all
models in the following figures.

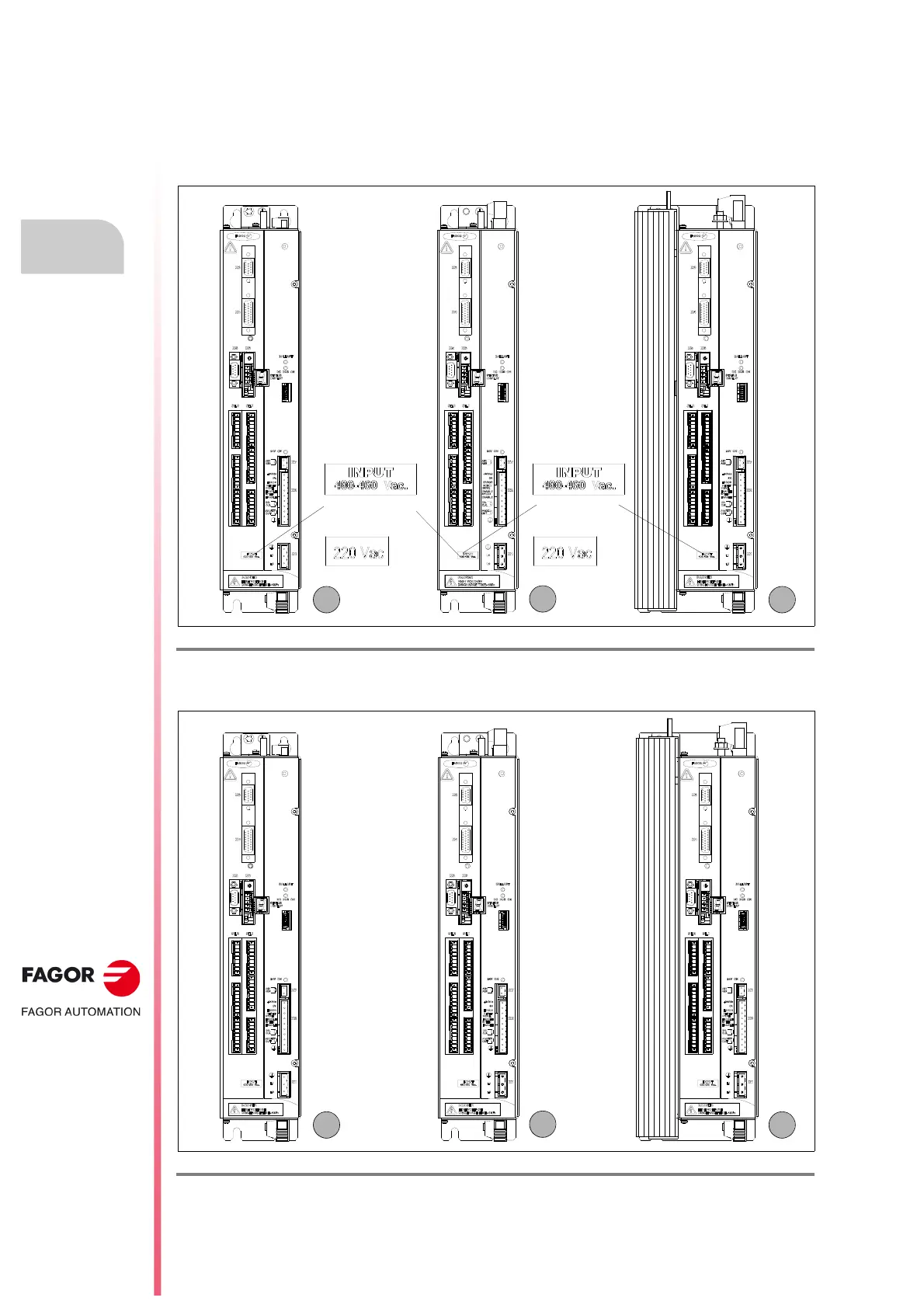

F. H3/82
ACD/SCD... and ACD/SCD...- L compact drives of the FAGOR catalog.
A. ACD|SCD 1.08|1.15, B. ACD|SCD 1.25, C. ACD|SCD 2.35|2.50, SCD 2.75.
F. H3/83
CMC compact drives of the FAGOR catalog.
A. CMC 1.08|1.15, B. CMC 1.25, C. CMC 2.35|2.50.
compact drive compact drive compact drive
A
B
C
ACD/SCD...- L
ACD/SCD...
ACD/SCD...- L
ACD/SCD...
positioning drive positioning drive positioning drive
A
B
C
