3. Final stages: They display error messages or warnings on the display
when they come up. When the series ends, it begins a new sequence
again repeating these messages again.
See the meaning of errors codes and warnings that may be shown on the
display of the drive in chapter 14. ERROR CODES AND MESSAGES, of the
“man_dds_soft.pdf” manual.
The system will not start running until all the errors detected at the drive have
been eliminated.
To eliminate these errors, their cause has to have disappeared and, then an
<error reset> must be carried out. This «RESET» may be activated from
connector X2 (pin 1) of the power supply module (with modular drives) or
from connector X2 (pin 3) of the compact drive.
For further information on initialization and error reset, see the
corresponding section of this chapter.
If the system uses CAN interface, the display will show the stages
mentioned earlier like when using SERCOS-II interface, with a fixed zero
when it is operative or with a smaller fixed or intermittent zero when
receiving or not a response to the first message sent out on power-up.
F. H3/140

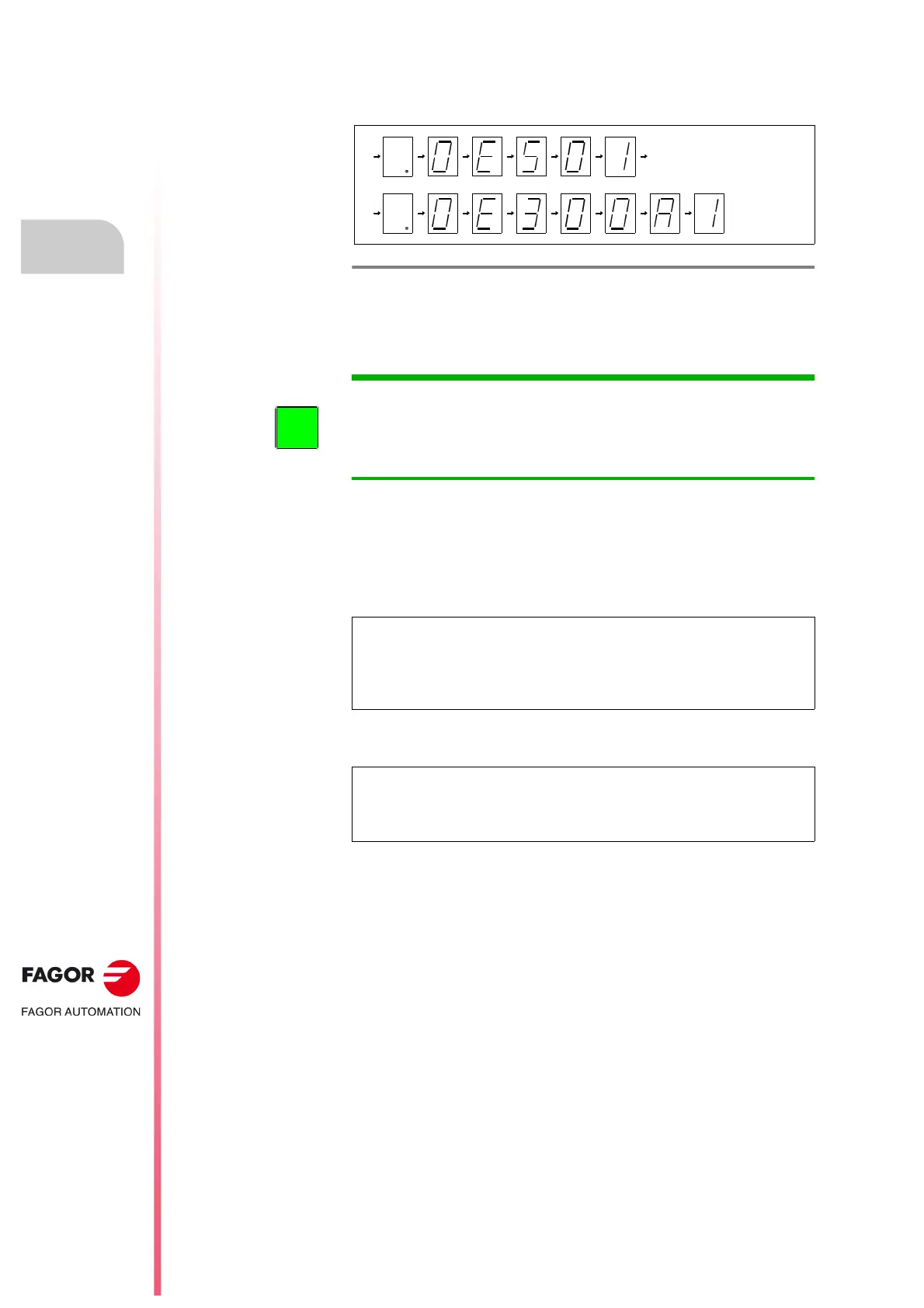

Final stages. Error and warning displaying STAGES.
INFORMATION. The CNC screen also shows these codes and error
messages as well as the codes and texts of SERCOS-II|CAN
communication errors.
With analog interface, the code of the activated error is only displayed on the
display of the drive.
NOTE. Remember that there are errors classified as “non-resettable” that
cannot be eliminated with this method. These errors can only be eliminated
by turning the unit off and back on and only if the cause of the error has
been eliminated. See the section “non-resettable errors” in chapter 14 of
the “man_dds_soft.pdf” manual.
NOTE. Remember that the errors may be disabled from the “error disable”
tab of the “SPY” window of the WinDDSSetup application. For further
detail, see chapter 16. WINDDSSETUP of the “man_dds_soft.pdf”
manual.
