Auxiliary modules
4.
AUXILIARY MODULES
Mains filters
200
Ref.1912
DDS
HARDWARE
· 182 ·
4.1 Mains filters
In order to comply with European Directive 2014/30/UE on Electromagnetic
Compatibility, it is mandatory to insert a mains filter. Particularly, the
standard IEC 61800-3 for category C3 and the standard IEC 61800-5-2 for
immunity.
The mains filters of the FAGOR catalog are referred to as MAIN FILTER.
They are installed between mains and the DDS system (modular or
compact) in order to reduce conducted disturbances caused by the drive
down to the levels indicated by the standard mentioned earlier and, at the
same time, make it immune to transient over-voltage like bursts or voltage
pulses.

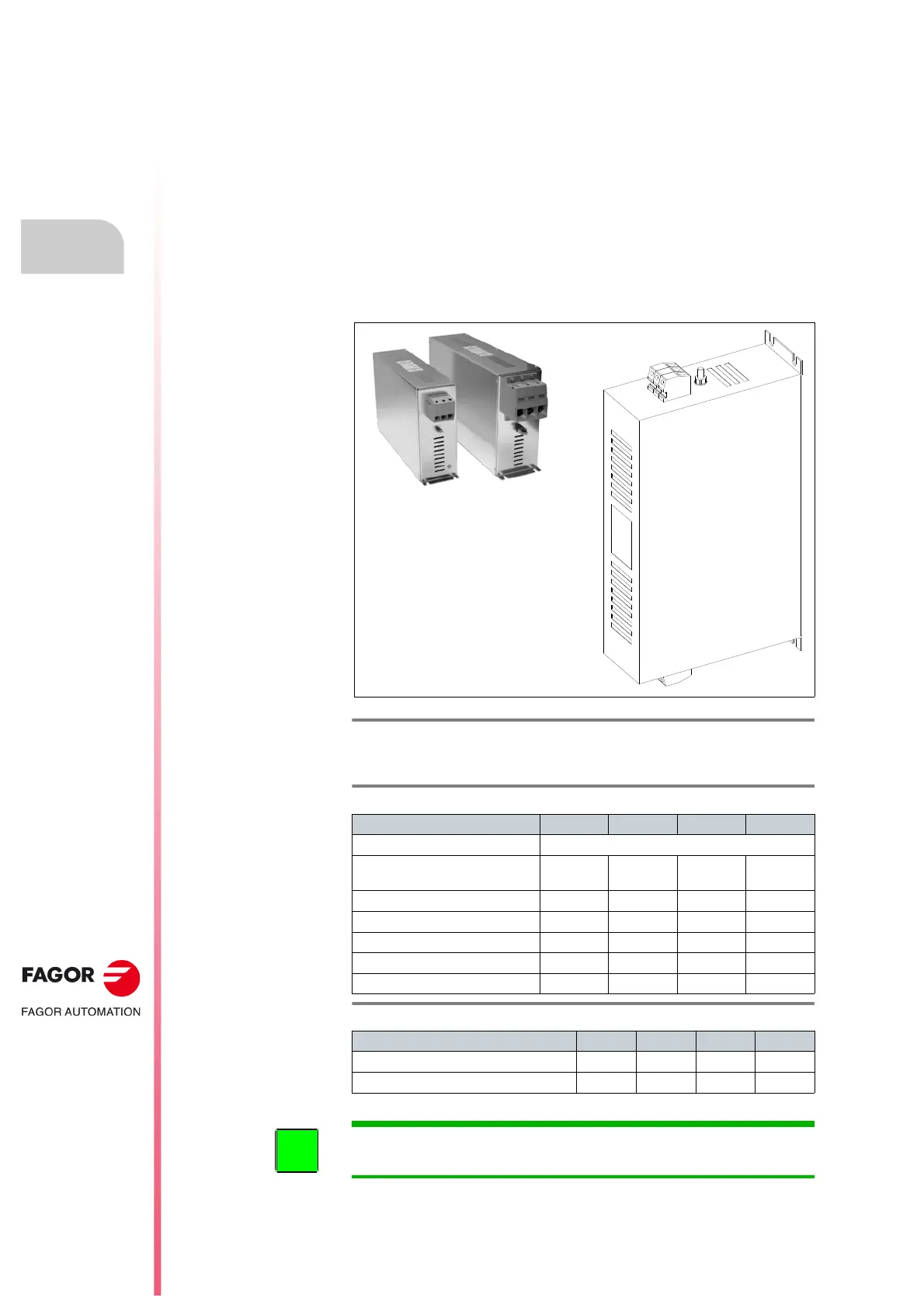

Outside look
Technical data
F. H4/1
Mains filters. Outside look.
T. H4/1 Mains filters. Technical data
MAIN FILTER 42A-A 75A-A 130A-A 180A-A
Rated voltage 3-ph, 380/480 V AC (50/60 Hz)
Rated current
(rating @ 50°C/122°F)
42 A 75 A 130 A 180 A
Approx. mass kg/lb 2.8/6.2 4.0/8.81 7.5/16.5 11.0/24.2
Rated leak current 0.50 mA 0.50 mA 0.75 mA 0.75 mA
Max. leak current 27 mA 27 mA 130 mA 130 mA
Power loss 19 W 20 W 40 W 61 W
Sealing IP 20 IP 20 IP 20 IP 20
T. H4/2 Mains filters. Technical data of the connection terminals.
MAIN FILTER 42A-A 75A-A 130A-A 180A-A
Max. tightening torque (N·m) 1.8 2.3 8.0 18.0
Terminals min./max. section (mm²) 1/10 0.5/25 16/50 35/95
INFORMATION.
Note that this filter must be mounted near the drive.
