SERCOS connection with a FAGOR 8060 CNC
A drive is connected to a FAGOR 8060 CNC via SERCOS through the
SERCOS DRIVES (B32) connector located on the right side of the module.
See figure
.
For further information, see the installation manual of the 8060 CNC.
SERCOS connection with a FAGOR 8065 CNC
A drive is connected to a FAGOR 8065 CNC via SERCOS through the
SERCOS DRIVES connector located on the right side of the module. See
figure
.
For further information, see the installation manual of the 8065 CNC.
F. H8/35

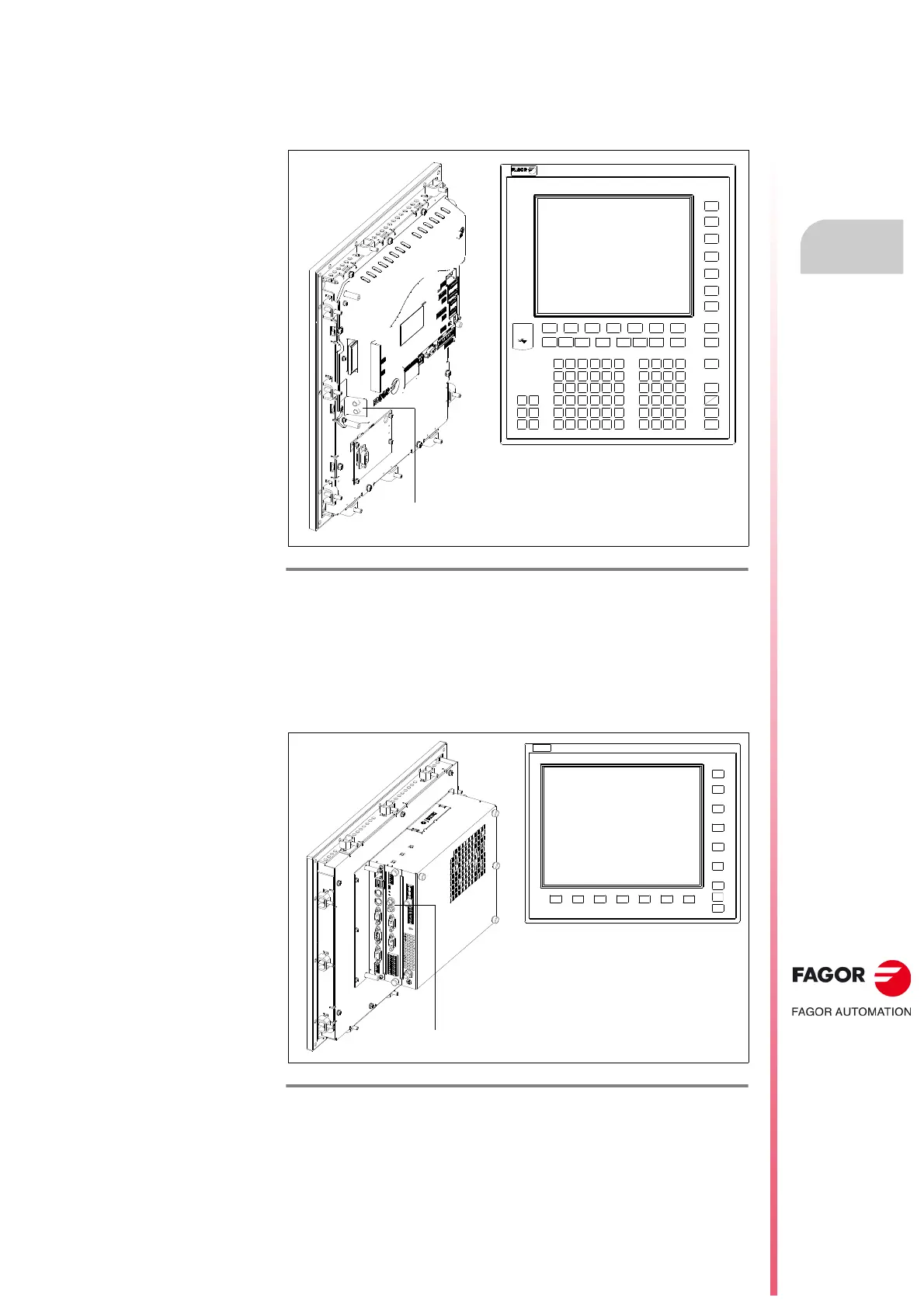

SERCOS connector of the FAGOR 8060 CNC.
F. H8/36
SERCOS connector of the FAGOR 8065 CNC.
B32.
SERCOS DRIVES
8060 10V CNC
SERCOS DRIVES
8065 CNC 15"
