Connection diagrams
10.
358
Ref.1912
DDS
HARDWARE
· 344 ·

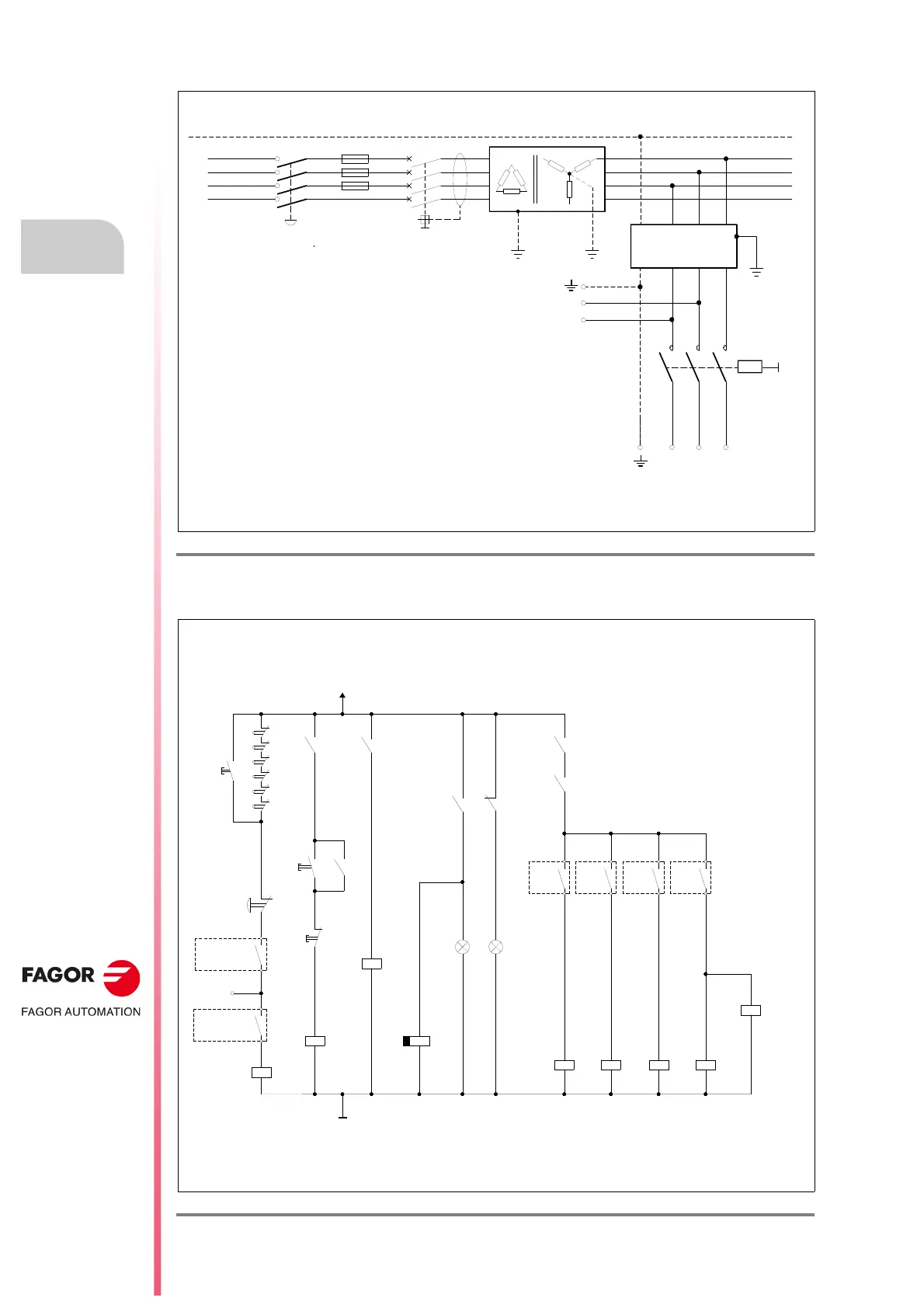

Diagram for general connection to mains
Diagram of the maneuver
F. H10/14
System with a PS-25B4 power supply. Diagram for general connection to mains.
F. H10/15
System with a PS-25B4 power supply. Diagram of the maneuver.
PE
- S1
MECHANICAL
MAIN SWITCH
- F3
- F4
- F5
MAIN FILTER 42A-A
L1
L1L2L3
3x 400-460 VAC
2
x
4
0
0
-
4
6
0
V
A
C
L1
L2
L3
CONTACTOR
- KM1
L2
N
- Q1
DIFFERENTIAL
BREAKER
WARNING. When using an isolating transformer, the secondary must be
connected in star and its middle point must be connected to GND.
IT A MUST TO USE FUSES
TO THE POWER CONNECTOR
PS-25B4 POWER SUPPLY
TO THE X3 CONNECTOR
PS-25B4
POWER SUPPLY
L1
L2
L3
POWER MAINS
Note. Observe that having the main key - S1 closed, although the
power contactor - KM1 is open, the internal auxiliary power supply
remains connected through its connector X3 to feed the control circuits
of the drive.
PS-25B4
SYSTEM OK
+24VDC
X+
X-
Y+
Y-
Z+
Z-
KA1
KM1
ON
KM1
EMERG.
STOP
-KA2
OFF
SYSTEM
SPEED
ENABLE
-KM1
-KA1
EMERGENCY LINE
I1 PLC
CNC EMERG.
O1 PLC
GND
ON OFF
to SPEED ENABLES
-KA7
BRAKE
CONTROL
BRK
(See GP9)
ON
Green
OFF
Red
KA2 KA2
KA2
KA1
CNC
ENABLE
X
CNC
ENABLE
S
CNC
ENABLE
Y
CNC
ENABLE
Z
Delay off
-KA3
DRIVE
ENABLES
(See GP9)
t seconds
-KA4 -KA5
-KA6
Note. CNC EMERG. will always be assigned to I1/O1 of the PLC with an 8055/55i CNC. With an 8070 CNC,
it may be assigned to any I/O of the PLC. The contacts associated with relays - KA2, - KA3, - KA4, - KA5,
- KA6 and - KA7 are shown in
F. H10/13 and the contactor - KM1 in fig. F. H10/14 .
Important. The relay - KA3 uses delayed deactivation (t seconds) maintaining the DRIVE ENABLE control signal
active for a few seconds to maintain motor torque while the vertical axis holding brake is enabled. See parameter
GP9 in the «man_dds_soft.pdf» manual.
