Fagor DDS Series User Manual

Dimensions
11.
DIMENSIONS
XPS CHOKES
384
Ref.1912
DDS
HARDWARE
· 380 ·
11.7 XPS CHOKES
F. H11/22

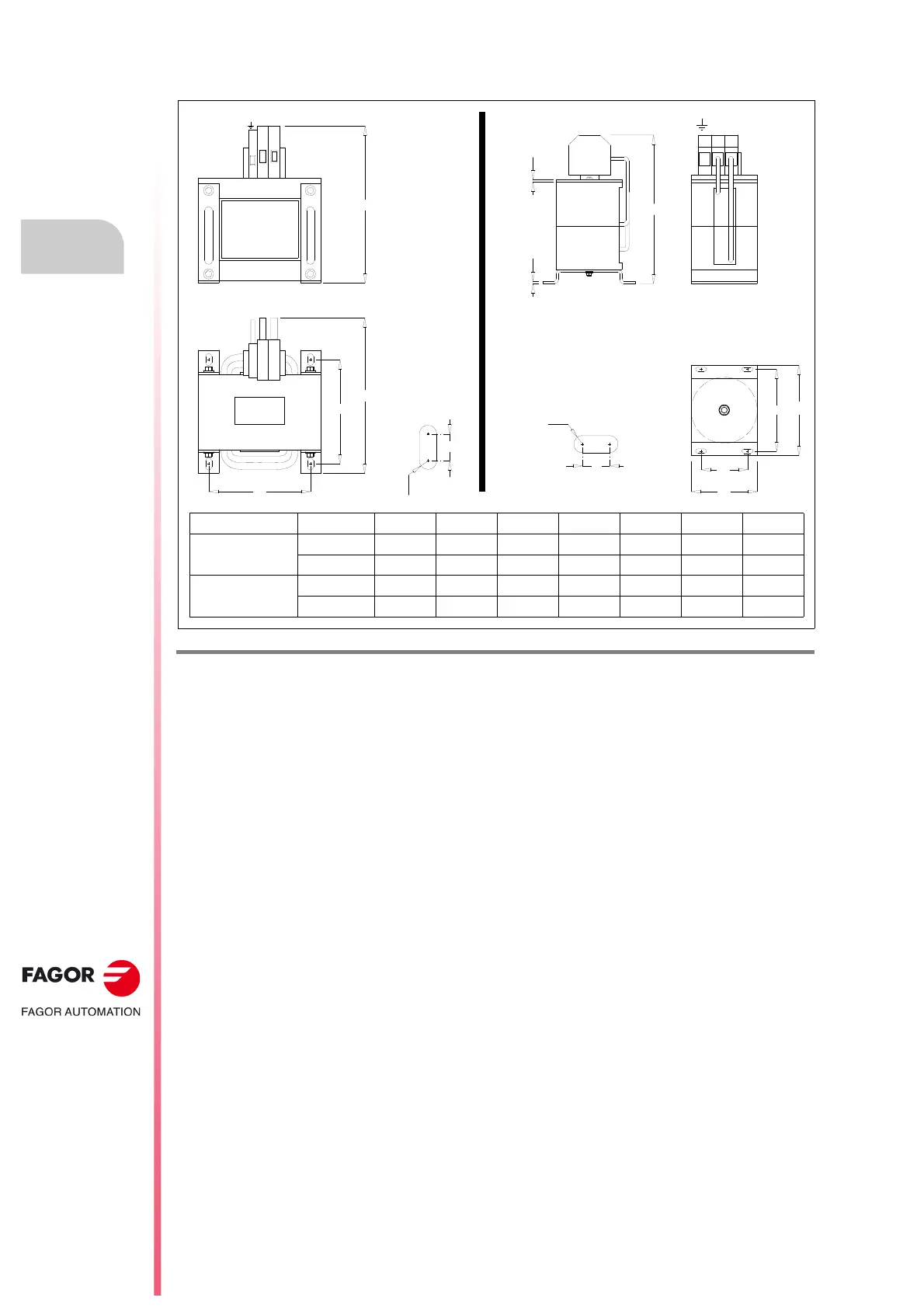

CHOKES. A. XPS-25 CHOKE. B. XPS-65-A CHOKE. Dimensions.
CHOKE Units ABCDEFG
XPS-25
mm - 105 115 180 8 10 165
in - 4.13 4.52 7.08 0.31 0.39 6.49
XPS-65-A
mm 120 85 152 170 9 9 266
in 4.72 3.34 5.98 6.69 0.35 0.35 10.47
U1 U2
A
C
D
BASE AREA
Ø
E
F
B
C
D
G
4
CH2
CH1
4
G
Ø
E
F
B
A
B
