25ENDURANCE 50F BURN POT REMOVAL & INSTALLATION
8. Lift Pusher Assembly up and out (Figure 18).

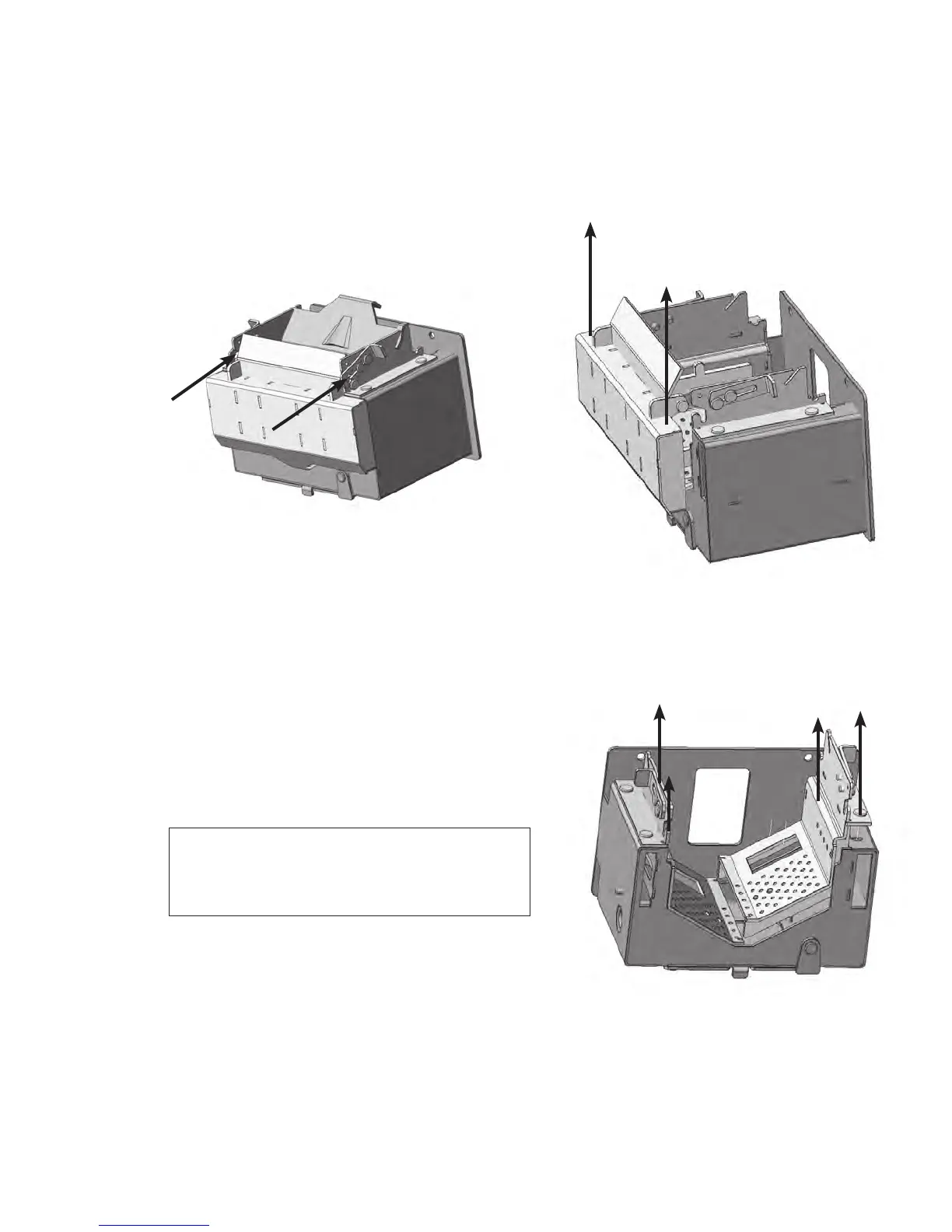

9. Slide the Flapper Door Hold down Tabs back (Figure 19).
10. Remove the Flapper Door Assembly by lifting upward
(Figure 20).
11. Remove the Burn Shell by lifting up and out (Figure 21).
Installation of Pot Parts
Reverse of steps 6 thru 11 above.
Figure 21
Figure 19
Figure 20
BURN POT REMOVAL & INSTALLATION
NOTE: Actuators will be pulled back into normal
position as part of the normal start-up sequence.
