Fahrenheit Technologies Endurance 50F - Page 5

5

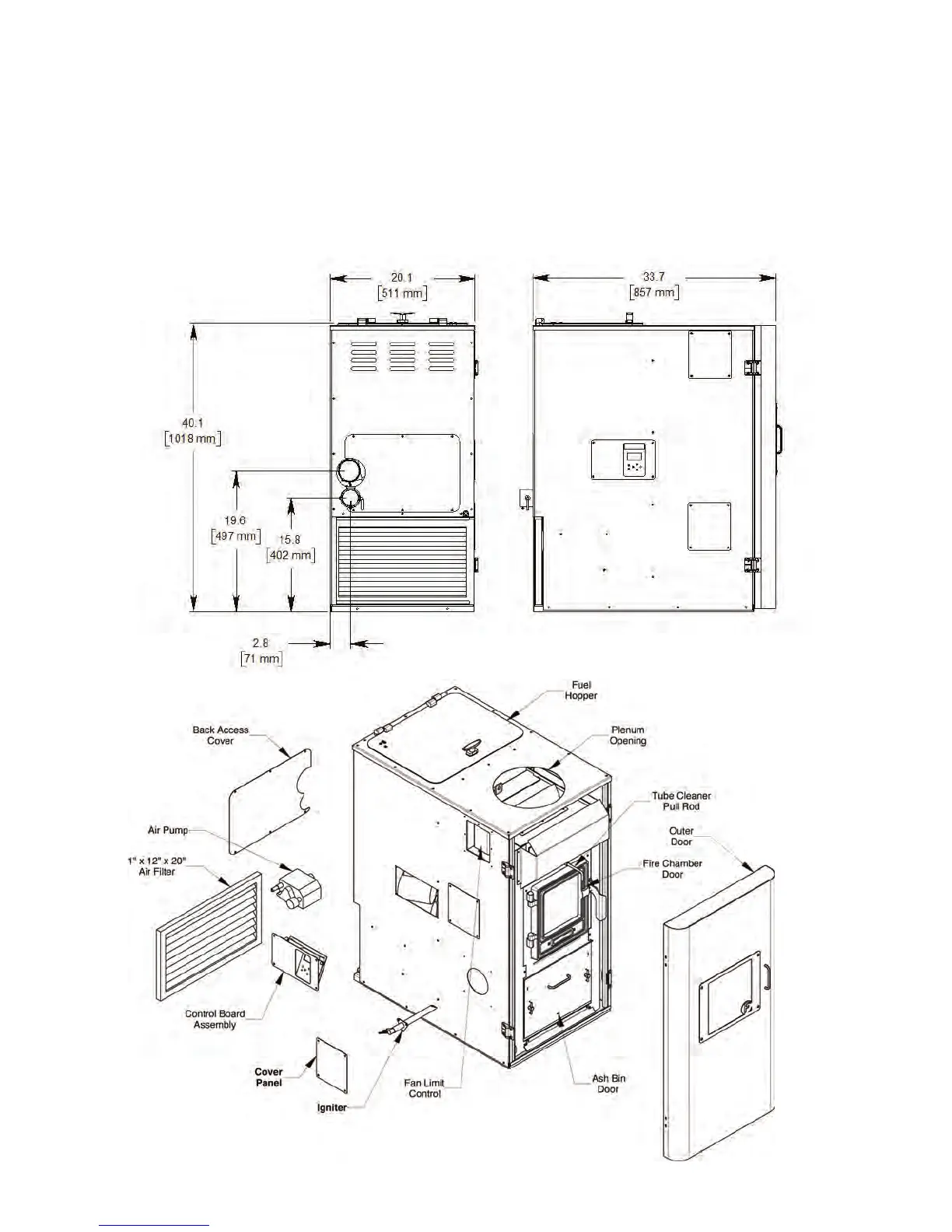

Figure 2
Figure 1
ENDURANCE 50F INTRODUCTION
The Endurance 50F furnace is designed with a software-controlled, patent pending pot cleaning system
that is hands free, which means less daily maintenance. The automatic operation is based on the amount of
fuel fed into the burn pot; the controller also monitors this. Once the set amount has been reached, the unit
will cycle in the cast re-light plate. The fuel now falls on this plate and is ignited by the lower flame. After it
isignitedthepotpusherwillpushforwardandreturntwicetodispersetheash.Whenthepotpusherhas
returned the second time, the cast re-light plate will retract, dropping the new fire into the cleaned out pot
area. This all happens automatically so the user does not have to monitor as often.
