20
7.4.7 .Re-Fasten four screws on inner cradle assembly and ensure electrical connections
are restored as per detailed in wiring diagram.

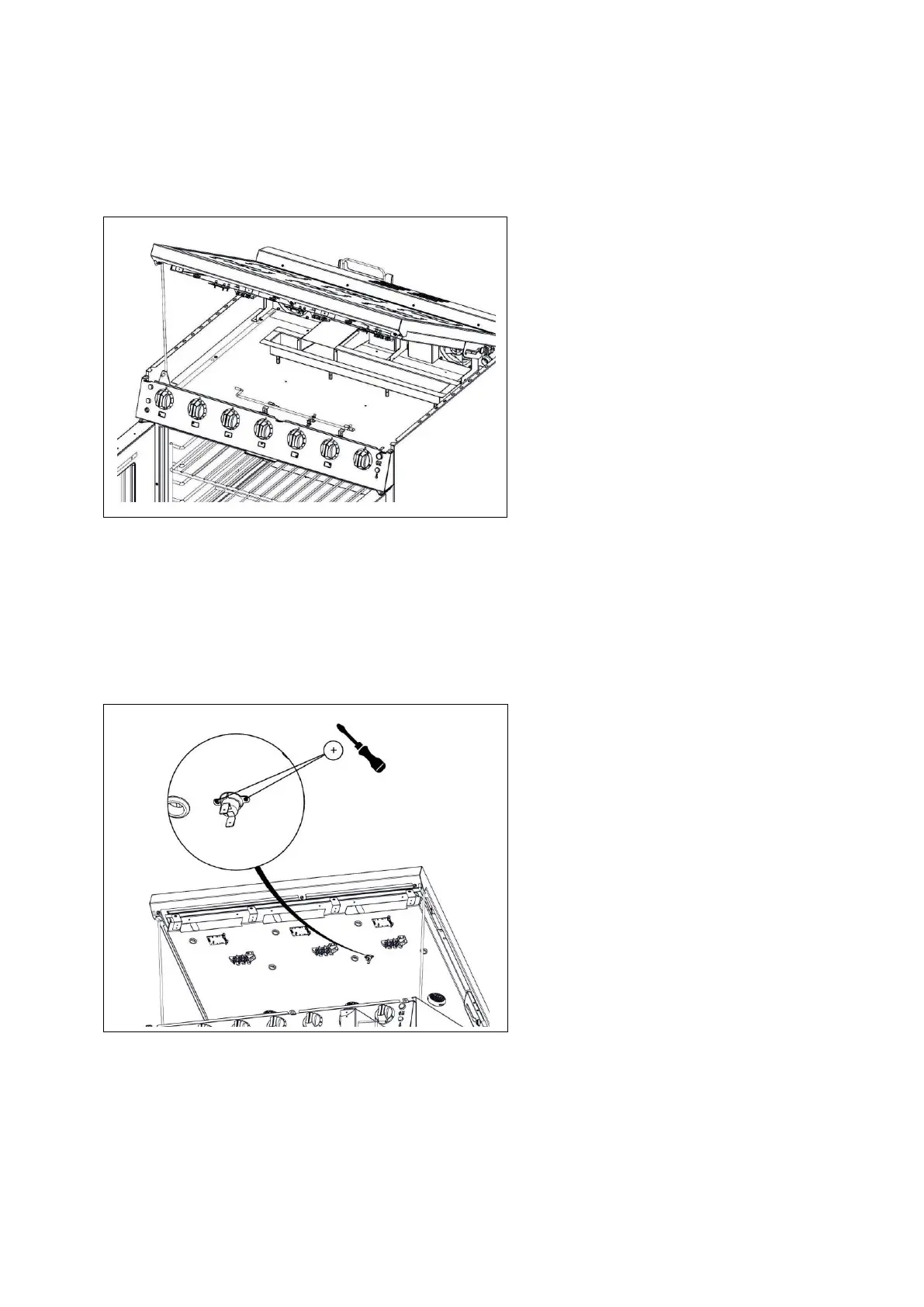

7.4.8 Remove stay and place back into centre fixing position,
7.4.9 Remove second stay whilst holding hob and place back into centre fixing position.
Gently lower hob down and fix with three fixing screws.
7.5 HOB COOLING THERMOSTAT REMOVAL
7.5.1 The hob chamber temperature is controlled with a thermostat, the thermostat is self
resetting. It is located on the Hob cradle assembly.
7.5.2 To remove undo two screws on the flanged collar and release.
7.5.3 Electrical connections to be restored as per detailed in wiring diagram.
