Falcon SSG1.5KRM-1 User Manual

35

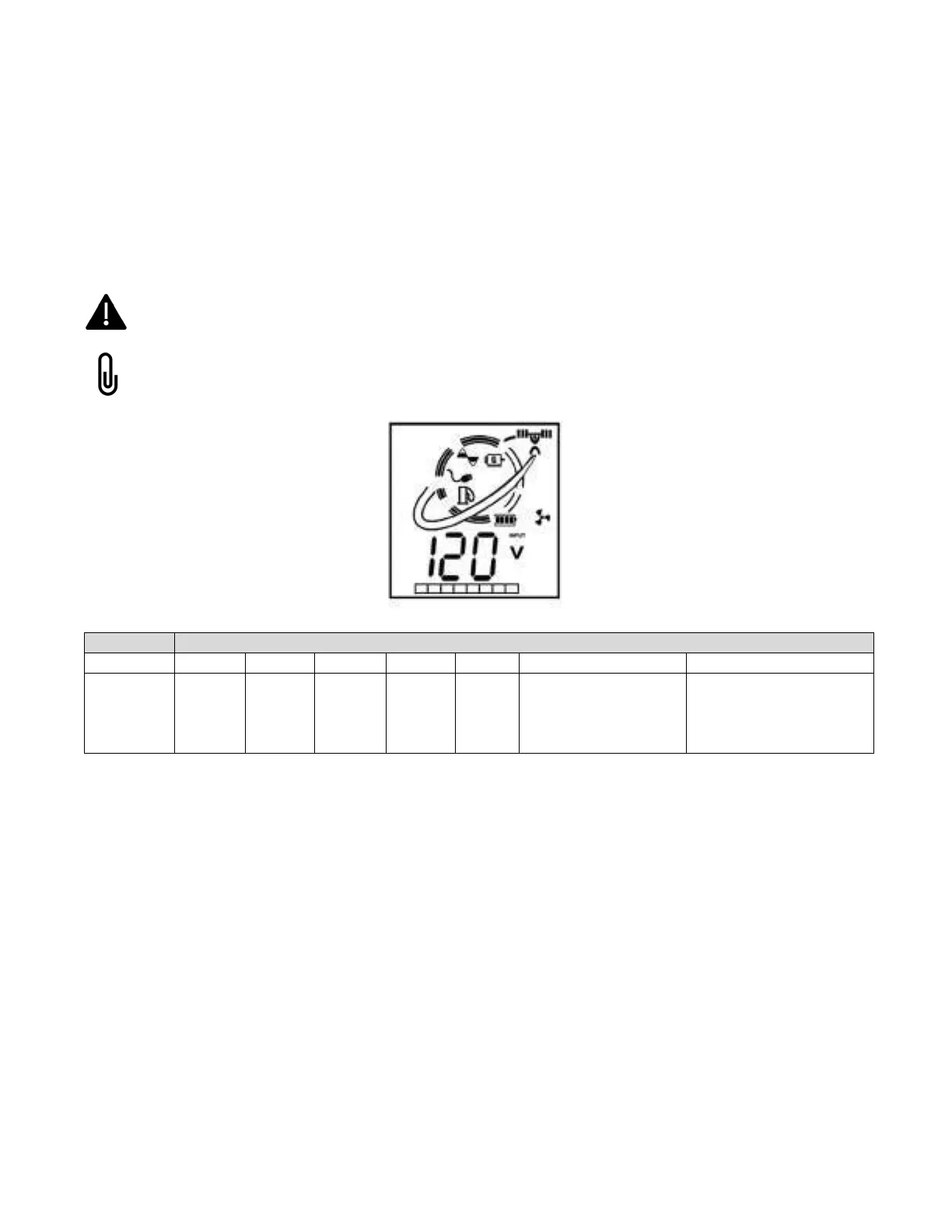

Programming Mode
The following section describes how to configure the UPS setup options using the setup, configuration
& programming mode. The setup options include:
 Programming the UPS output voltage.
 Enabling or disabling load segment controls.
 Enabling or disabling green mode function.
Warning: Do not change the output voltage setting while powering the connected load.
Disconnect all equipment from the UPS output receptacles.
The green mode bit setting is opposite to all the other settings. Status Bit 2 On (•) indicates the
green mode is disabled. Status Bit 2 Off (•) indicates the green mode is enabled.
Status Bit Function Bit
7 6 5 4 3 2 1 0
On = (•)
Off = ( )
LSC#2
Low
Battery
LSC#2
Utility
Loss
LSC#1
Low
Battery
LSC#1
Utility
Loss
Green
Mode
120V or 240V – On
115V or 230V – On
110V or 220V – Off
100V or 208V
–
Off
120V or 240V – On
115V or 230V – Off
110V or 220V – On
100V or 208V
–
Of
f
1. While the UPS is online, simultaneously press the function / test and set / alarm silence buttons
until an audible beep emits to enter the configuration mode.
2. Use the function / test button to scroll through the available function bits. (Scrolling from right to
left, a dot (•) will indicate the current function bit.)
3. Use the set / alarm silence button to turn the desired function bit on or off. The status bit on the
far left of the bit window (Bit 7) shows the current on or off setting. (See green mode note
above.)
a. Status Bit (•) = Function Enabled
b. Status Bit ( ) = Function Disabled
4. To store desired configuration and exit configuration mode, simultaneously press the function /
test and set / alarm silence buttons until an audible beep emits. The desired configuration is
now stored, and you must now restart the UPS for the new configuration to take effect.
