Program 11

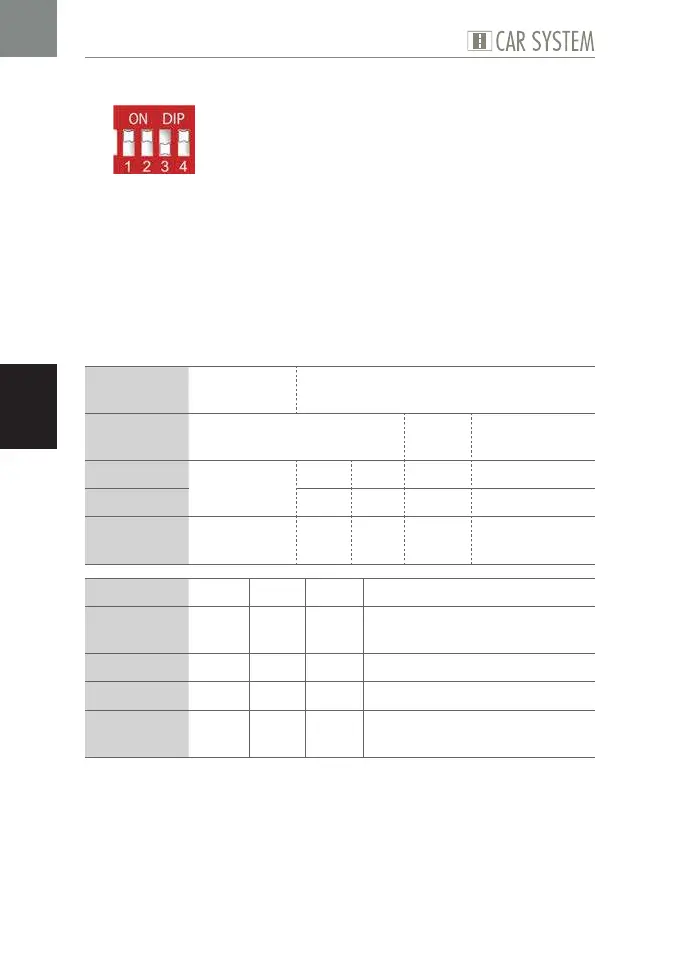

Fig. 16: DIP configuration Program 11
This program is used to distribute different vehicles depending on their actual
speed. That speed may vary depending on the capacity of the rechargeable
battery. The speed is measured between E1 and E3 (sensors built into the
roadway). Depending on the result of the measurement slow vehicles will
be steered to parking places via branch-off junctions and thus singled out
of the moving traffic. The other inputs will allow to clear the parking bays
again, at the modeller’s request. E5 to E8 will additionally switch on outputs
A5 to A8 for a given period of time.
Possible use Timing Distribution on traffic lanes depending
on vehicle speed/capacity of battery
Sensor/But-
ton at input
E1, E3 E2 E4
activates AB 1 AB 2 P/FR 1 P/FR 2
at output A1 A3 A2 A4
for the
period of
Poti 1 2 s 3 s 2 s 2 s
Possible use X 1 X 2 X 3 X 4
Sensor at
input
E5 E6 E7 E8
activates K K K K
at output A5 A6 A7 A8
for the
period of
Poti 2 1 s 15 s 20 s
Table 16: Program 11
X
Set the DIP as required, see Fig. 16.
X
Connect the components, see Table 16.
X
If necessary, set the desired period using the potentiometers.
