Traffic-Control
EN
Traffic-Control programs
The Traffic-Control is provided with 15 different programs. These programs
can be easily and effortlessly selected using the DIP switch. Each one of
these programs consists of a preconfigured combination of switching pro-
cedures. Depending on your particular requirements you will thus be able
to perform your own connection of the components.

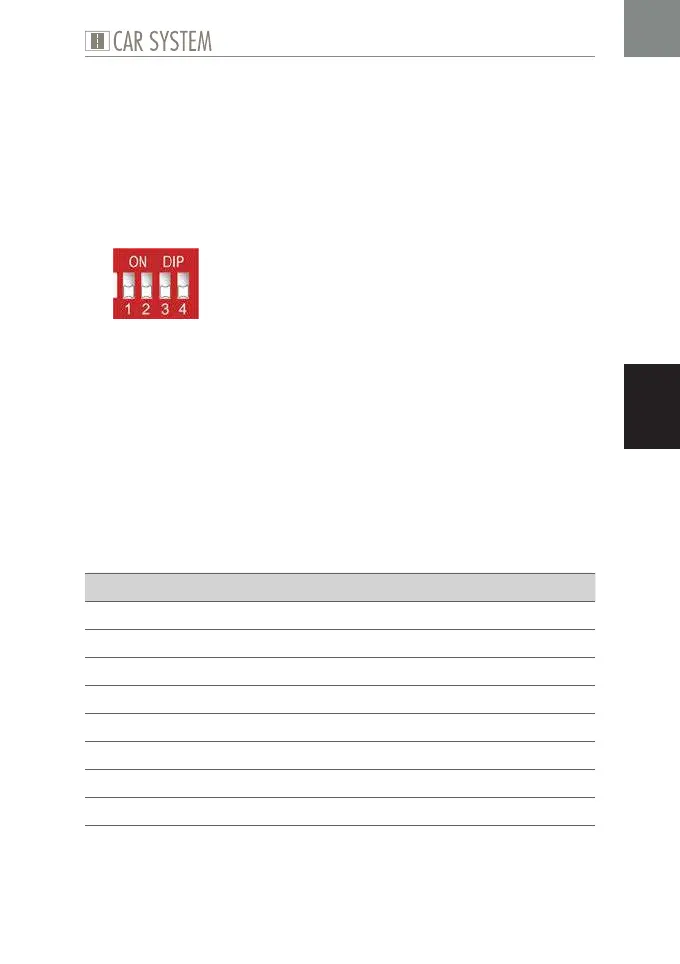

DIP switch of Traffic-Control unit
Fig. 5: DIP switch
The particular switching procedures allocated to the respective programs
will be presented in the tables reproduced in the pages that follow. You will
find among them a few simple switching operations that merely differ as
to the periods of time used, but also more complex switching operations
that involve several inputs and outputs such as, for instance, a bus stop or
a level crossing.
Abbreviations used
First, familiarize yourself with the definitions of the abbreviations used in the
various tables reproduced in this instruction manual:
Abbreviation Meaning
AB Branch-off junction
BL Flashing light for level crossing
HST Main stop sections
K Component of your choice
P Parking space
P/FR Parking space/Release push button
ST Stop section
X Universal use possible
Table 5: Abbreviations used
