6. Traffic-Light-Control
Available from FALLER are different models that feature lighting elements
simulating traffic scenarios, and that perfectly match the Traffic-Light-Con-
trol unit. These are »2 Traffic lights with Stop sections«, Art. 161656, »2
LED Traffic lights«, Art. 161841 and »2 LED Warning lights«, Art. 161830
for the H0 track gauge, as well as »2 Traffic lights with Stop sections«, Art.
162056 and »2 LED Traffic lights«, Art. 162061 for the N track gauge. You
will find further recommendations in the instructions for use supplied with
the respective articles. The present chapter gives you an outline of the vari-
ous possible connections.
Example of connection: Connecting traffic lights and stop sections to the
Traffic-Light-Control unit

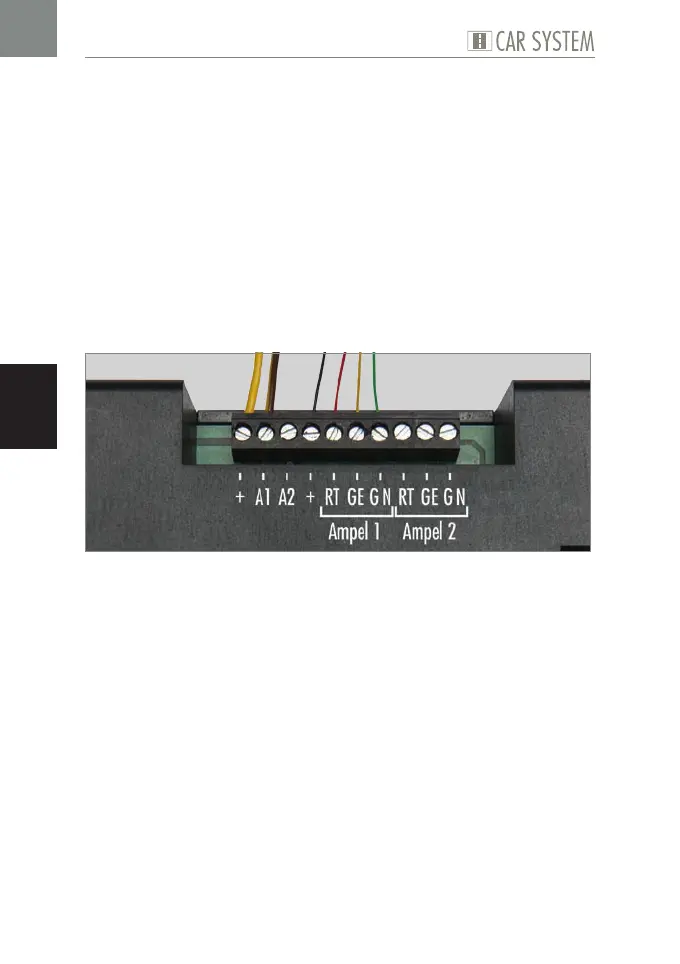

Fig. 21: Connecting traffic lights and stop sections
X
Connect the coloured wires of the traffic lights to the positions provided.
Red wire to “RT”, yellow wire to “GE”, green wire to “GN”, see Fig. 21.
X
Connect the black wire of the traffic lights to "+", see Fig. 21.
The component is now connected.
X
Connect the cables of the stop sections to the positions provided. Brown
wire to "A1" or "A2" respectively, yellow wires to "+", see Fig. 21.
The stop sections are now connected.
ADVICE: You may connect up to two traffic lights [“Ampel” in German] to
each of the outputs “Ampel 1” and “Ampel 2”.
