8

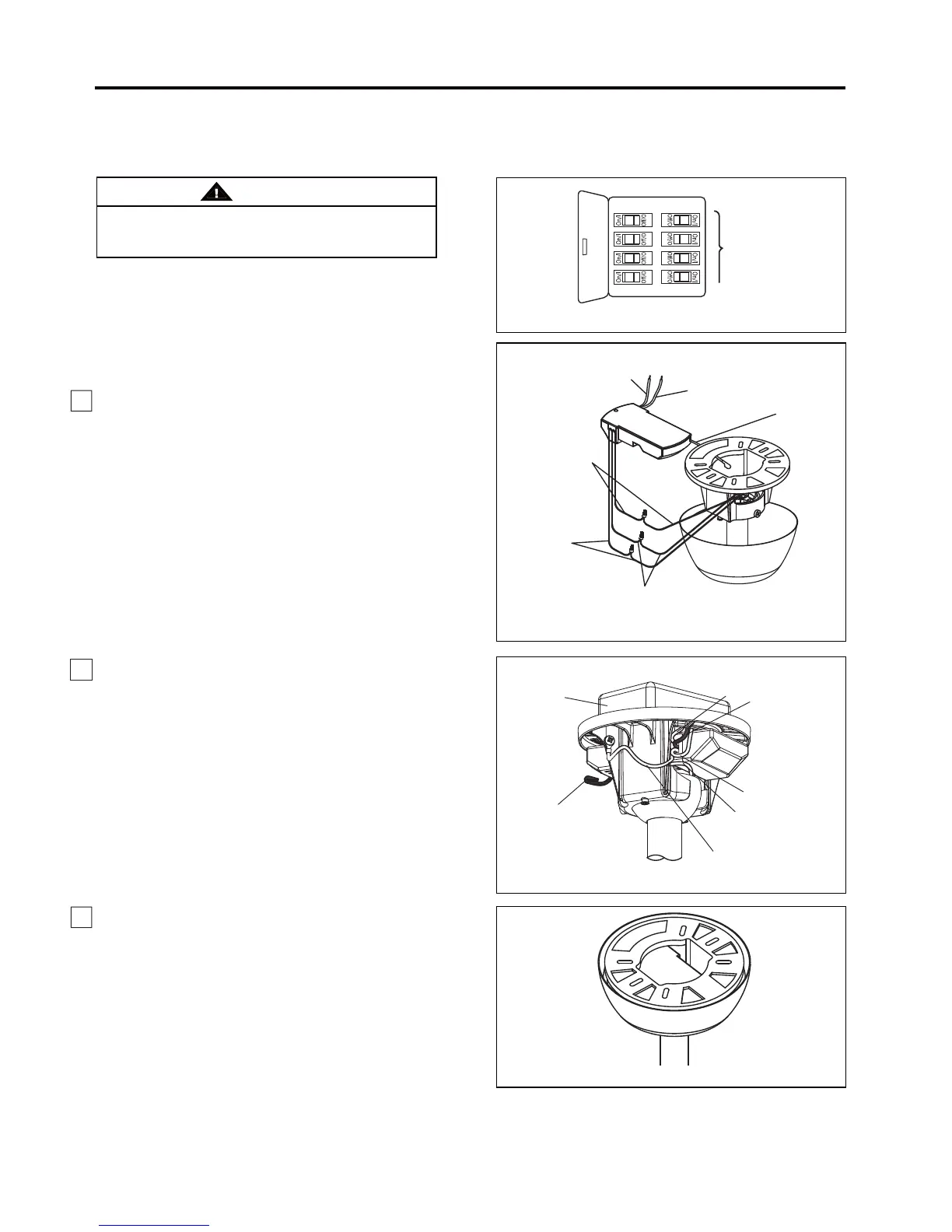

How to Wire Your Ceiling Fan
CAUTION: INCORRECT WIRE CONNECTION COULD
DAMAGE THIS RECEIVER.
NOTE: If fan or supply wires are different colors than indicated, haYHWKLVXQLWLQVWDOOHGE\DTXDOL¿HGHOHFWULFLDQ
1. Connect wires using connectors as shown in Figure 2.
3. Once the connection has been made, slide the receiver
into the hanger bracket, taking care not to pinch the wires.
The canopy comes up to cover the receiver and hanger
bracket. (Figure 4)
Figure 2
Figure 4
MAIN FUSE BOX
Figure 1
BLACK
(TO MOTOR L)
BLUE
(FOR LIGHT)
WHITE
(TO MOTOR N)
BLACK
(AC IN L)
WHITE
(AC IN N)
ANTENNA
BLACK
2. After connections have been made, turn leads
upward and carefully push leads into the outlet box,
with the white and green leads to one side of the
box and the black leads towards the other side.
The wires should be spread apart with the grounded
conductor and the equipment-grounding conductor
on one side of the outlet box and the ungrounded
conductor on the other side of the outlet box
(Figure 3).
Figure 3
BLACK
BLUE
GREEN - Ground Wire From
Hanger Bracket
BLACK-ANT
LISTED
OUTLET BOX
GREEN - Ground Wire
From Hanger Ball
WHITE
To avoid possible electrical shock, be sure electricity
gniriw erofeb xob esuf niam eht ta ffo denrut si
(Figure 1).
WARNING
NOTE:
If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice, as
LWPXVWEHJURXQGHGIRUVDIHRSHUDWLRQ
