This Manual is Designed to Make it as Easy as Possible
to Assemble, Install, Operate, and Maintain This Ceiling Fan
Unpacking Instructions
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
steps have been completed and will be helpful in fi nding your place should you be interrupted.
Wiring and connectors must be of type required by
local regulations. The minimum wire would be a 3-
conductor (2-wire with ground).
Tools Needed for Assembly Materials
NOTE: If you are uncertain of part description, refer to
exploded view illustration. (Figure 1, page 11)
3

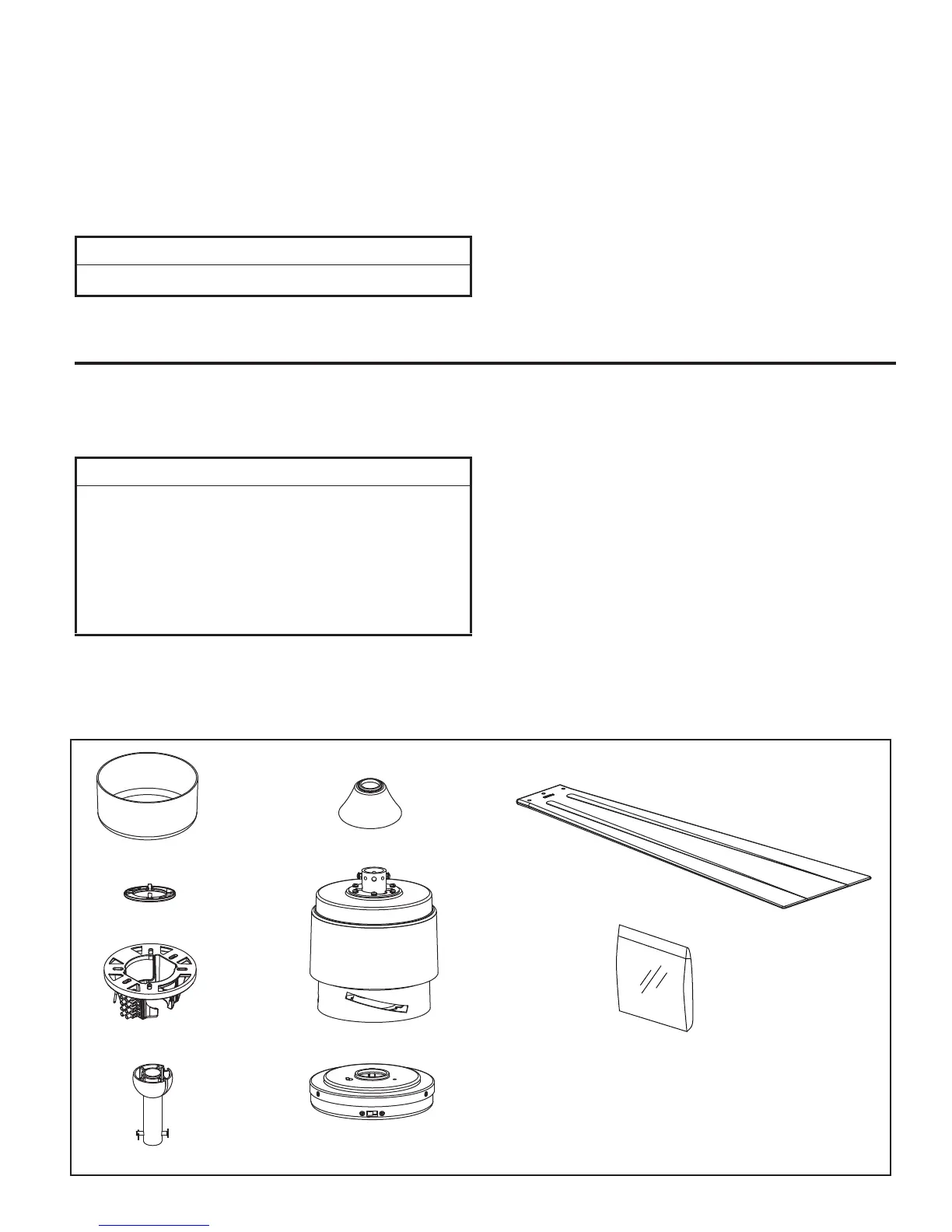

1. Check to see that you have received the following
parts:
• Fan Motor Assembly
• Downrod/Hanger Ball
Assembly
• Hanger Bracket
• Ceiling Canopy
• Canopy Screw Cover
• Motor Coupling Cover
• Switch Cup Cover Assembly
Blade Set •
• One Phillips head screwdriver
(supplied)
• One stepladder
• One small blade
screwdriver
• One wire stripper
• Hardware bags:
–
3
/16-24 x 13 mm (blade to motor hub)
washer-head screws & fiber washers
– Phillips screwdriver, 10cm
– Blade Balance Kit
▲
WARNING
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not
designated for use with this product could result in
personal injury or property damage.
IF ANY PART IS DAMAGED OR MISSING,
CALL: 13 00 46 9 3 26
▲
WARNING
This fan must be installed be a licensed electrician.
Switch Cup Cover Assembly
Hardware Bags
Fan Motor Assembly
Downrod/
Hanger Ball
Assembly
Hanger Bracket
Ceiling Canopy
Blade Set
Motor Coupling Cover
Canopy
Screw Cover
