Installation examples
Example only – duct configuration may differ depending on the model.
It is the responsibility of the installer to ensure all ductwork is sized and installed as designed to ensure the system will perform as intended. All air
movement devices have a performance curve. The amount of air (CFM) that an ERV will deliver is directly related to the total external static pressure
(E.S.P.) of the system. Static pressure is a measure of resistance imposed on the blower by length of duct work/number of fittings used in duct work,
duct heater etc.

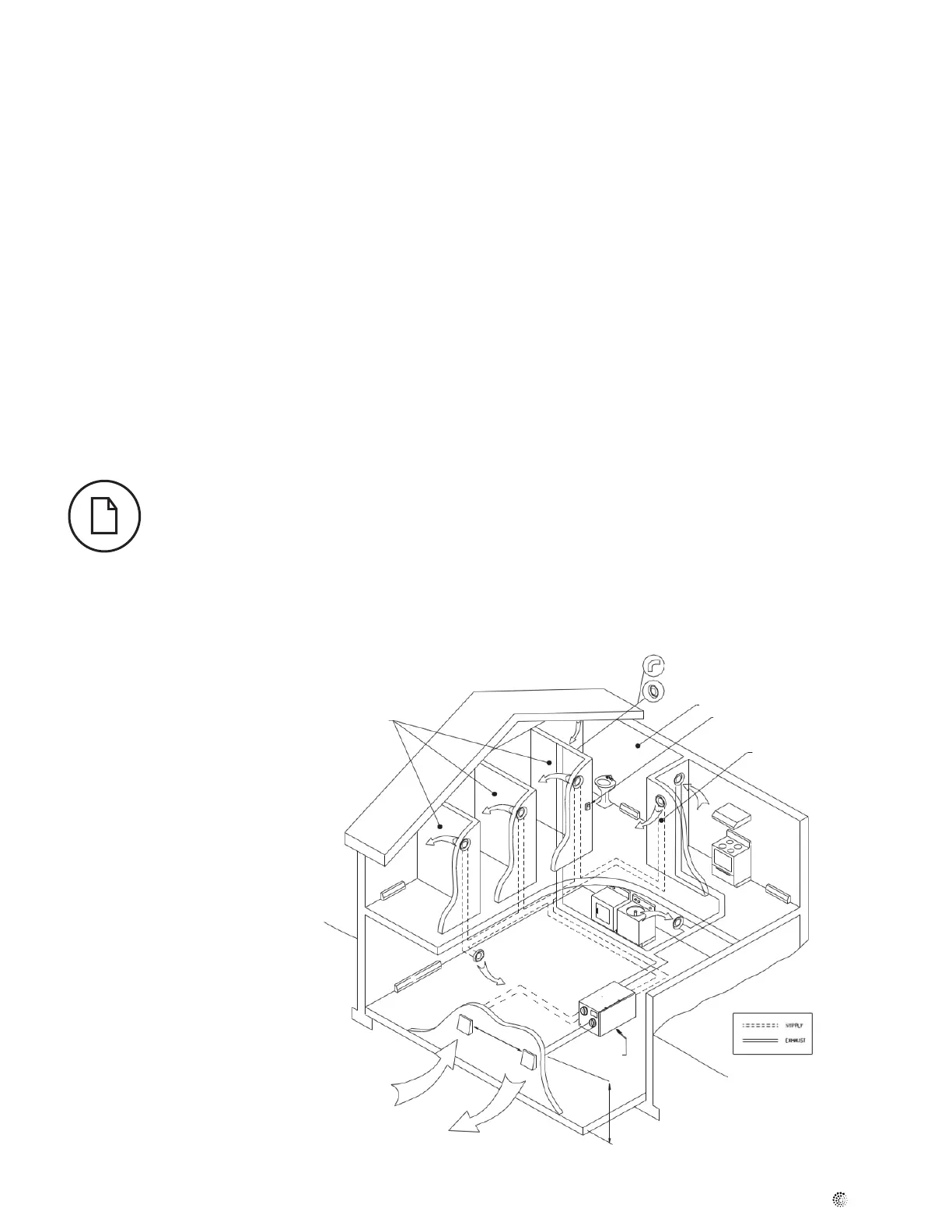

FULLY DEDICATED SYSTEM
BEST FOR NEW CONSTRUCTION
Bathroom
Bedrooms
Fresh Air
Exhaust Air
Central Control - optional
Fresh air to living room
Exhaust CG 4 (4” Adjustable Grill)
FEL 4 (4” Miter Elbow)
460 mm
3m
ERV
1. Stale air is drawn from key areas of the home (bathroom, kitchen,
laundry room).
2. Fresh air is distributed through habitable rooms in the house
(bedrooms, living room).
3. The ERV's airflow must be balanced on site using the procedure
found in section "AIRFLOW BALANCING"
