9

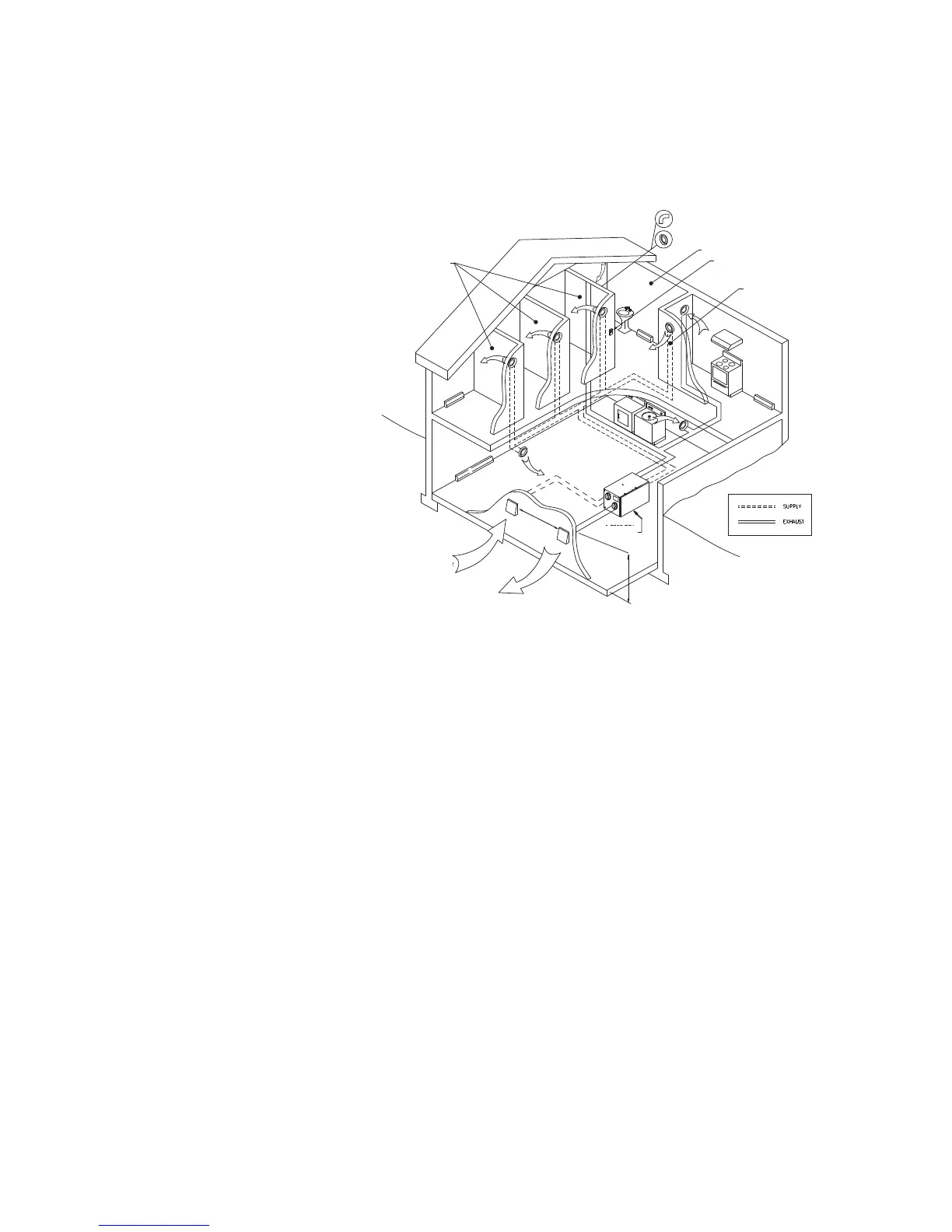

INSTALLATION EXAMPLES
Bedrooms
Fresh Air
Exhaust Air
Central Control - optional
Fresh air to living room
Exhaust CG 4 (4” Adjustable Grill)
FEL 4 (4” Miter Elbow)
Bathroom
460 mm
3m
HRV
Example diagram only - Duct configuration may change depending on model
Fully Dedicated System - RECOMMENDED
(New Construction)
NOTES:
1. Stale air is drawn from key areas of the home (bathroom, kitchen,
laundry room).
2. Fresh air is distributed through habitable rooms in the house (bed-
rooms, living room).
3. The HRV's airflow must be balanced on site using the procedure
found in section "AIRFLOW BALANCING"
