Fantech VHR150 - Low Voltage Control Systems

15
fantech

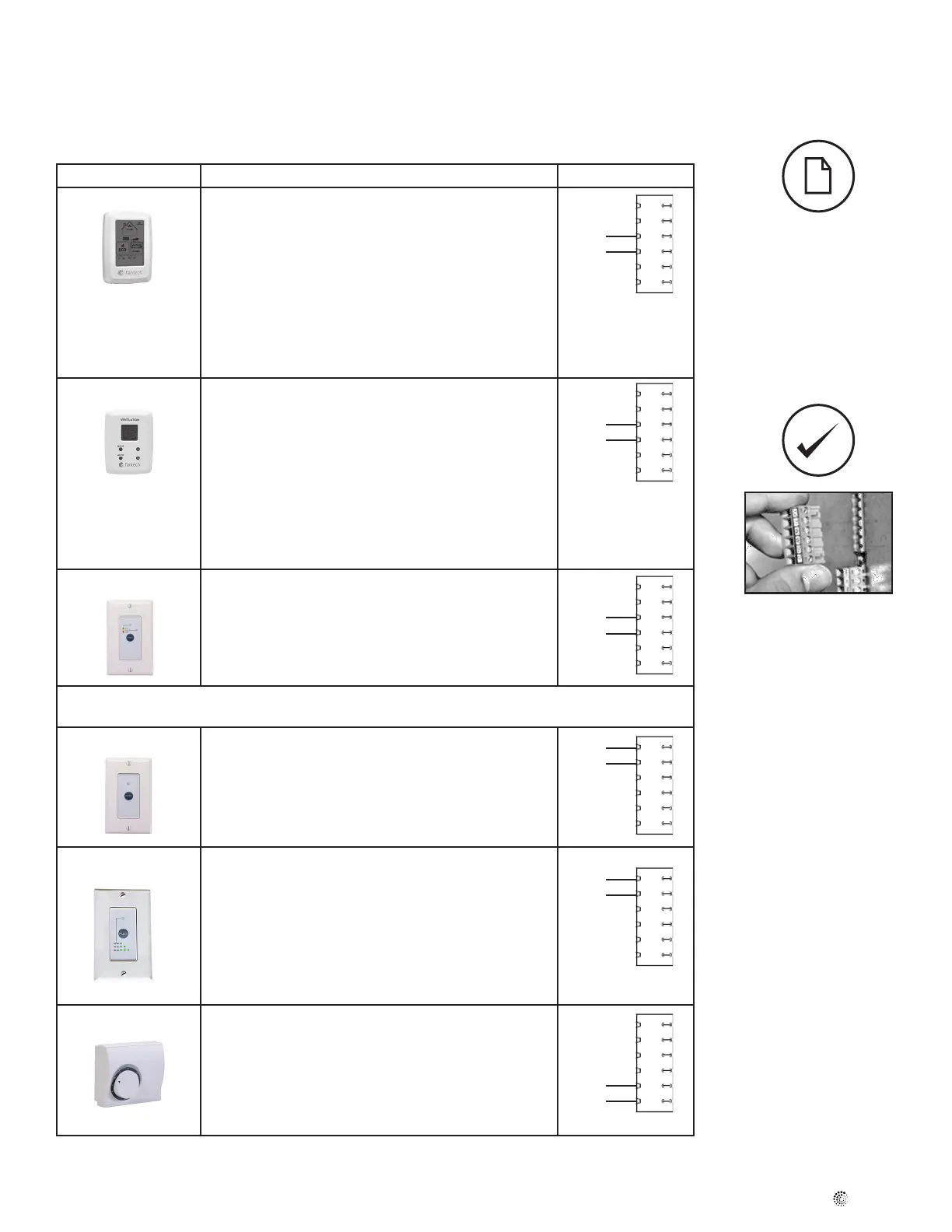

Low Voltage Control Systems
* Please see instruction manuals for individual controls for proper wiring and set up of control systems.
CENTRAL CONTROLS
These control options can only be used individually
CONTROLS FEATURES CONNECT TO
ECO-Touch • Our most complete, yet easy to use control system
• Sleek design with backlight touchscreen LCD
• ECO mode selects the best operating mode and speed for the
season, minimizing energy use associated with ventilation
• Set preferred indoor relative humidity range and ventilation
mode for day and night conditions
• No battery to replace, all programmed settings are retained
during power outage
• Maintenance reminder indicator
• Error code messages reduce troubleshooting time
EDF7
• MODE button provides 3 modes of operations: Ventilation ,
Recirculation and Standby
• User selected fan speed: Reduced, Medium, Normal and
20 minutes per hour
• AUTO setting allows the homeowner to deactivate the
dehumidistat
• When the humidity exceeds the desired setpoint, the venti-
lation system operates at Normal speed.
• Once the desired humidity level is achieved, your ventilation
system resumes to its previous mode of operation
EDF1 • Press button once for continuous Reduced speed
• Press button twice and the unit will cycle 20 minutes ON/
40 minutes OFF and repeat
• EDF1 – Press button a third time and the system will run
continuously on HIGH speed
AUXILIARY CONTROL
These controls can be paired
RTS2*
• 20- minute timer with LED light
• Boosts system to high speed with the touch of a button
• Up to 5 can be used in one system
• Use in bathroom, kitchen, laundry room
RTS5
• 20/40/60 minute timer with LED light
• Boosts system to high speed with the touch of a button
• Up to 5 can be used in one system
• Use in bathroom, kitchen, laundry room
MDEH1
• Rotary dial Dehumidistat
• Multiple units can be used
• We recommend setting the relative humidity above 80%
during the summer
1. Ensure that unit is not
plugged when connecting
the control
2. Recirculation mode is only
available with the “R” sufx
at the end of the model
number.
The wiring connectors
can be removed for
easier connection.
*Maintain polarity
between control
and HRV
(+ → + ; - → -)
W
W
W
W
W
W
+T
-T
+T
-T
D
D
