GB-35GB-34
current edition of the Gas Safety Installation
and Use Regulations.
• It is in your interest and that of safety to
ensure compliance with the law.
• In the UK, GASSAFE registered installers
work to safe standards of practice. e hob
must also be installed in accordance with the
current edition of BS 6172. Failure to install the
cooker correctly could invalidate the warranty,
liability claims and lead to prosecution.
GAS SPECIFICATION
ELECTRICAL CONNECTION
Model
No.
Gas type
&
pressure
Heat input and orice size
marked(mm)
Wok
burner
Rapid
burner
Semi-
rapid
Auxi-
liary-
rapid
TGV60N/C
/
3.0kW
(218g/h)
1.75kW
(127g/h)
1.0kW
(73g/h)
G30
29mbar
/ 0.87 0.66 0.5
G20
20mbar
/ 1.30 1.0 0.78
• is appliance must be earthed.
• is appliance is designed to be connected to a
220-240V, 50Hz-60Hz AC electricity supply.
• e wires in the mains lead are coloured in
accordance with the following code;
– Green/yellow = Earth
– Blue = Neutral
– Brown = Live
• The wire which is coloured green and yellow
must be connected to the terminal which is
marked with the letter E or by the earth symbol.

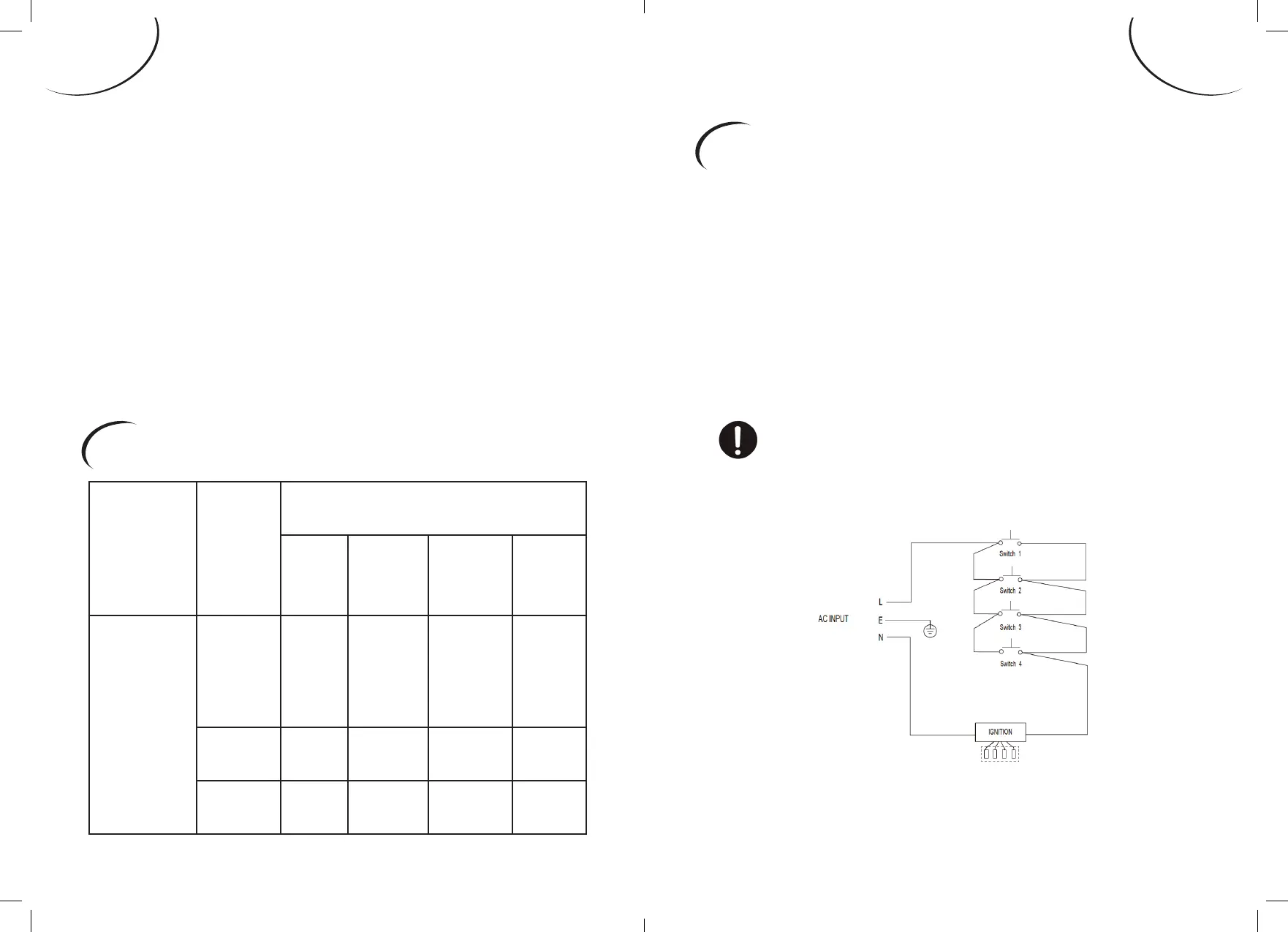

WIRING DIAGRAM
When the power cord is damaged it must be
replaced by the manufacturer to produce, customer
service agent or similarly qualied personnel.
