98
SECTION 10 -- ENGINE -- CHAPTER 1

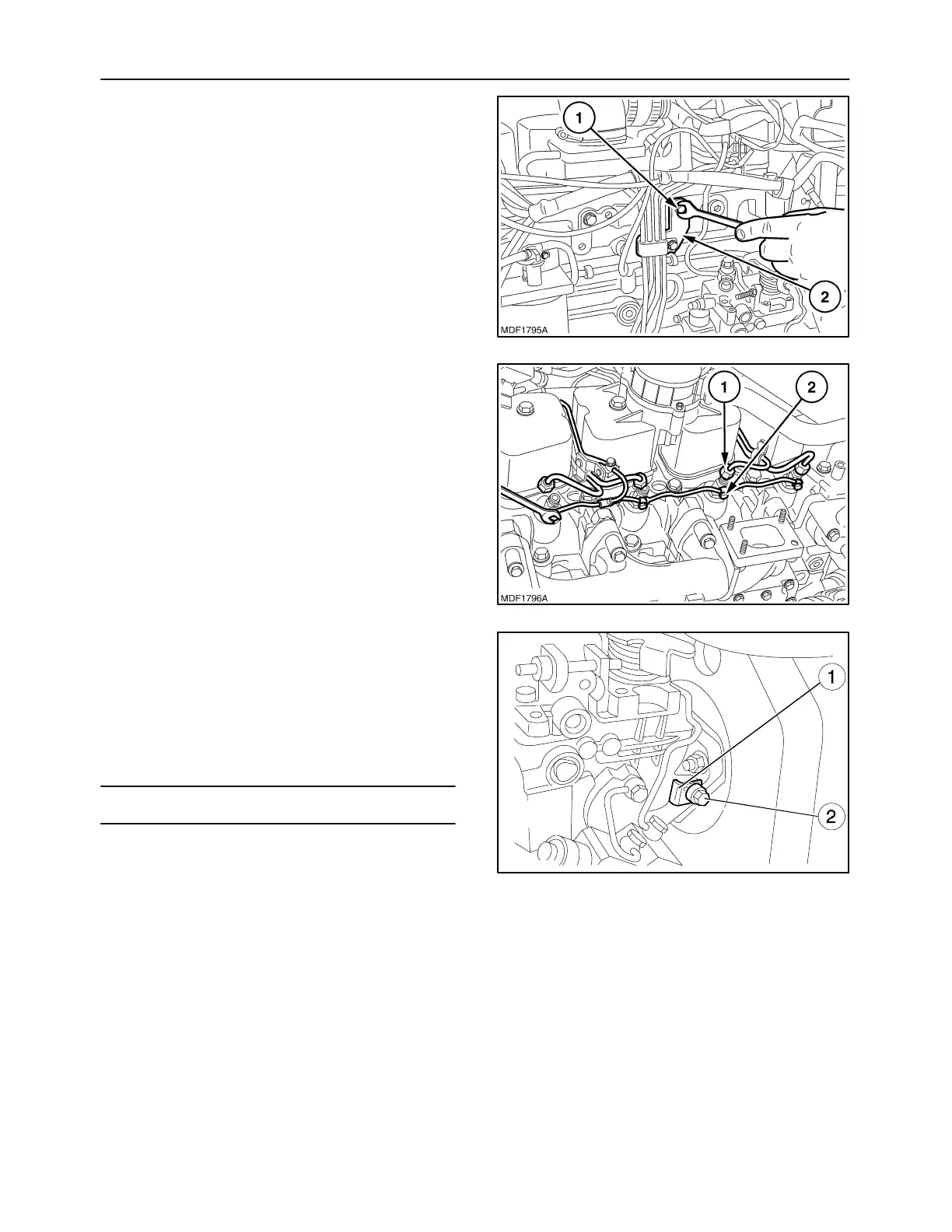

10. Remove the retaining bolts (1) and the three
brackets (2) retaining the pipes, inserted on the
injection pump/injector connection line.
210
11. Remove the fittings (1) of the injector diesel deliv-
ery pipes and the fittings (2) of the injection pump
diesel return pipe, then detach the pipes.
12. Lock the engine flywheel with appropriate
means.
211
13. Before removing the injection pump, do the tim-
ing and lock the engine flywheel with cylinder
no. 1 at T.D.C. as indicated on page 100, using
tools 380000988 and 380000732. Then loosen
the bolt (2), remove the “L” spacer (1) and lock
the screw (2) in order to keep the pump in time
with the engine flywheel.
NOTE: Keep the “L” spacer with the pump casing.
MIF0920A
212
