SECTION 10 -- ENGINE -- CHAPTER 1
97

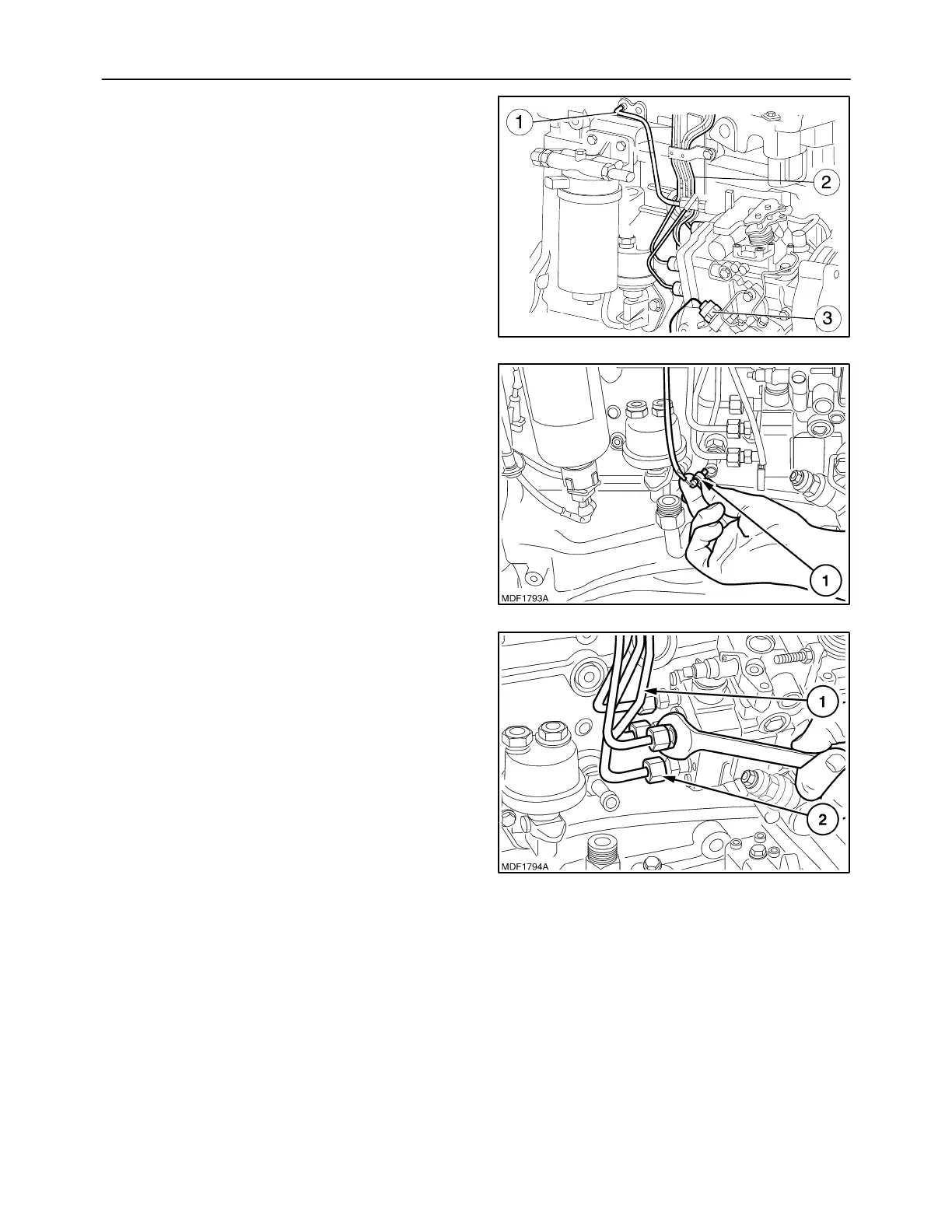

7. Remove the fittings of the pipes (2) connecting
the injection pump--injectors, the pipe (1) con-
nected to the thermostarter device and the elec-
trical connection of the engine stop device (3).
MIF1163A
207
8. Disconnect the electrical connection (1) for mea-
suring the engine oil pressure.
208
9. Remove the four fittings (2) connecting the injec-
tion pump / injectors and the pipes (1).
209
