and the screws fixing the air cleaner, and
then remove the air cleaner.

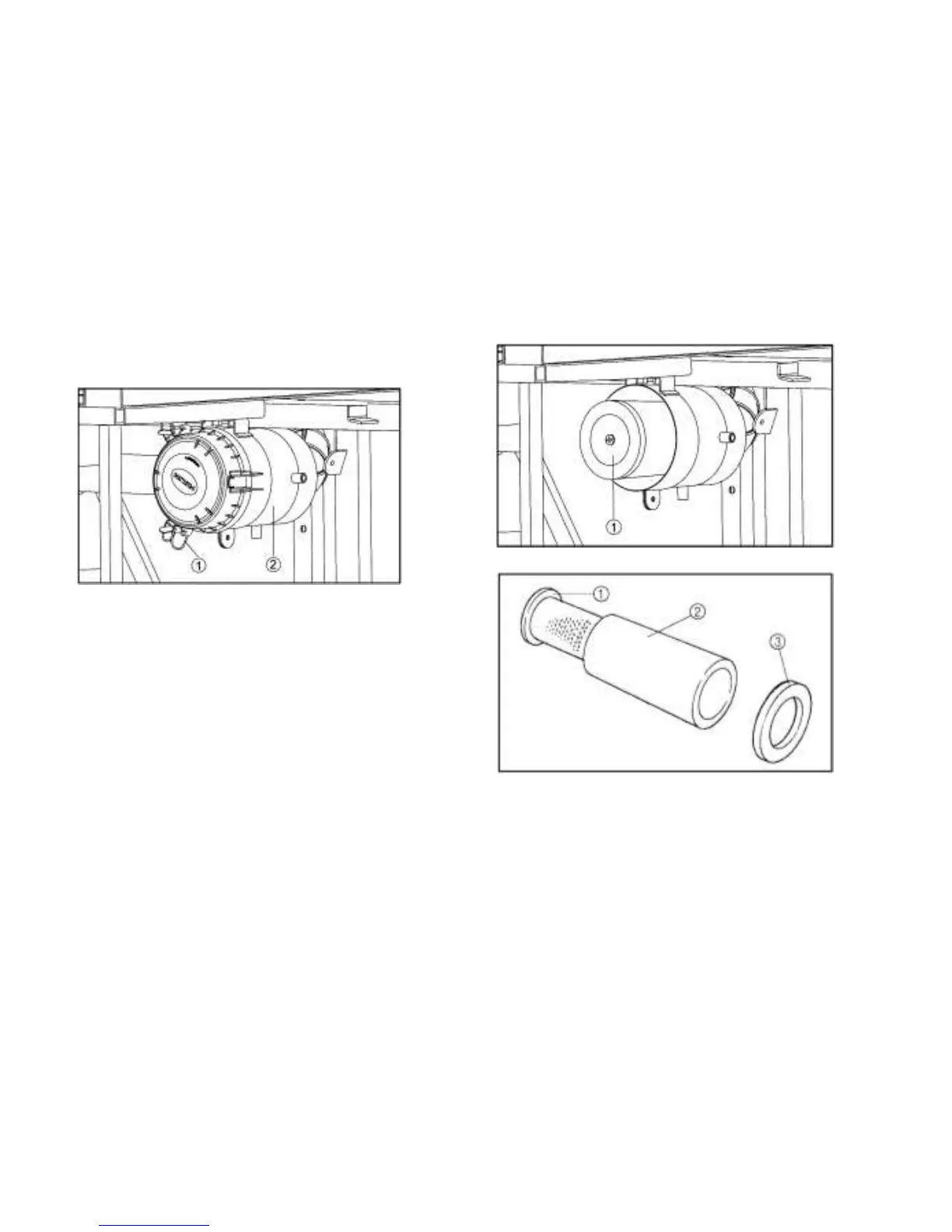

1. Holder (×3) 2. Air filter case cover
4. Remove the air filter element.
5. Remove the sponge material from its
frame.
1. Air filter element
1. Air filter frame 2. Sponge material
3. Element retaining plate
