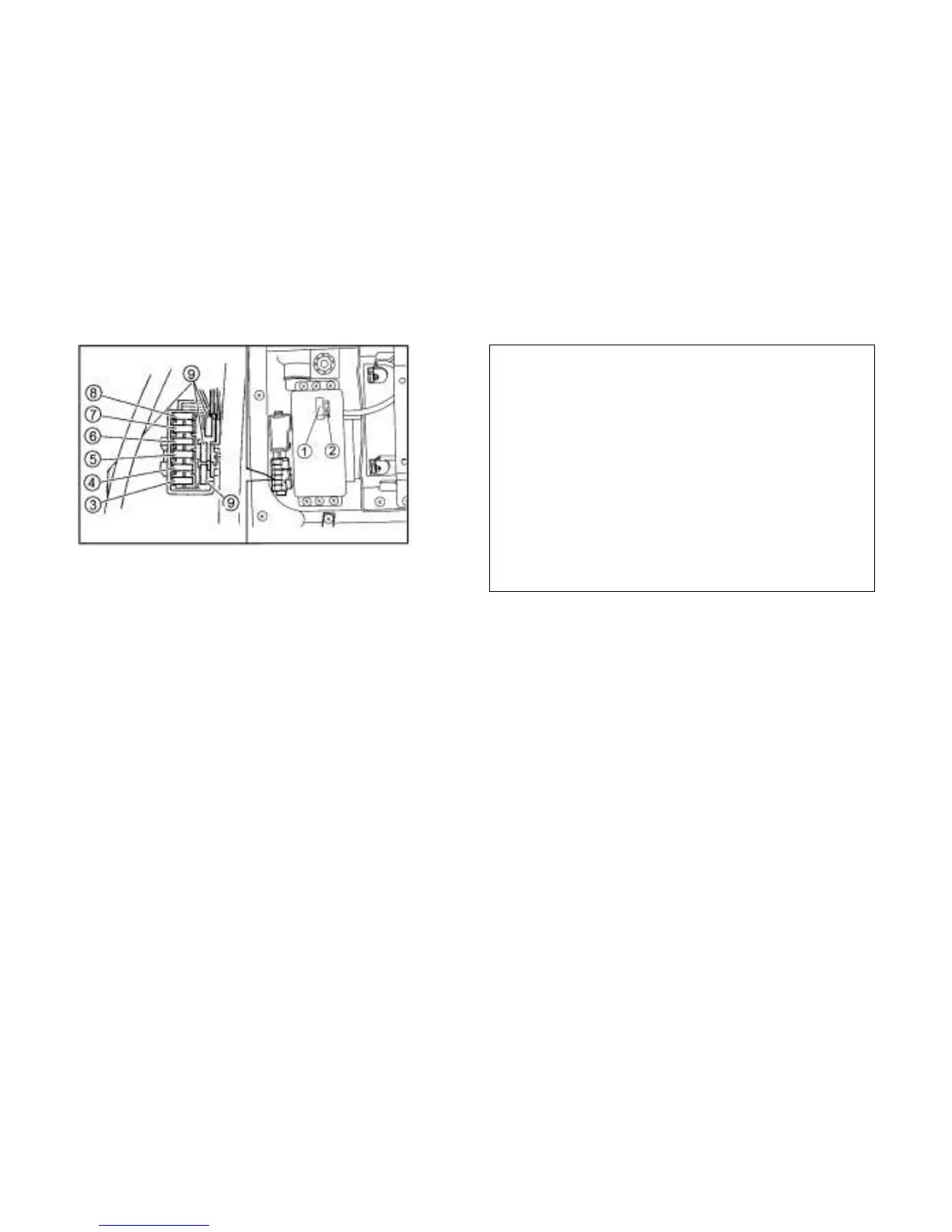

1. Main fuse 2. Spare main fuse

3. Headlight fuse 4. Ignition fuse

5. Auxiliary DC jack fuse

6. 2WD/4WD Fuse

7. Signaling system fuse

8. Meter Fuse

9. Backup fuse (for odometer and clock)

Specified Fuse:

Main Fuse:

Headlight Fuse:

Ignition Fuse:

Auxiliary DC Jack Fuse:

Signaling System Fuse:

Carburetor Warmer Fuse:

2WD/4WD Fuse

Backup Fuse:

30.0A

15.0A

10.0A

3.0A

10.0A

4. Turn the key to “ON” and turn on the

electrical circuit in question to check if

the device operates.

5. If the fuse immediately blows again, have

a dealer check the electrical system.

6. Install the battery compartment cover.

7. Close the hood.
