FAS-CAM F701 - Page 15

Front View
GPS
GPS module
Power Cable Port %
(Type-C USB 5.2V)!
Used to plug in the Power
Source Cable ONLY
Angle Adjustment!
Modify the Front Camera view
angle (Forward: 40°, Back:
24.5°, Left: 1°, Right: 1°)
Rear View
Adhesive Tape Side!
Place a 3M Tape on the
top and mount the Dash
Cam to a designated
location
Pin Connecter Side!
Attach the connecter
pins into the F701-DR
Front Camera Bracket
Slot
Length%
47-mm (1.85-inch)
F201-IR
Dimension
Length
Width
Height
Connector
Millimeter
47
38
34.48
36.12
Inch
1.85
1.49
1.36
1.42
Height%
34.48-mm (1.36-inch)
Connector%
36.12-mm (1.42-inch)
Width%
38-mm (1.49-inch)
3: Product Overview
3
3.2 Part Names
‣

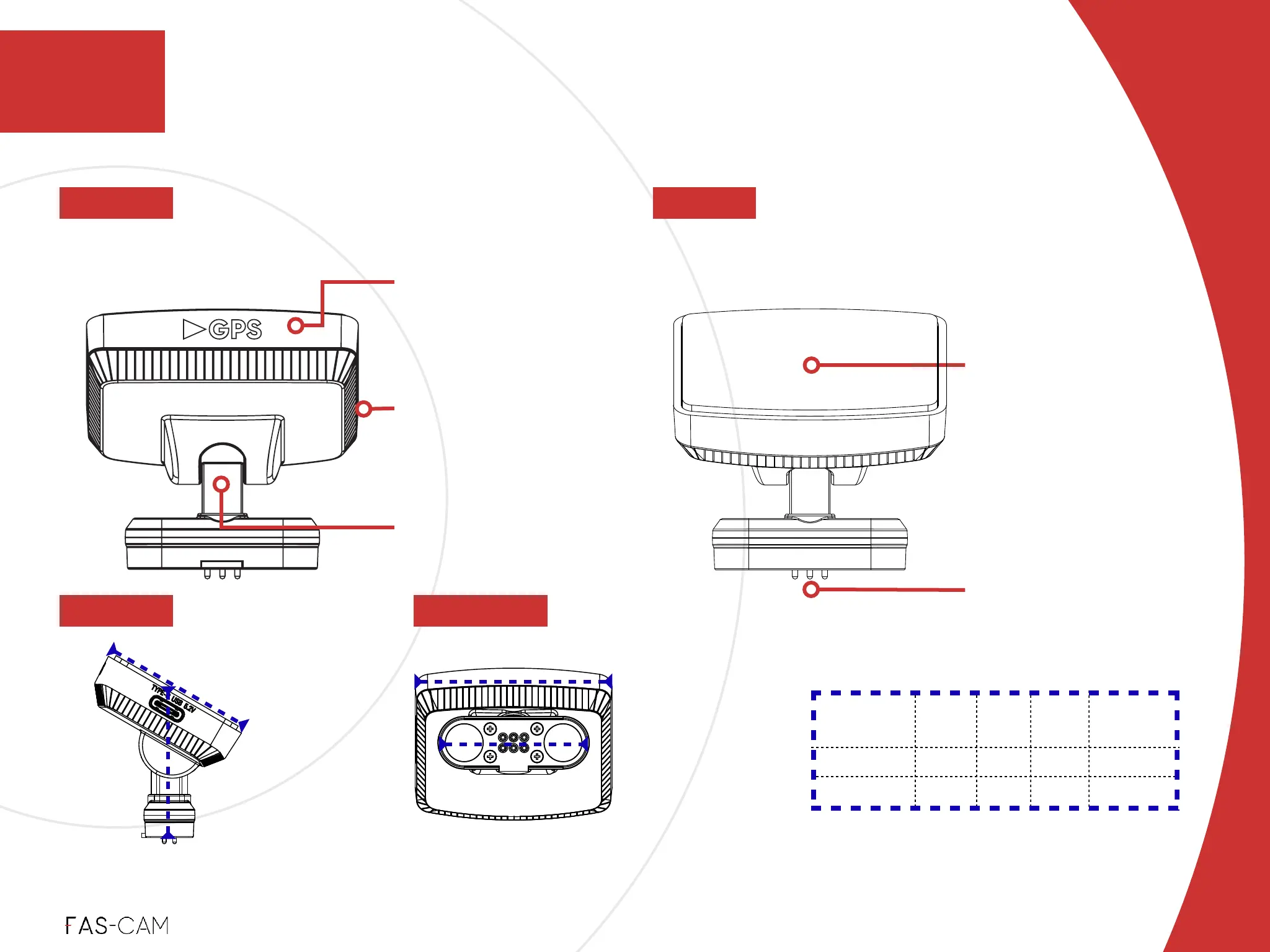

3.2.5 F701-DR Front Camera Dash Camera Mount and Dimension
Product Overview
Side View
Bottom View
