Installation
‣

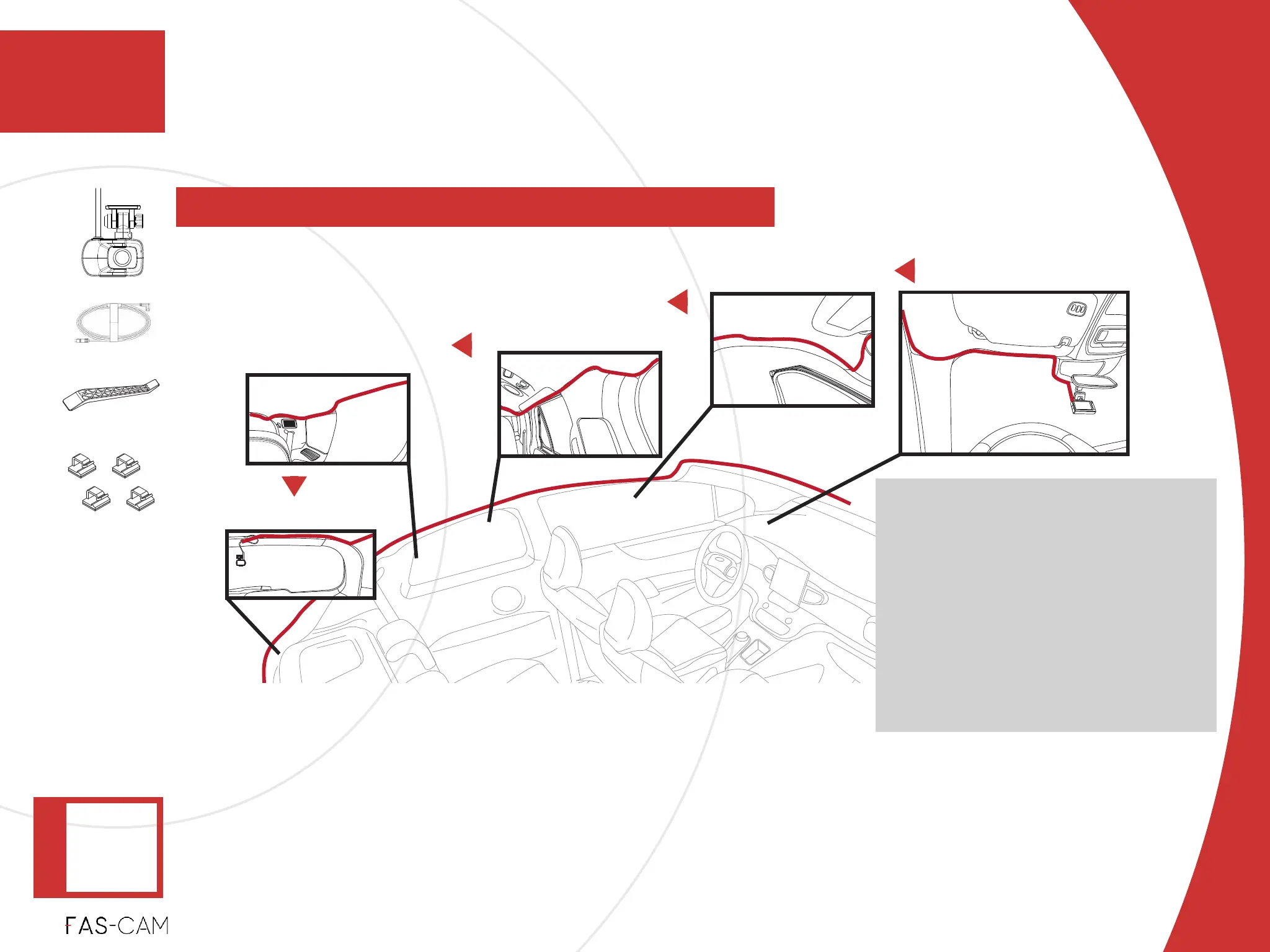

4.2.3 Rear Camera Wiring Route and Placement
‣
Connect the rear camera USB-C Extension Cable to the front camera.
‣
Place the rear camera wire in between the vehicle body and the vehicle interior trim by
using the cable tucker tool provided from the installation kit.
*Skip this step if you only purchased the F701- DR front camera.
4.2 F201-IR Rear Camera Installation
4
4. Installation
Ceiling TrimDriver’s Interior Trim
Back Trim
Interior Trim
START
Trunk Trim
Depending on the either the driver
side or the passenger side that you
choose to route the front camera
power cable, we recommend that you
route your rear camera data cable
through different side since the rear
camera data cable is about the some
size as the power cable, which you
won’t be risking not having enough
space between vehicle body and
interior trim and weather stripping.
‣
