FASTRON. VC-210 - SMS Activation Programming; Entering SMS Programming Mode; Setting SMS Activation Times

Process Controllers
FAST Lit. Part No. 229-51311 Rev. E (MANAGER) 24SEP2010 Page 14
 2005-2010 Food Automation – Service Techniques, Inc. All Rights Reserved
This document contains confidential information. The dissemination, publication,
copying, or duplication of this document without prior written authorization is
strictly prohibited.
4
Exit Clock/Date
Programming
OR
• Scroll to Exit.
• Press the “P” key to return to idle mode.
SMS ACTIVATION PROGRAMMING (6647)

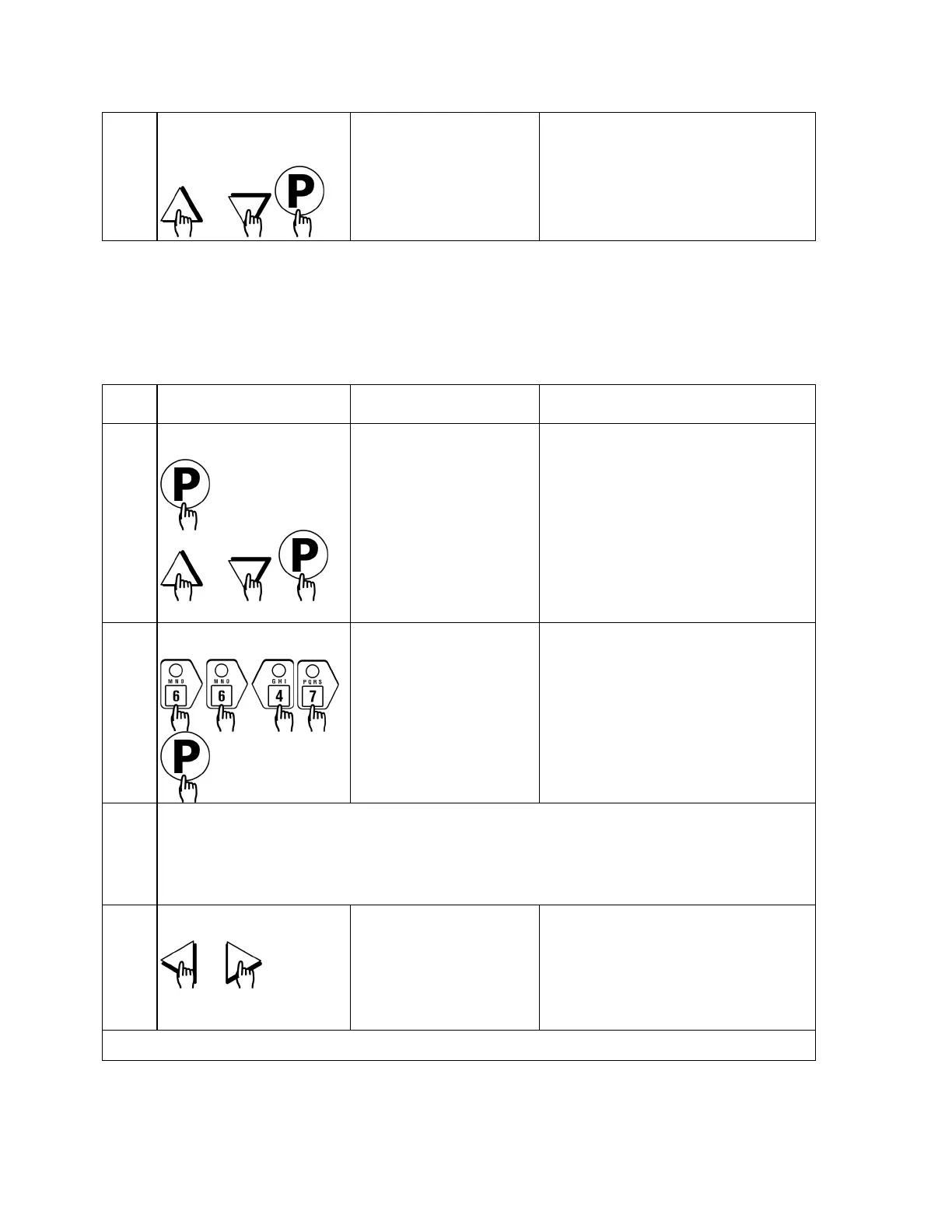

KEY PRESS
DISPLAY
ACTION
1
Enter Program mode
OR
SMS ACTIVATE
• To enter programming mode, press and
hold the "P" key for 3 seconds.
• Scroll to “Programming.”
• Press the “P” key.
• The display will prompt user to enter a
pass code.
2
Enter Pass Code
ENTER CODE
****
• Enter pass code 6 6 4 7.
• Press the “P” key to lock in your entry.
• Scroll to “SMS Activate.”
• Press the “P” key.
3
Setting SMS Activation Time
NOTE: Depending on the scheme entered (see below), one of four SMS Activation times will be
selected.
3a
SCHEME 1
OR
Set SMS Timing
For SMS use:
• Event 1 = 7:00 A.M., 30 Min. Duration,
0 Hour Delay
Event 2 = 2:00 P.M., 30 Min. Duration, 3
Hour Delay
OR
