2-9
Chapter 2: Motherboard information

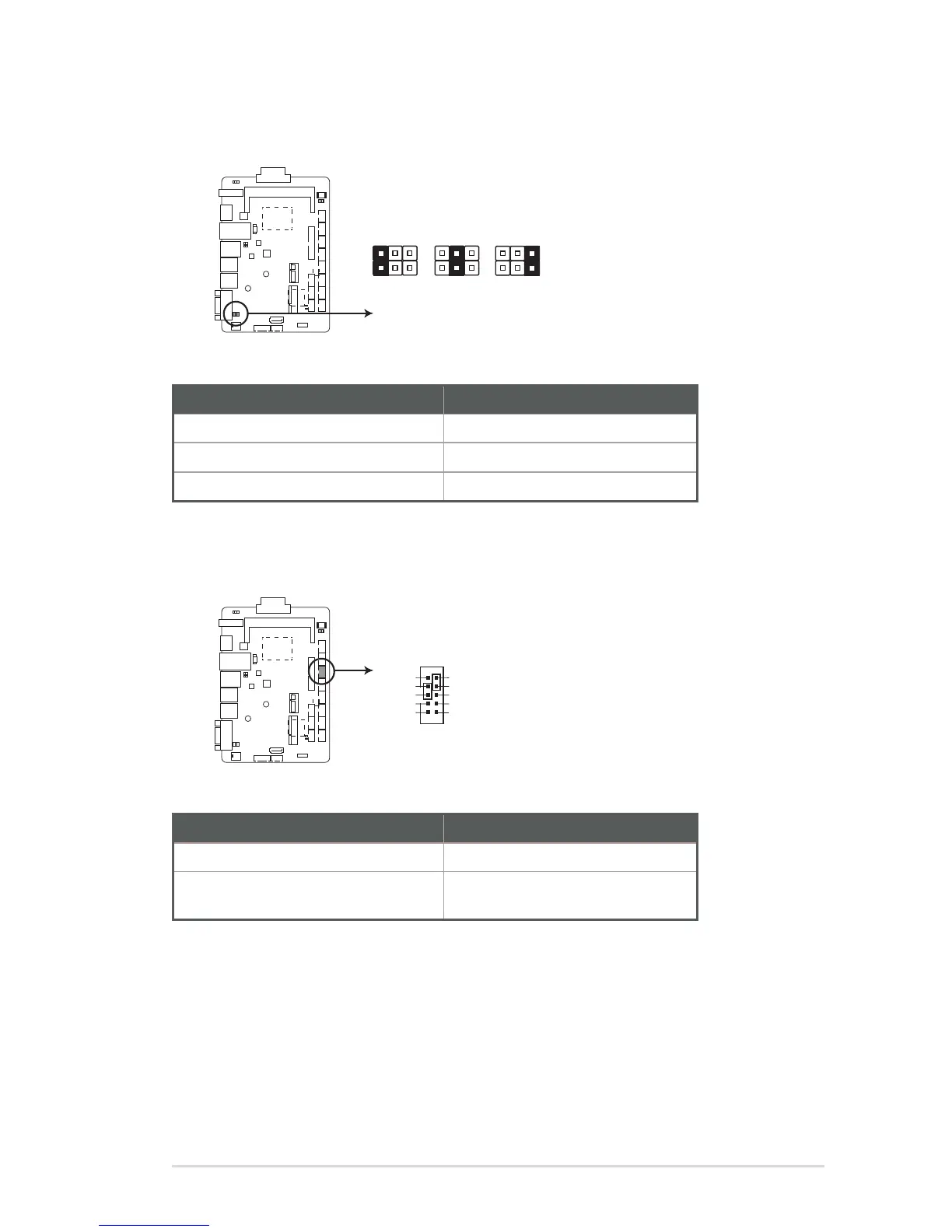

2. COM1 RI/+5V/+12V selector (6-pin COM1_V1)
3. LVDS panel voltage selection (10-pin LVDS_CTL)
Setting Pins
+12V 1-2
+5V 3-4
RI(Default) 5-6
Setting Pins
Set+V_PANELto+3V(Default) 2-4
SetLVDSbacklightcontroltoDC
mode(Default)
3-5
COM1_V1
5
6
3
4
1
2
+12V +5V RI
(Default)
FAY-003
FAY-003 COM1 RI/+5V/+12V selection
FAY-003
FAY-003 LVDS panel voltage selection
LVDS_CTL
+V_PANEL
+3V
LVDS_PWM
+3V_EPROM1
GND
+5V
BKLT_CTRL_VR1
VCON
EDID_CLK
EDID_DAT
PIN1
Pin 2-4: Set +V_PANEL to +3V (default)
Pin 3-5: Set LVDS backlight control to DC mode (default)
