Faytech FAY-003 - Internal Connector Descriptions

2-11
Chapter 2: Motherboard information
2.7.2 Internal connectors

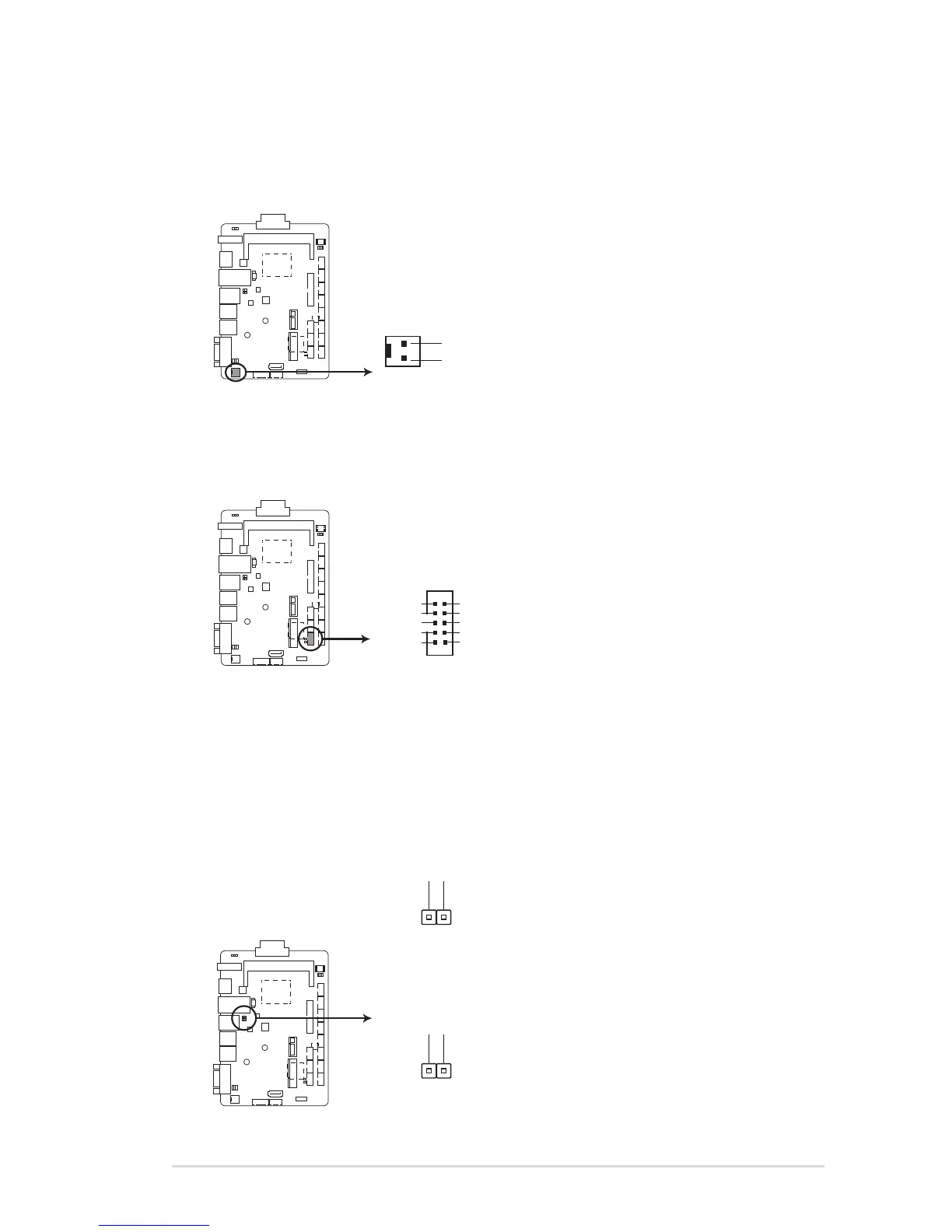

1. 12V DC power connector (2-pin DC_PWR)
Thisportconnectstoa12VDCpoweradapter.
2. SIM card connector (10-pin SIM1)
ThisportconnectstoaSIMcardreadermodule.
FAY-003
FAY-003 12V DC power connector
PIN 1
GND
+12V
DC_PWR
FAY-003
FAY-003 Internal SIM card connector
UIM_CLK
UIM_RESET
UIM_PWR
NC
NC
UIM_DATA
UIM_VPP
GND
NC
NC
SIM1
Pin 1
JL1
PIN1
LAN1_VC3_20 LAN1_VC4_20
FAY-003
FAY-003 Internal POE LAN connectors
JL2
PIN1
LAN1_VC1_20 LAN1_VC2_20
3. Internal POE LAN connectors (2-pin JL1, JL2)
ConnectthePOELANpowercablestothisconnector.
