Faytech FAY-003 - Motherboard Component Layout

FAY-003
2-2
FAY-003
Super
I/O
COM1_V1
11.5cm(4.53in)
DDR3L_DIMM_A1 (64bit, 204-pin module)
LAN1
DP1
HDMI1
LAN2
USB3_2
USB2_1
CLRTC1
JL2
JL1
PCIEX1
LED2
LED1
CSI1
SATA6G1
ALC3236
USB3_3USB3_1
LVDSEDP
LVDS_CTLINV1DIOAAFPCOM2
COM34
SIM1 SPDIF_AMP
F_PANEL1
SPI1
16MB
BIOS
ASM
1442K
ASM
1182e
Realtek
8111G
Realtek
8111G
COM1
BATTERY1
SATA_PWR1
INV2
DC_PWR
2230_M2E
NUT_2230_M2E
NUT_WLAN1
MINI_CARD1
Intel
®
processor
16.5cm(6.5in)
1 2 3 4
12
13
8
9
11
10
7
6
20
21
15 1418919
16 17
5
22
24
23
25

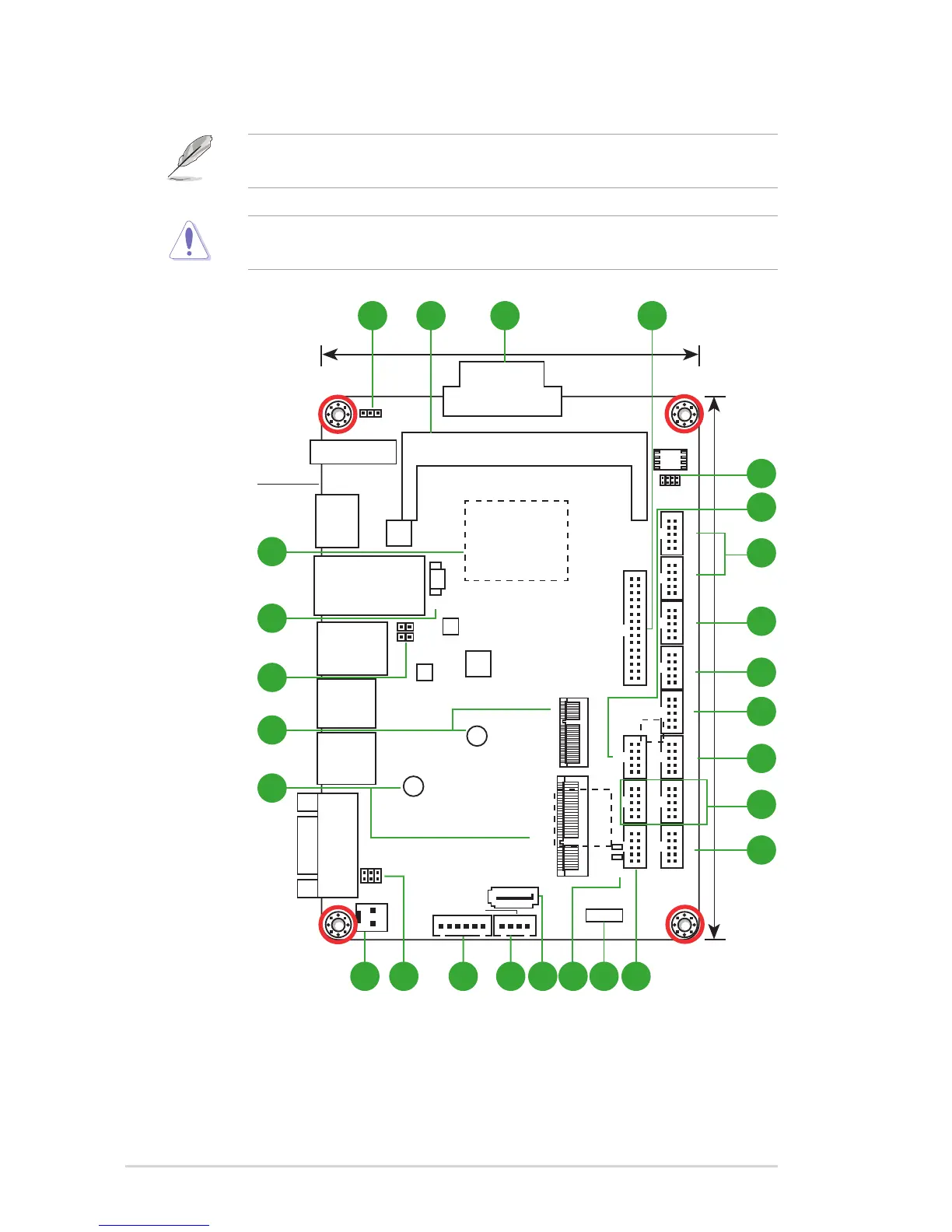

2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Placefourscrewsintotheholesindicatedbycirclestosecure
themotherboard to the chassis.
CAUTION!Donotovertightenthescrews!Doingsocandamagethe
motherboard.
