A-2
FAY-003

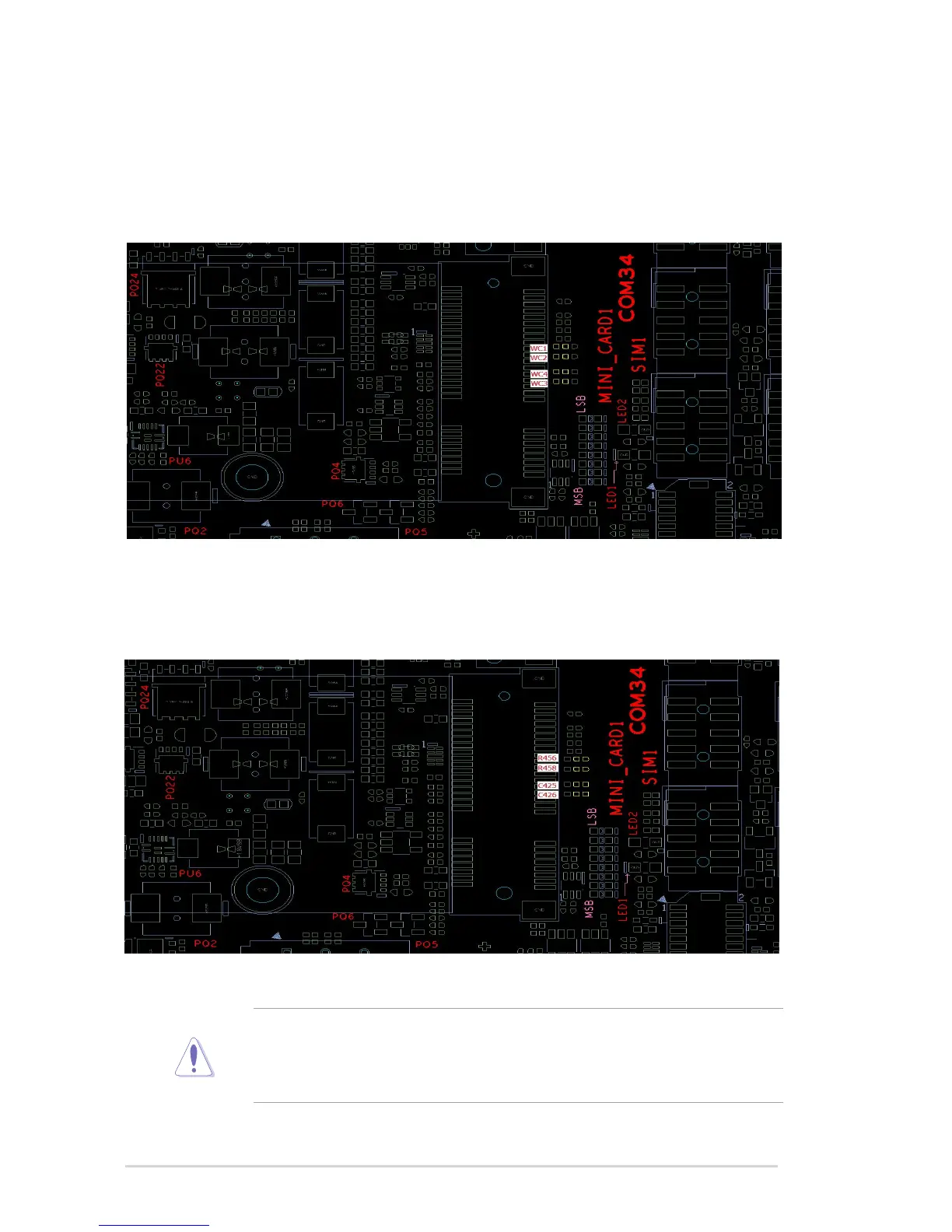

mSATA to MINIPCIE rework SOP
Remove
WC1,WC2,WC3,WC4 (11G232110302070 : MLCC 10NF/25V (0402) X7R 5%)
ADD
R456,R458 (10G212000004020 : RES 0 OHM 1/16W(0402)JUMP 5%)
C425,C426 (11G232110411150 : MLCC 0.1UF/16V(0402) X7R 10%)
NOTE: faytech strongly urges you not to attempt any modifications by
yourself as it will lead to the termination of the warranty of the product
and may damage the product itself.
