5. STARTING UP THE DISPENSER
5.1 Leak Check and Prime
1
Remove the side panels by loosening the two screws located at the bottom of the
panel and then lifting o the frame.
2
Remove the drip tray by lifting up and pulling away, then remove access panel to expose the
solution modules.
3 Connect the BIB connectors to the syrup BIBs.
4
Turn on the water and the gas supplies. Ensure both are owing to the dispenser.
Note: The water and syrup pumps will activate loudly until the lines are pressurized.
5 Thoroughly check for leaks at all connections.
6
Install a 1/4” ID tube on the sample port shown in Figure 5.1. Check that the water and syrup
shutos are on (as shown in Figure 5.2) and then open the sample valve and collect the water/
syrup in a cup. Continue to prime until syrup ow has been established and all air has been removed
from the lines. Discard the samples. Repeat for all barrels.

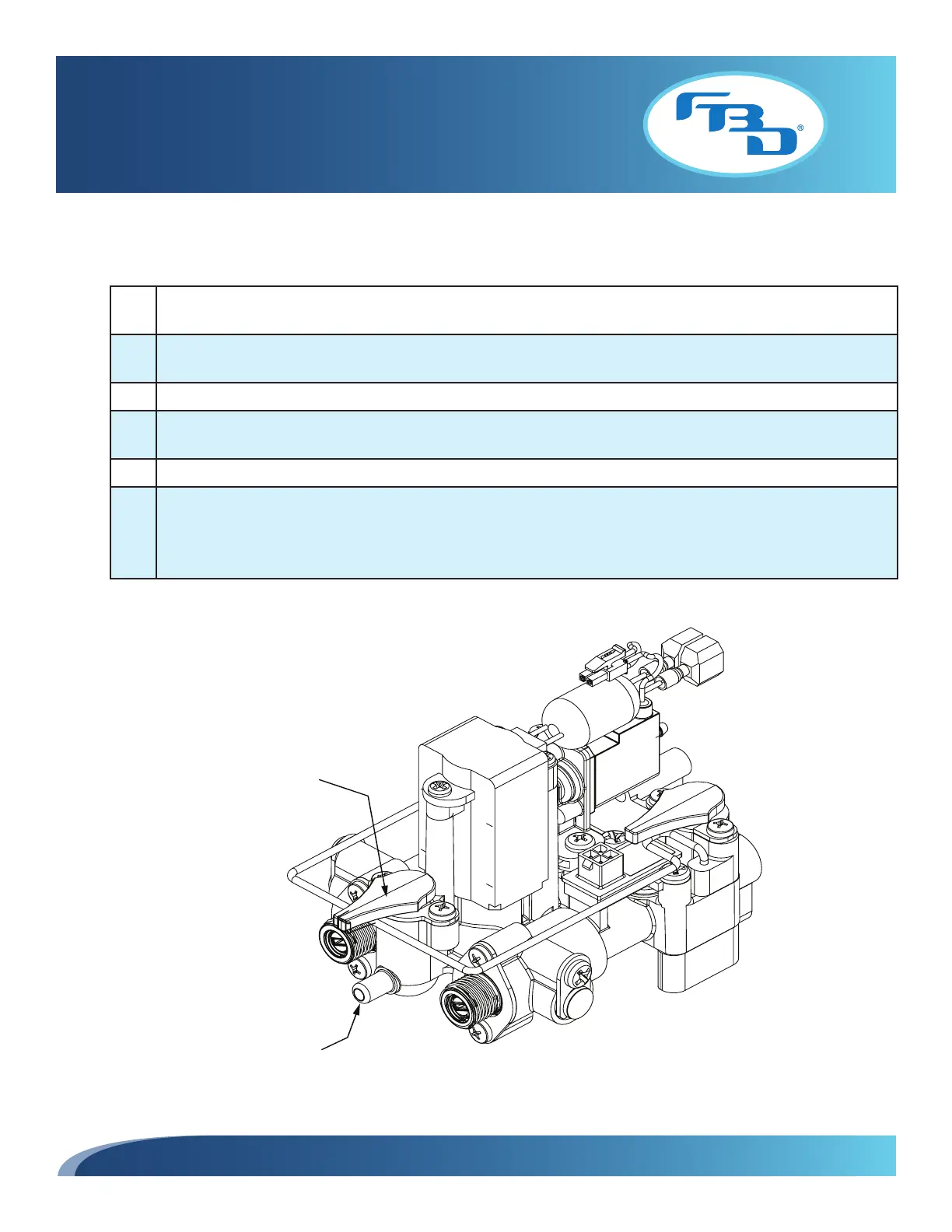

Sample Valve
(shown open)
Sample Port
(tube not shown)
Figure 5.1 Sample Valve on Solution Module
