37X INSTALLATION & OPERATION MANUAL
372/373 MODELS
23

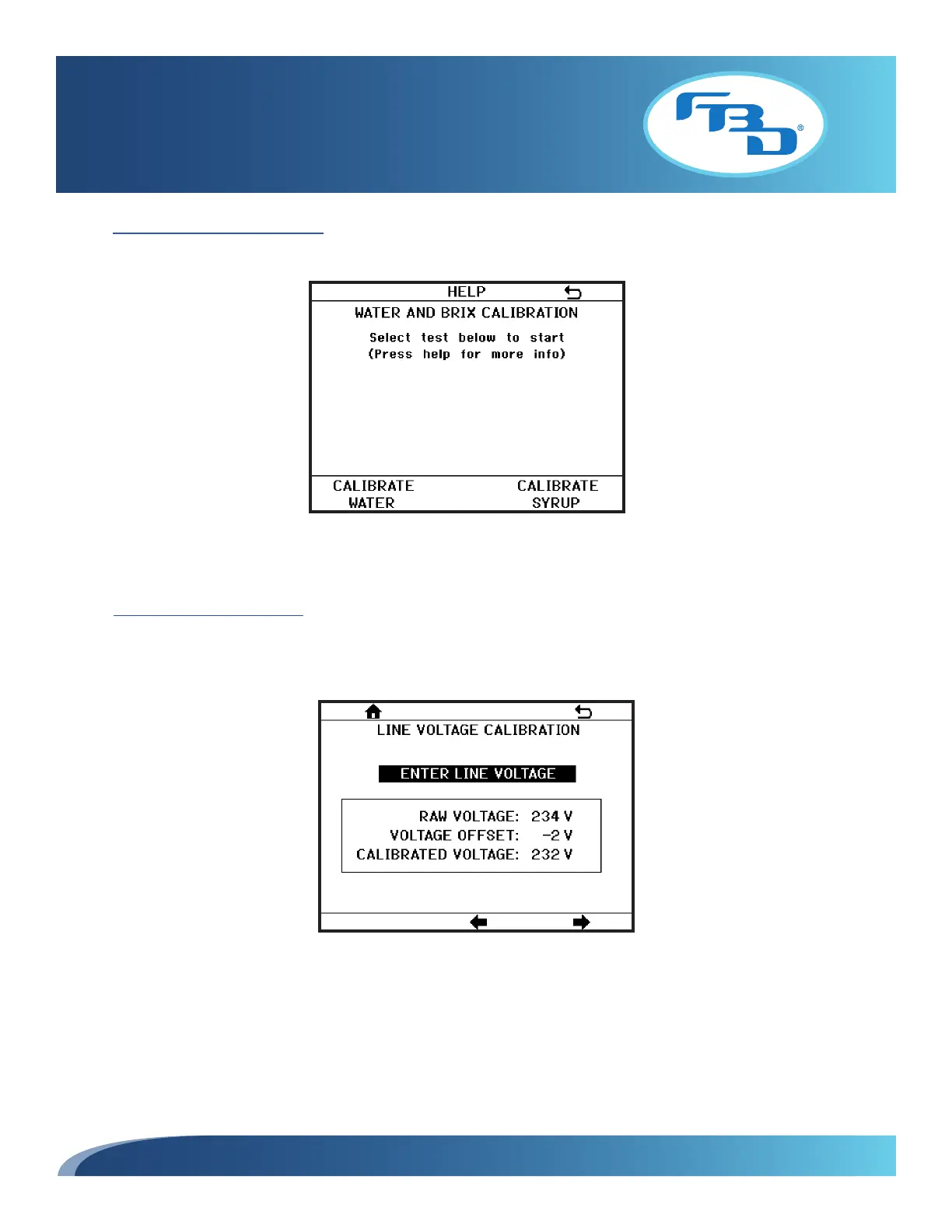

WATER AND BRIX CALIBRATION (Figure 7.13) – Provides a step-by-step process for calibrating the flow controls for the
solution modules. Images and instructions are provided in each step.
LINE VOLTAGE CALIBRATION (Figure 7.14) – Calculates the voltage offset. To use this function, first measure the line
voltage on the contactor with a voltmeter, then enter that value into the menu. Once entered, the dispenser will calculate
the voltage offset and correct the readout in the READOUTS menu.
Figure 7.13
Figure 7.14
