INSTALLATION & OPERATION MANUAL
MULTI-FLAVOR MERCHANDISERS
4

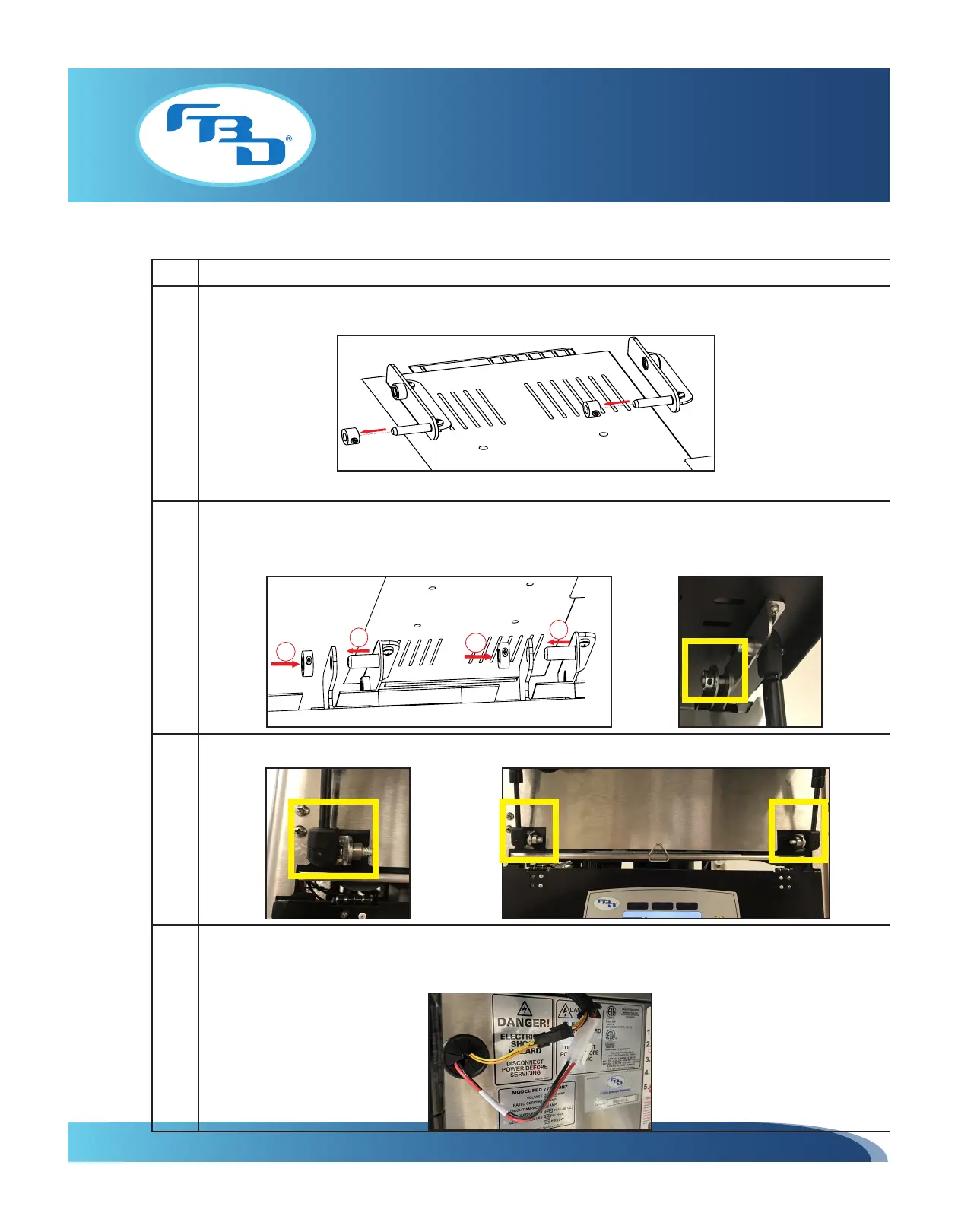

3.2 Installation of 771/772 Top-Opening Multi-Flavor Merchandiser
1 Remove the merchandiser from the packaging and inspect it for damage or missing parts.
2 Remove the collar from each of the brackets on the merchandiser with a 3/32" hex wrench. Place the collars
and wrench nearby so they are accessible for the next step.
3 As shown in figure below: (A) slide each of the hinge pins from the merchandiser into the pivot holes on the
upper brackets on the dispenser (from right to left); (B) place the collars back on the hinge pins and tighten
the set screw on each of the shaft collars with the hex wrench.
4 Snap the shocks securely onto the ball joints on the front of the dispenser.
5 Connect the power and serial communication harnesses to their respective mate from the dispenser (black
connector to black connector, white connector to white connector). Slowly push the merchandiser down
into "closed" position.
