INSTALLATION FLT

Series FlexSwitch

6 Fluid Components International LLC

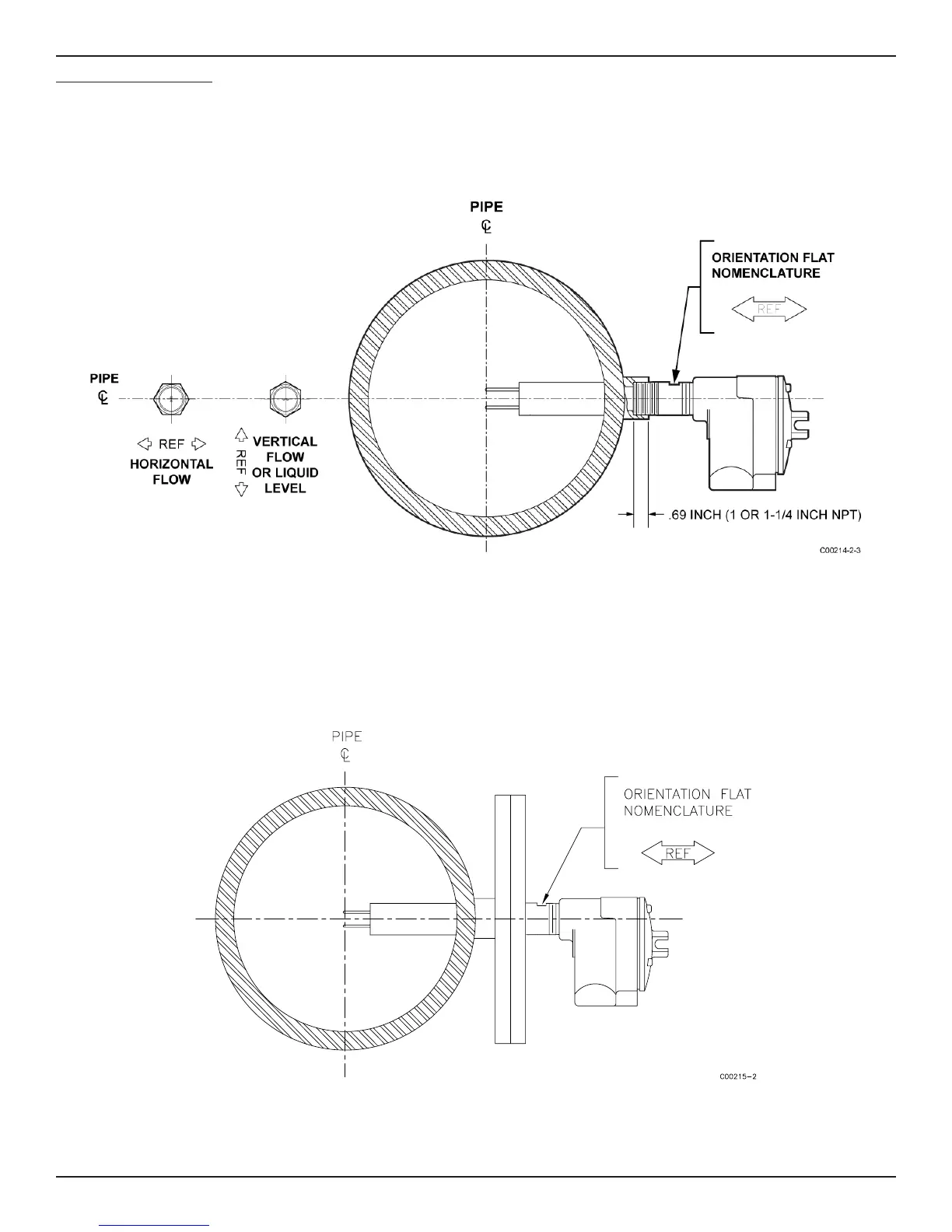

Figure 2-1 NPT Pipe Thread Mount

Figure 2-2 Flange Mount

Install the Sensing Element

Male NPT Mounting

When mounting the sensing element to the process pipe, it is important that a lubricant/sealant be applied to the male threads of all connec-

tions. Be sure to use a lubricant/sealant compatible with the process environment. All connections should be tightened ﬁrmly. To avoid leaks,

do not overtighten or cross-thread connections. See Figure 2-1 and the appropriate drawings in Appendix A for proper mounting.

Flange Mounting

For ﬂange mounted sensing elements, attach the process mating ﬂange with care. The correct orientation of the sensing element must be

maintained to ensure optimum performance or calibration. See Figure 2-2 and the appropriate drawings in Appendix A.
