Manual VEK MNE1 / VEK MNE2
18 09/2015 FEIG ELECTRONIC GmbH
GBR

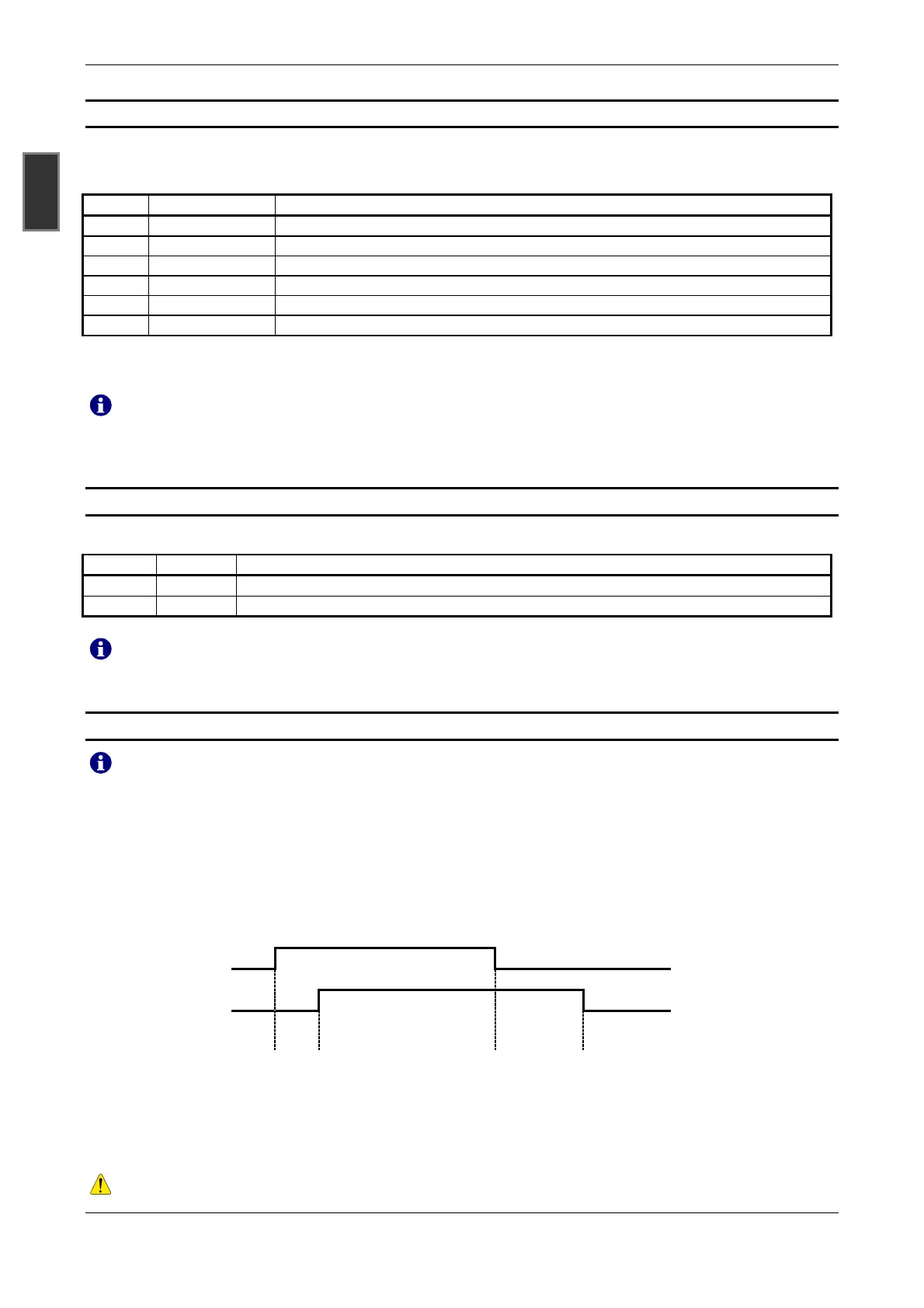

11.8 Loop/Output Assignment
Each output may be assigned to a loop channel or, when the direction detection is activated, a specific direc-
tion.
DIP USB Assignment of Hardware Output
None No loop channel or direction has been assigned or output inactive
Channel 1
1
Loop channel 1 assigned (Factory default for output 1)
Channel 2
1
Loop channel 2 assigned (Factory default for output 2)
Direction A
2
Output controlled by direction of travel A (Factory default for output 1)
Direction B
2
Output controlled by direction of travel B (Factory default for output 2)
Direction A&B
2
Output is controlled for both directions
1
Valid only for presence detection with the direction detection switched off!
2
Valid only when direction detection was activated!
The assignment of the loop channels to the hardware outputs can only be changed via the service pro-
gram!
11.9 Pulse Timing Edge
The following signal shapes may be selected for the outputs if you have set the outputs to pulse output. :
DIP USB Pulse output
OFF Entry
When covering the loop (factory defaults)
ON Leave When the loop is free
The default setting for the pulse duration is 200 ms. It can be changed in 100 ms steps in the service
program Detector Tool.
11.10 Timing of Output Signals (On Delay, Off Delay, min. Duration)
The timing properties of the output signals can only be changed with the service program!
For the hardware-based output signals the on delay, minimum duration and the off delay can be adjusted
over the range 0-25500 ms in 100 ms steps.
Factory defaults: On Delay 0 ms
Off Delay 0 ms
min. Duration 200 ms
Loop coverage
Output signal
t
on
t
d
≥ t
dmin
t
off
t
on
: On Delay
t
off
: Off Delay
t
dmin
: Min. Duration
t
d
: Signal duration
If the loop is free before the ON delay has expired, there is no signal output!
