10 Elements on the Front
1 2 3 4 65 7 8
ON
1 2 3 4
ON
1 2 3 4 65 7 8
ON

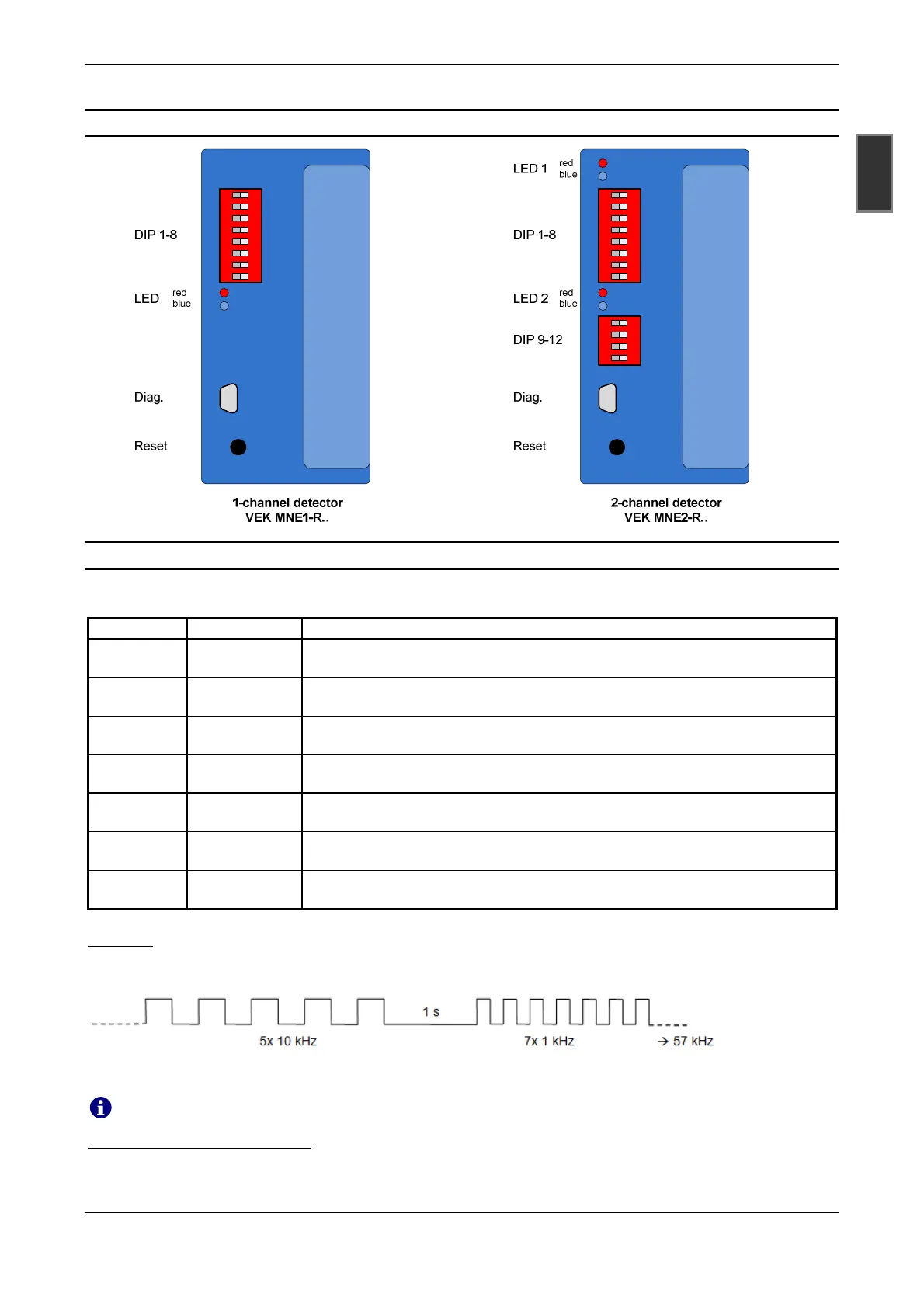

10.1 LED Display
The front of the detector has 2 LEDs to indicate the detector status of each loop channel.
LED red LED blue Description
off off Supply voltage missing
off an Loop free, detector ready
an an Object detected on loop
an off Loop failure
- flashes, 5 Hz Frequency alignment running
- flashes, 1 Hz
Loop failure repaired or overwritten setting
*
flashes flashes Frequency output after alignment (see example)
Example: Frequency output via LED for 57 kHz:
Tens digits Units
The frequency output for loop channels 1 and 2 is sequential.
*
Indication, that the detector is operational again after a previously resolved loop failure.
†
Change(s) by the service program of one or more settings via the USB interface
