Bandsaw
FB 540/640/740/840/940
Model - Model FB 540 FB 640 FB 740 FB 840 FB 940
L min. mm 4190 4730 5340 6000 6610
L Max. mm 4260 4800 5420 6110 6710
Belt thickness 0,5 0,6 0,7 0,8 0,9
7.4 Applications
Operation
Selecting the type of saw blade and its width, depends
on the material to be cut and the type of cut:
• Narrow saw blades are designed for curved and
circular cuts, whereas wide saw blades are desi-
gned for straight cuts.
• A fine-toothed saw blade is required for hard
wood, whereas a coarse-toothed saw blade is
required for soft wood.
The gap between the individual teeth should be large
enough to carry the material chips and to throw them
away. If the gap is too small, the blade will overheat
and rupture.
7.4.1 Blade selection and maintenance
Do not use kinked, ruptured or bent saw blades.
For soft wood, the set should be a max. of twice the
thickness of the saw blade and for hard wood, a max. of
1.5 times the thickness of the saw blade.
Change blunt blades and have them sharpened by a
specialist workshop or purchase a new saw blade.
It is recommended to use only high quality saw blades.
The following saw blades may be used:
Art. No. Blade width Tooth spacing
!Blade width
"Radius cut
#Tooth spacing

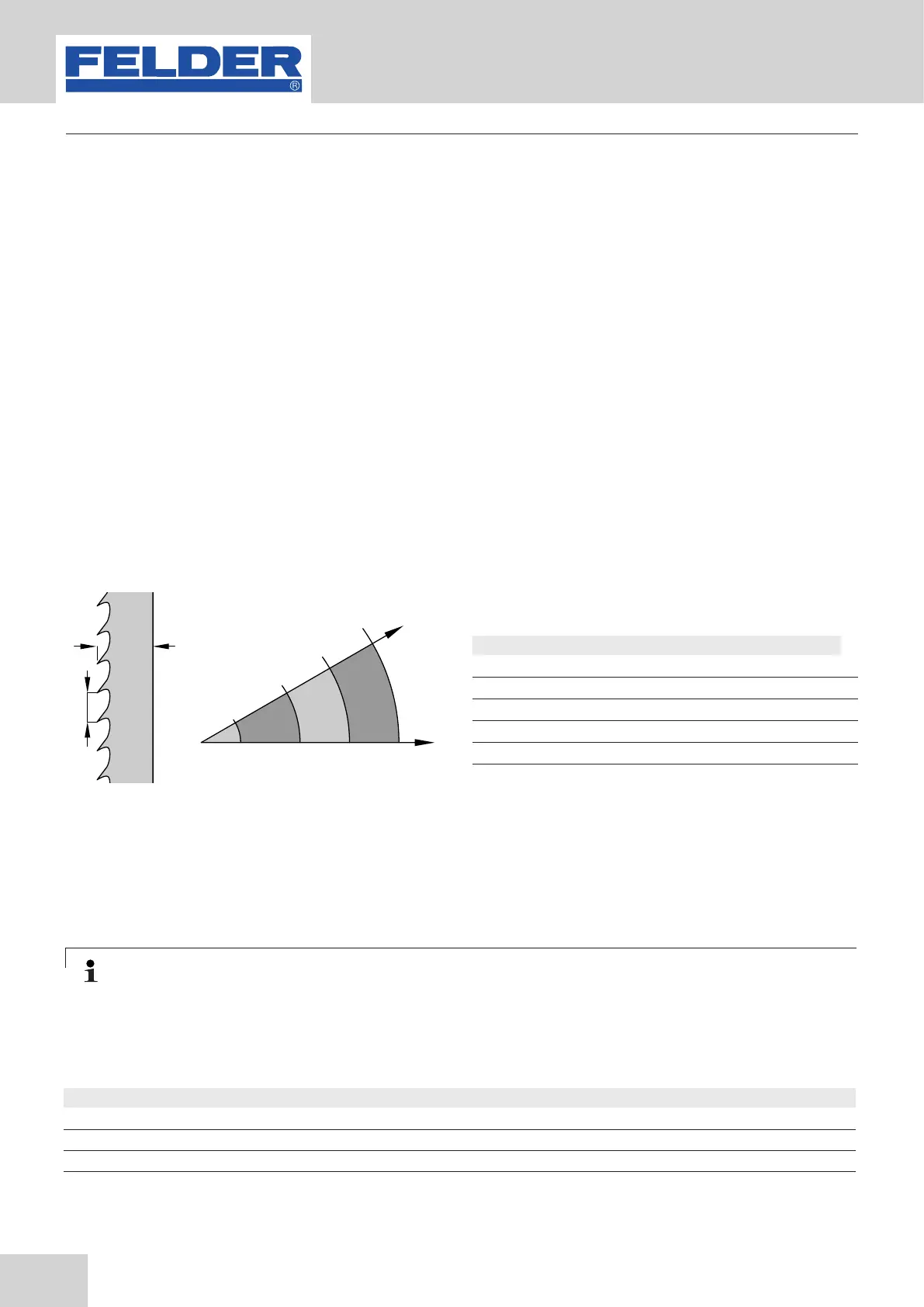

Fig. 17: Saw blades
Attention!: Once the machine is no longer in use, loosen the belt tension and place an appropriate
warning sign on the machine. This will thus prevent damage to the wearing surface of the wheels.
13.7.6110 10 mm 6,4 mm
13.7.6115 16 mm 6,4 mm
13.7.6120 19 mm 8,5 mm
13.7.6125 25 mm 8,5 mm
13.7.6130 31 mm 8,5 mm
