Fellowes Powershred Series User Manual

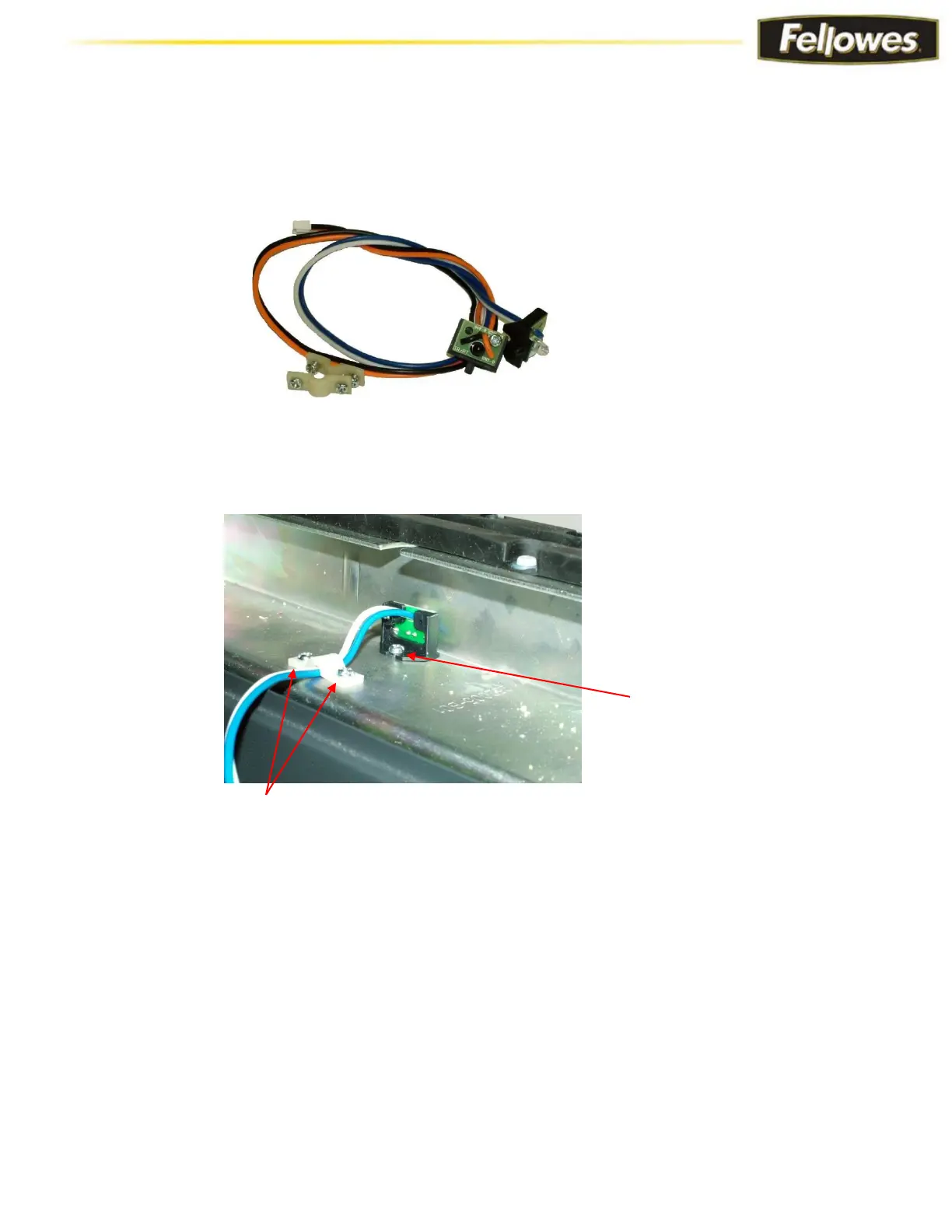

Auto Start Paper I/R & CD I/R Sensors
• The Auto Start I/R sensors are secured to the metal cutter shroud.
• The CD I/R sensors are secured to the CD in-feed section of the housing cover.
• These sensors connect to the control panel PC board on the housing cover.
To replace the paper feed sensors:
1. Disconnect the paper sensor connector from the control panel PC board on the
housing cover.
2. Remove screws securing sensor bracket and wires to metal shroud.
3. Insert new sensors with brackets, secure them in place, and reconnect sensor plug
to PC board.

Fellowes Powershred Series Specifications

General

Auto Start/Stop	Yes
Overload Protection	Yes
Shred Type	Cross-Cut
Security Level	P-4
Throat Width	9 inches
Can Shred	Paper, Credit Cards, Staples
Shred Capacity	12-18 sheets
Cool Down Time	30 minutes
Sheet Width	9 inches
Bin Capacity	6 gallons
Noise Level	70 dB
