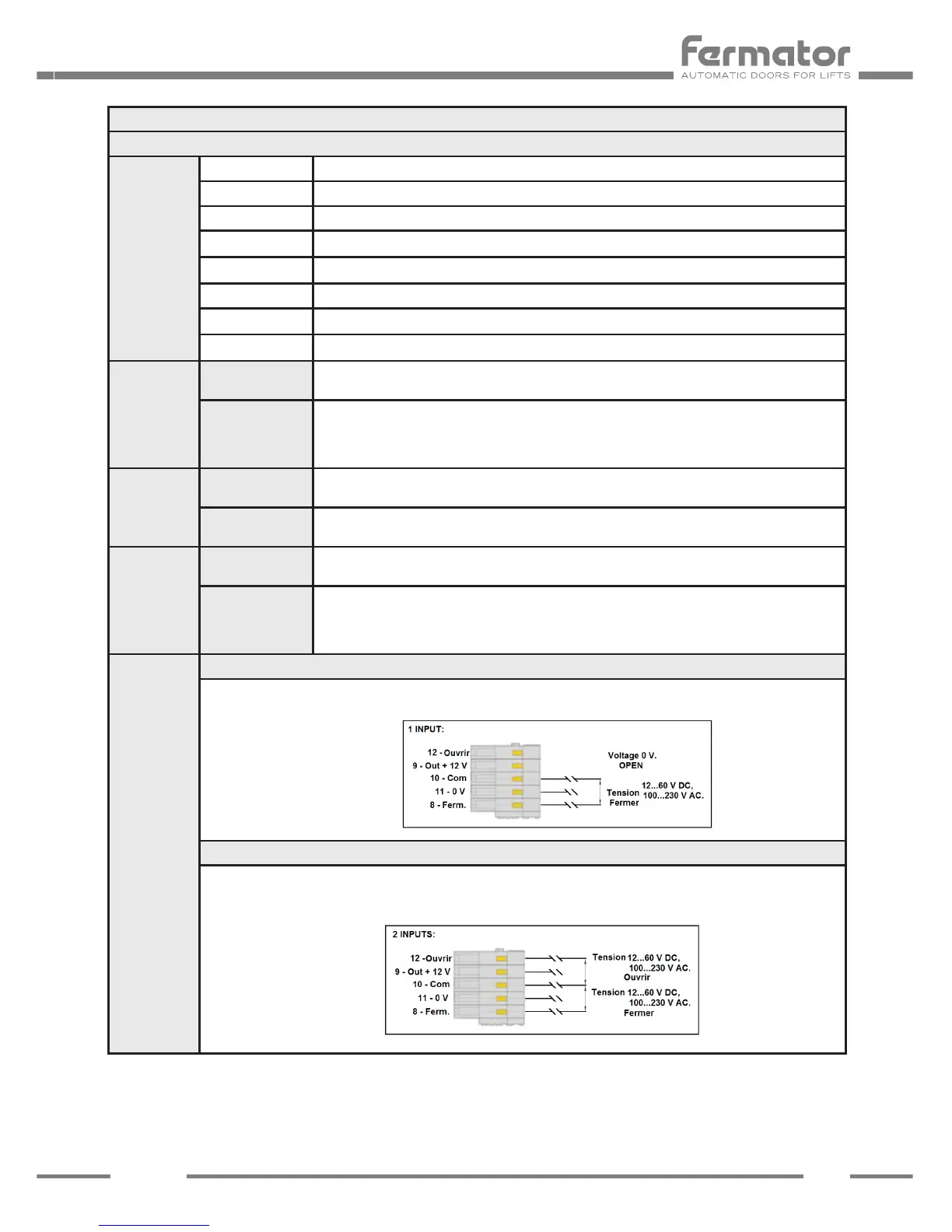

PROGRAMMING MENU
Program Options
Options basic
Door Model T1 Automatic horizontal sliding door 1 panel side opening.
T2 Automatic horizontal sliding door 2 panel side opening.
T3 Automatic horizontal sliding door 3 panel side opening.
T4 Automatic horizontal sliding door 4 panel side opening.
C2 Automatic horizontal sliding door 2 panel centre opening.
C4 Automatic horizontal sliding door 4 panel centre opening.
C6 Automatic horizontal sliding door 6 panel centre opening.
C8 Automatic horizontal sliding door 8 panel centre opening.
Control Master The unit will execute the instructions directly. Example: photocell activation will cause the doors to
re-open immediately without control of the lift controller.
Slave There is no automatic reopen movements. The doors will only react to instruction given by the
main lift controller. Example: with the Reopen activated the unit will send a signal to the main lift
controller via the Reopen output (36, 37, 38). Then, the main lift controller must remove the close
signal and active the open signal.
Landing Door Automatic Operators with Clutch (automatic landing door). In this case a special movement is made for
locking and unlocking the Clutch.
Semiautomatic Operators without Clutch (Semiautomatic landing door).
Rotation
Sense
Clockwise (CW) During the opening movement the motor will rotate clockwise.
Counterclockwise
(CCW)
During the opening movement the motor will rotate counterclockwise.
Inputs 1 Input
The unit will be controlled by a single input. Any voltage between 12 V DC to 60 V DC or 100 V AC to 230 V AC applied
between terminals 8 & 10 will close the doors. Without input active the door remains opened. Open input is not used.
2 Inputs
The unit will be controlled by two independent inputs. Any voltage between 12 V DC to 60 V DC or 100 V AC to 230 V AC
applied between terminals 8 & 10 will cause the doors to close. And between terminals 10 & 12 will cause the doors to
open. In the absence of a signal, the doors will remain static. If both inputs are applied then the open signal has priority.
