Kit5000_GB-A

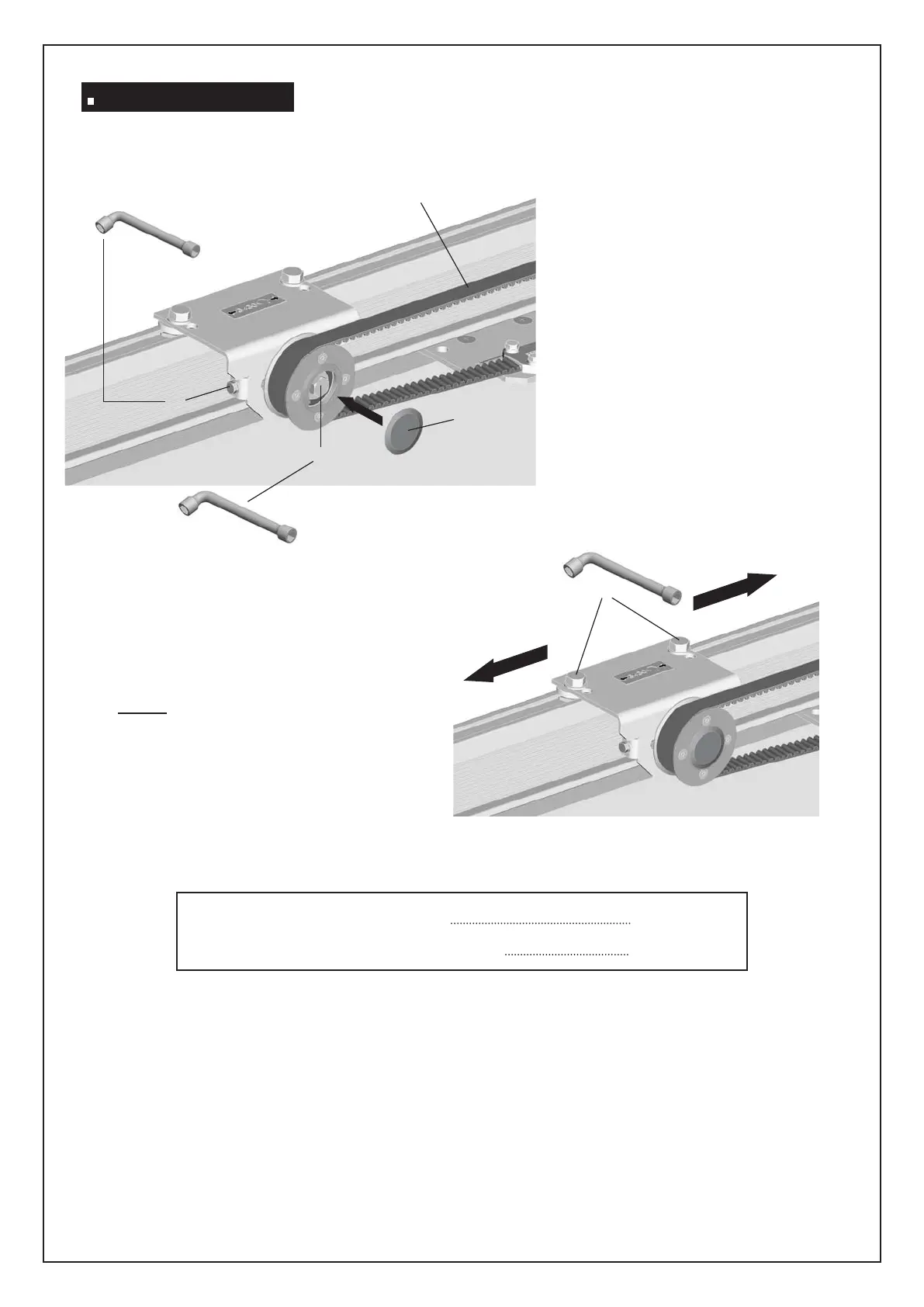

Tighten the belt
- 14 -
1 - Remove cover (A) with a screw-
driver
2 - Loosen screw (B) of about 1/4turn
3 - Tighten the screw (C) of the belt
adjuster to tighten the belt: the
upper strand (D) must be horizontal.
4 - When the belt is tensioned, block
the screw (B) .
5 - Mount cover (A).
Nota :
The belt adjuster may be moved
laterally as necessary.
13
10
C
B
A
17
D
PASSIVE EDGEMOUNT SECURITY Voir page 31
COMMAND BOX/WIRING/PARAMETERS Voir page 32
