FERMOD KIT 5000 - Belt Adjuster

Kit5000_GB-A
BELT ADJUSTER
7.1
3430
3530
7530

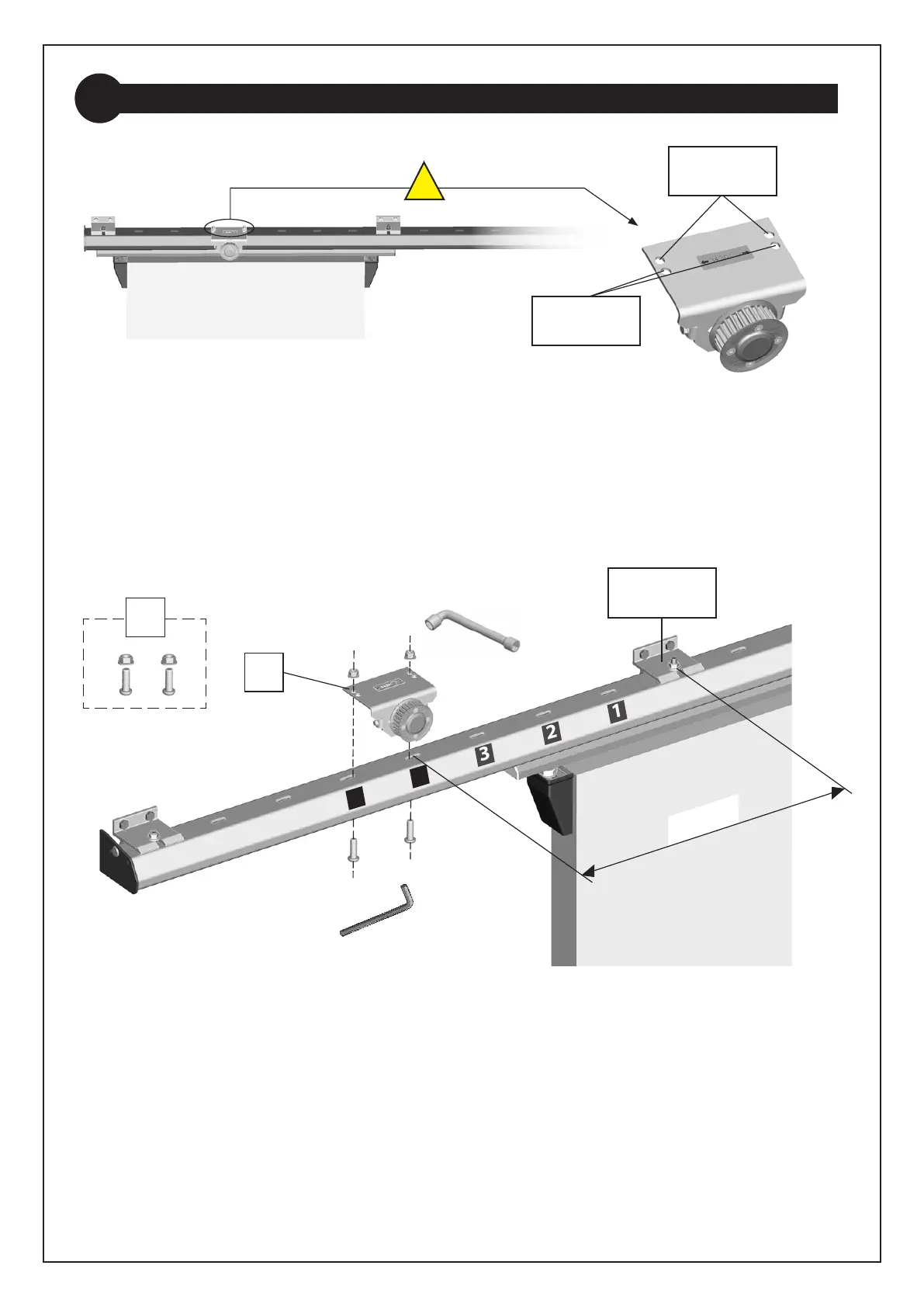

1 - Insert the 2 screws from small bag (M3) into 2 slots of the rail:
600mm (4th and 5th slot) to central bracket (see drawing below).
2 - Fix the belt adjuster (M1) on the top of the rail.
Block the 2 screws.
- 16 -
!
8
M3
13
1
2
3
4
5
Central
bracket
M1
600
